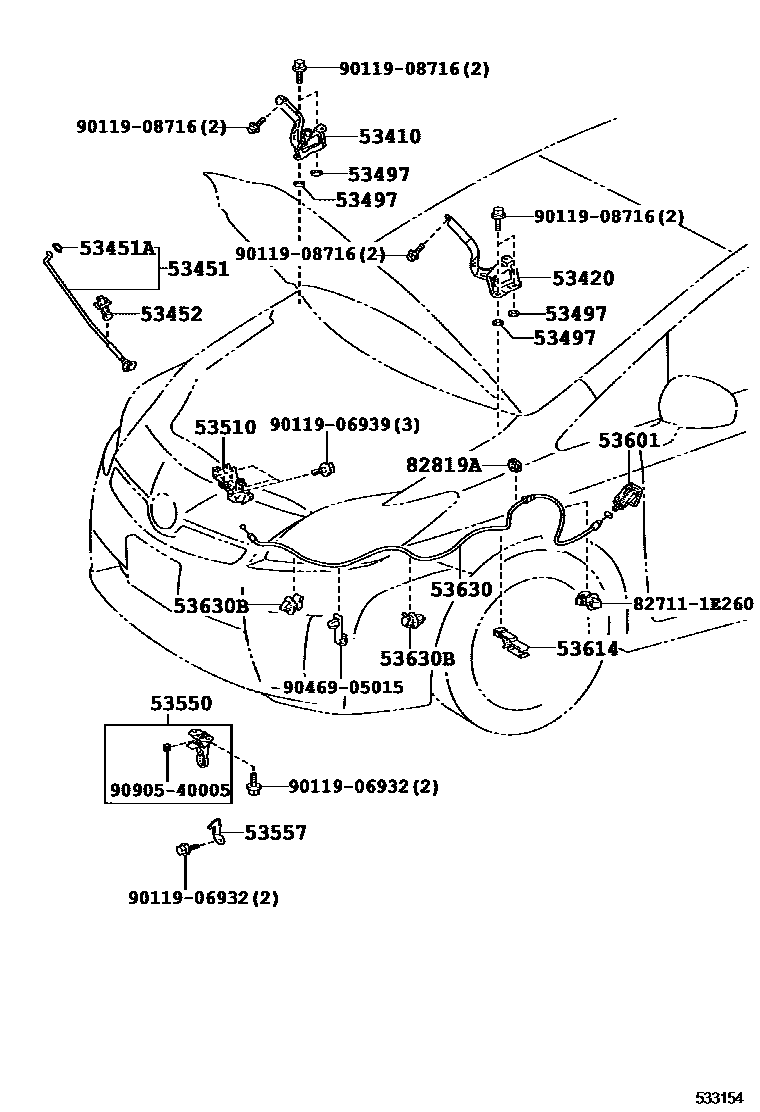

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-47070iZVW35200912

53420HINGE ASSY, HOOD, LH

main53420-47070iZVW35200912

53451ROD, HOOD SUPPORT

main53440-47031iZVW35200912

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iZVW35200912

53452HOLDER, HOOD STAY

main53452-47010iZVW35200912

53497PAD, HOOD HINGE, NO.1

main53497-20070iZVW35200912

T=2.0

main53497-42010iZVW35200912

T=0.5

53510LOCK ASSY, HOOD

main53510-47100iZVW35200912

sub53510-47101

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-47010iZVW35200912-201102

sub53550-47011

53557CATCH, HOOD AUXILIARY HOOK

main53557-47010iZVW35200912

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-G1iZVW35200912

AQUA,TRIM6#

sub53601-52010

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-47030iZVW35200912

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-47040iZVW35..LHD200912

main53630-47050iZVW35..RHD200912

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iZVW35200912

82819AGROMMET, WIRE

main82817-47G30iZVW35200912-201101

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9011906932

main90119-06932

9011906939

main90119-06939

9011908716

main90119-08716

9046905015

main90469-05015

9090540005

main90905-40005

20 parts on this diagram · 2 diagrams in section
