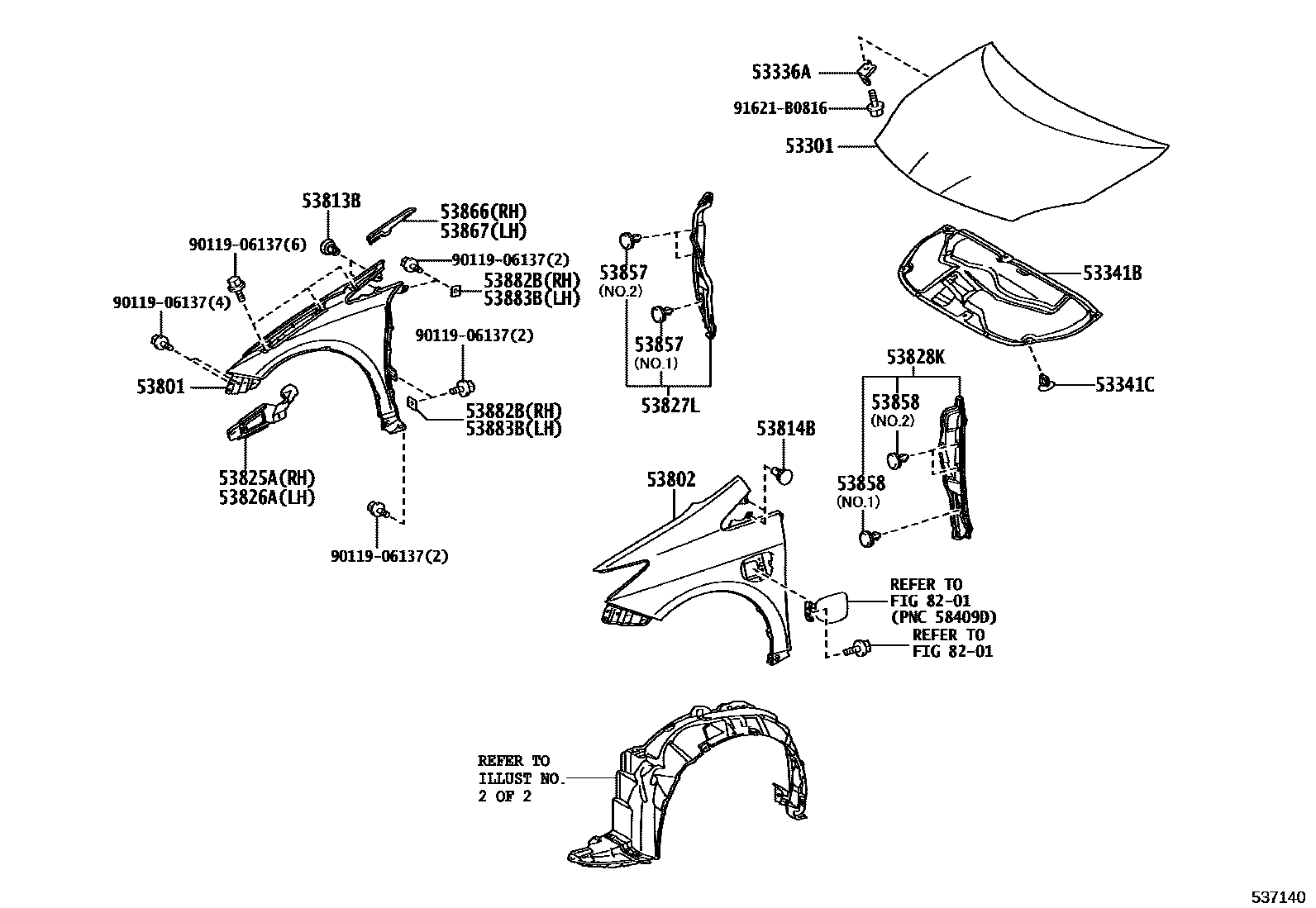

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-47060iZVW35¥60,000200912-201010

53336ABRACKET, HOOD STAY

main53336-47010iZVW35¥270200912

53341BINSULATOR, HOOD

main53341-47020iZVW35¥10,800200912

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZVW35¥120200912

53801FENDER SUB-ASSY, FRONT RH

main53801-47050iZVW35¥39,800200912-201010

53802FENDER SUB-ASSY, FRONT LH

main53802-47060iZVW35¥39,800200912-201010

53813BEXTENSION, FRONT FENDER, RH

main53813-28090iZVW35¥260200912-201003

sub53813-48011¥80

main53813-48011iZVW35¥80201004

53814BEXTENSION, FRONT FENDER, LH

main53813-28090iZVW35¥260200912-201003

sub53813-48011¥80

main53813-48011iZVW35¥80201004

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-47010iZVW35¥1,750200912

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-47010iZVW35¥1,750200912

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-47030iZVW35¥4,330200912

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-47040iZVW35¥3,560200912

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iZVW35¥60200912

NO.1

main53857-47020iZVW35¥70200912

NO.2

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iZVW35¥60200912

NO.1

main53857-47020iZVW35¥70200912

NO.2

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-47020iZVW35¥590200912

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-47030iZVW35¥590200912

53882BSEAL, FRONT FENDER, RH

main53882-16030iZVW35¥60200912

53883BSEAL, FRONT FENDER, LH

main53882-16030iZVW35¥60200912

8201

9011906137

main90119-06137¥70

91621B0816

main91621-B0816¥90

21 parts on this diagram · 2 diagrams in section
