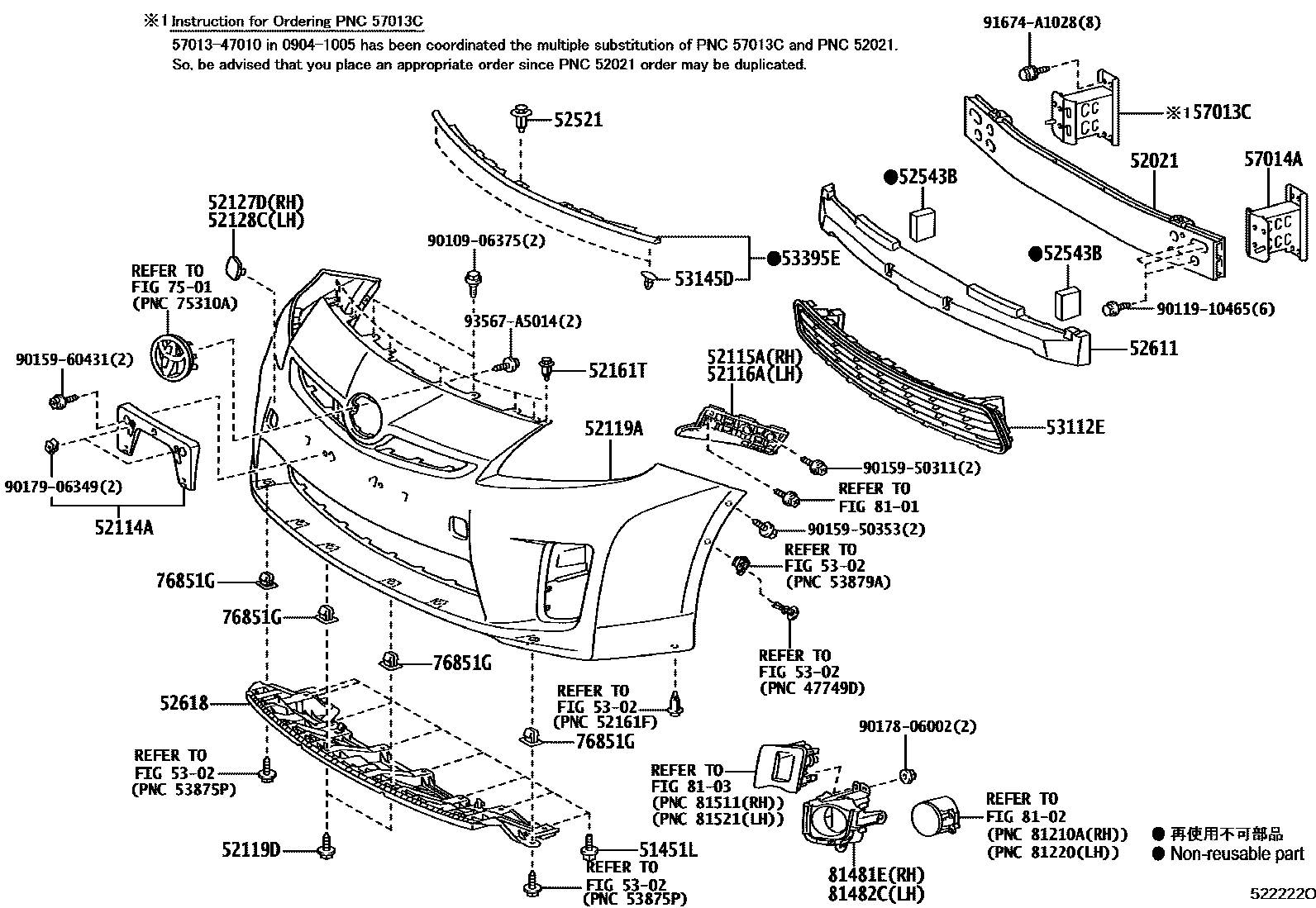

FRONT BUMPER & BUMPER STAY

51451LBOLT, NO.1

main90119-06767×8iZVW35200912-201010

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-47021iZVW35200912-201001

main52021-47022iZVW35201001-201005

main52021-47023iZVW35201005-201010

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-47080iZVW35200912

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-47020iZVW35200912

sub52115-47040

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-47020iZVW35200912

sub52116-47040

52119ACOVER, FRONT BUMPER

main52119-47913iZVW35200912

PAINT REQ.

52119DSCREW, NO.1

main90159-60488×2iZVW35200912-201010

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-47900iZVW35200912

52128CCOVER, FRONT BUMPER HOLE, LH

main52128-47900iZVW35200912

52161TPIECE, FRONT BUMPER

main52161-16010×8iZVW35200912-201010

sub52161-0K040

52521RETAINER, FRONT BUMPER, UPPER CENTER

main90467-05063-C0iZVW35200912

BLACK

52543BSEAL, FRONT BUMPER

main52543-47020×2iZVW35200912

52611ABSORBER, FRONT BUMPER ENERGY

main52611-47040iZVW35200912

52618ABSORBER, FRONT BUMPER, LOWER

main52618-47010iZVW35200912-201010

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-47040iZVW35200912

NO PAINT REQ.

53145DCLIP, RADIATOR GRILLE

main53145-60030×2iZVW35200912

53395ESEAL, HOOD TO FRONT END PANEL

main53395-47020iZVW35200912

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-47010iZVW35200912-201005

main57013-47030iZVW35201005

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-47030iZVW35200912

7501

76851GGROMMET, SCREW, NO.1

main90189-06193×4iZVW35200912-201010

8101

8102

8103

81481ECOVER, FOG LAMP, RH

main81481-47020iZVW35200912

sub81481-47900

81482CCOVER, FOG LAMP, LH

main81482-47020iZVW35200912

sub81482-47900

9010906375

main90109-06375

9011910465

main90119-10465

9015950311

main90159-50311

9015950353

main90159-50353

9015960431

main90159-60431

9017806002

main90178-06002

9017906349

main90179-06349

91674A1028

main91674-A1028

93567A5014

main93567-A5014

36 parts on this diagram · 1 diagram in section
