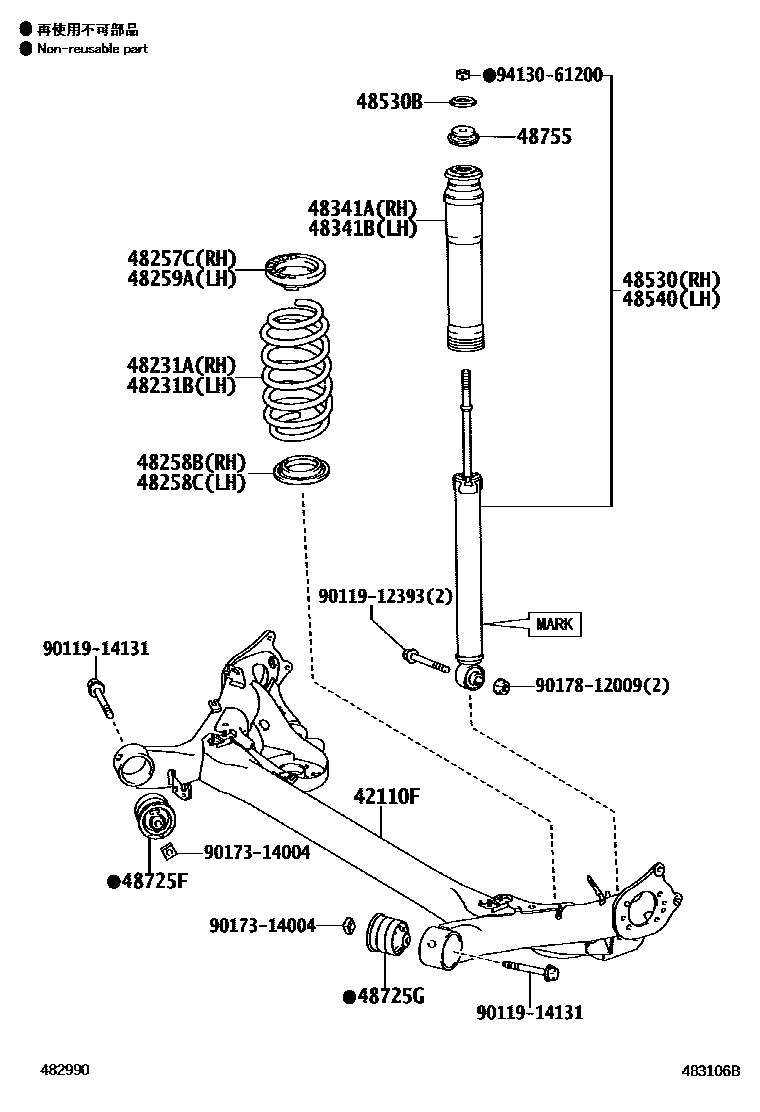

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42101-12171iZVW35200912

48231ASPRING, COIL, REAR RH

main48231-47240iZVW35200912

48231BSPRING, COIL, REAR LH

main48231-47240iZVW35200912

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iZVW35200912

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-52030iZVW35200912

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-52030iZVW35200912

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iZVW35200912

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-75010iZVW35200912

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-75010iZVW35200912

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80552iZVW35200912

MARK 48530-47170

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02159×2iZVW35200912

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80552iZVW35200912

MARK 48530-47170

48725FBUSH, REAR AXLE CARRIER, RH

main48725-47030iZVW35200912

48725GBUSH, REAR AXLE CARRIER, LH

main48725-47030iZVW35200912

48755SUPPORT, REAR SUSPENSION

main48755-12100×2iZVW35200912

9011912393

main90119-12393

9011914131

main90119-14131

9017314004

main90173-14004

9017812009

main90178-12009

9413061200

main94130-61200

20 parts on this diagram · 1 diagram in section
