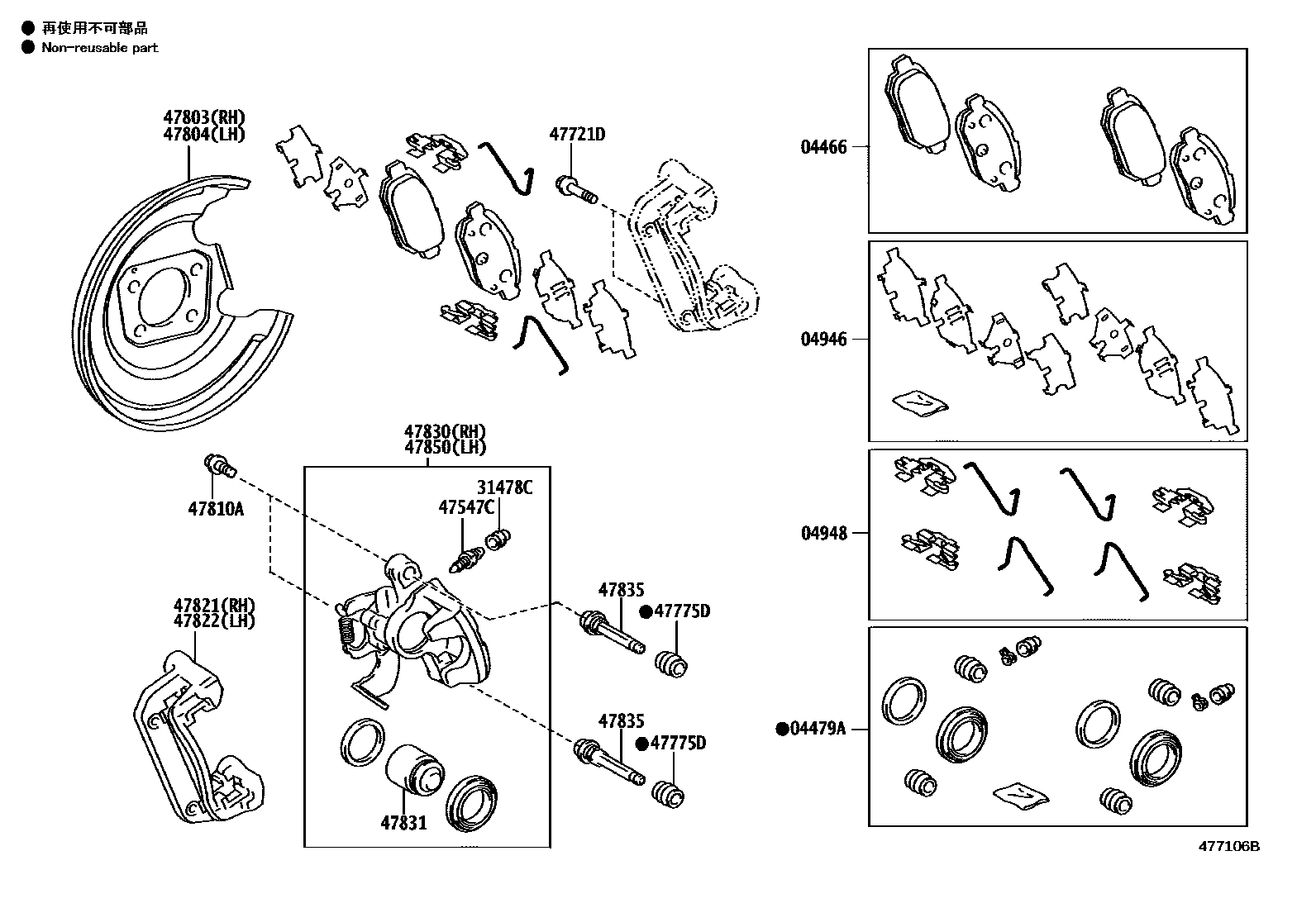

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-47020iZVW35200912-201009

MARK AK NS254

sub04466-47030

main04466-47030iZVW35201009-201010

MARK AK NS254

sub04466-76010

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12230iZVW35200912-201010

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-47070iZVW35200912-201010

04948FITTING KIT, DISC BRAKE, REAR

main04948-47010iZVW35200912-201010

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iZVW35200912-201010

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iZVW35200912-201010

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404iZVW35200912-201010

*10-1.25PX24-21.5

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iZVW35200912-201010

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-12071iZVW35200912

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-12071iZVW35200912

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102iZVW35200912-201010

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12151iZVW35200912-201010

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12151iZVW35200912-201010

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-12151iZVW35200912-201010

47831PISTON, REAR DISC BRAKE

main47831-52050iZVW35200912-201010

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150iZVW35200912-201010

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-12151iZVW35200912-201010

17 parts on this diagram · 1 diagram in section
