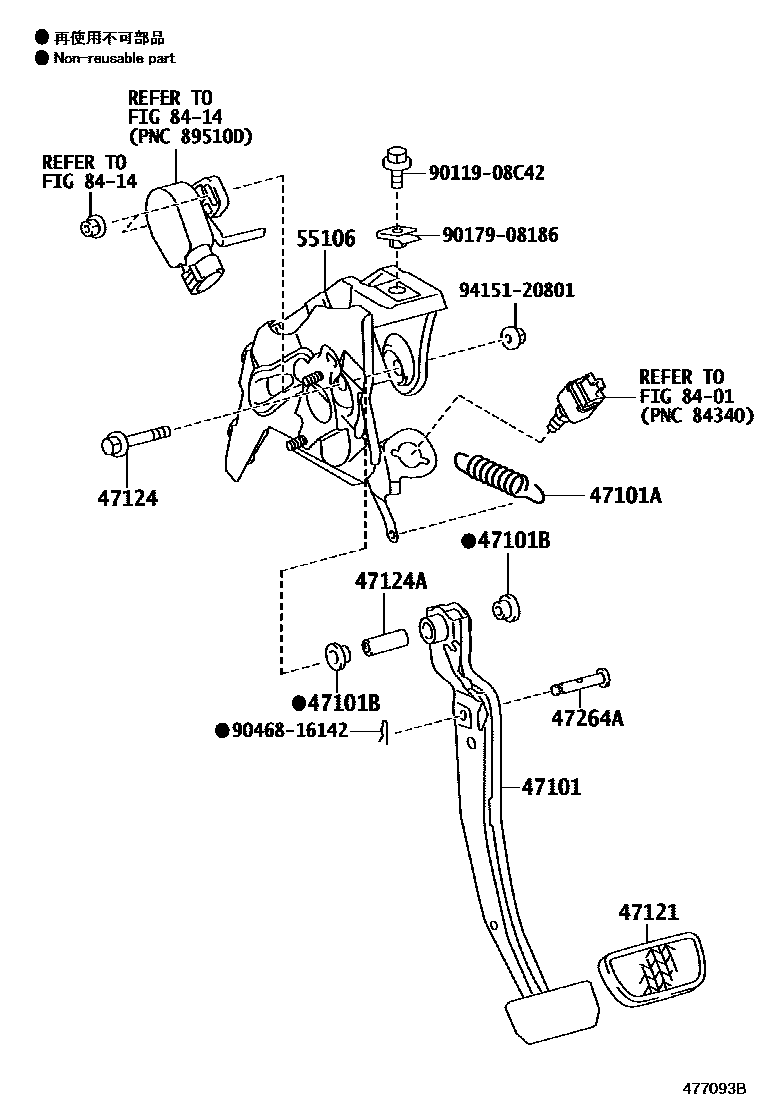

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-75011iZVW35..RHD200912-201010

main47101-75021iZVW35..LHD200912-201010

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14050iZVW35200912

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZVW35200912

47121PAD, BRAKE PEDAL

main47121-42010iZVW35200912

47124SHAFT, BRAKE PEDAL

main47124-47010iZVW35200912

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-47010iZVW35200912

47264APIN(FOR PUSH ROD)

main47148-47020iZVW35200912

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-75011iZVW35..RHD200912-201103

main55106-75021iZVW35..LHD200912-201103

8401

8414

9011908C42

main90119-08C42

9017908186

main90179-08186

9046816142

main90468-16142

9415120801

main94151-20801

14 parts on this diagram · 2 diagrams in section
