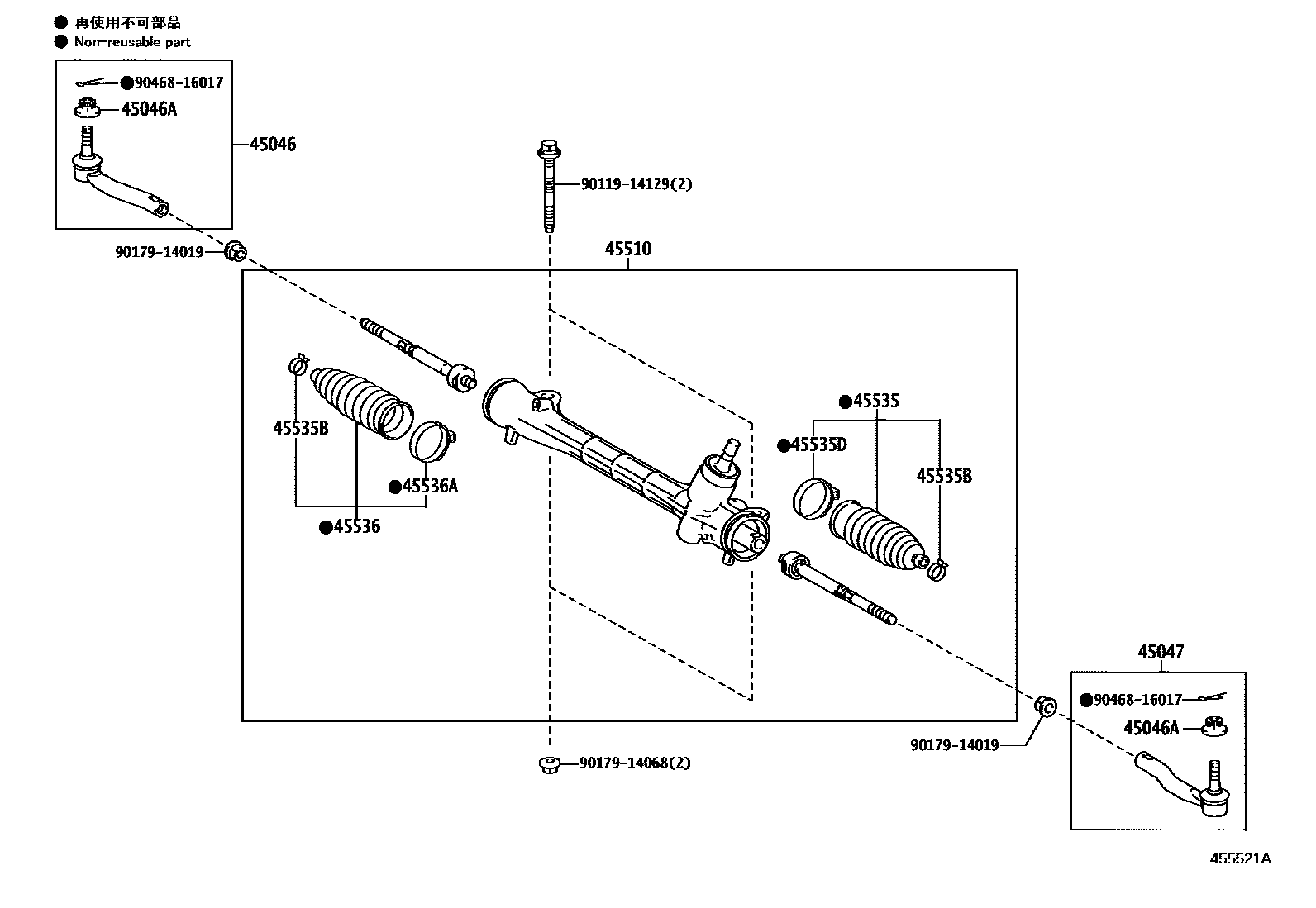

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-49225iZVW35200912

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12014iZVW35200912

45047END SUB-ASSY, TIE ROD, LH

main45047-49165iZVW35200912

45510GEAR ASSY, STEERING

main45510-47050iZVW35..LHD200912

main45510-47070iZVW35..RHD200912

45535BOOT, STEERING RACK, NO.1

main45535-49015iZVW35200912

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iZVW35200912

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-47010iZVW35200912

45536BOOT, STEERING RACK, NO.2

main45535-49015iZVW35200912

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-47010iZVW35200912

9011914129

main90119-14129

9017914019

main90179-14019

9017914068

main90179-14068

9046816017

main90468-16017

13 parts on this diagram · 2 diagrams in section
