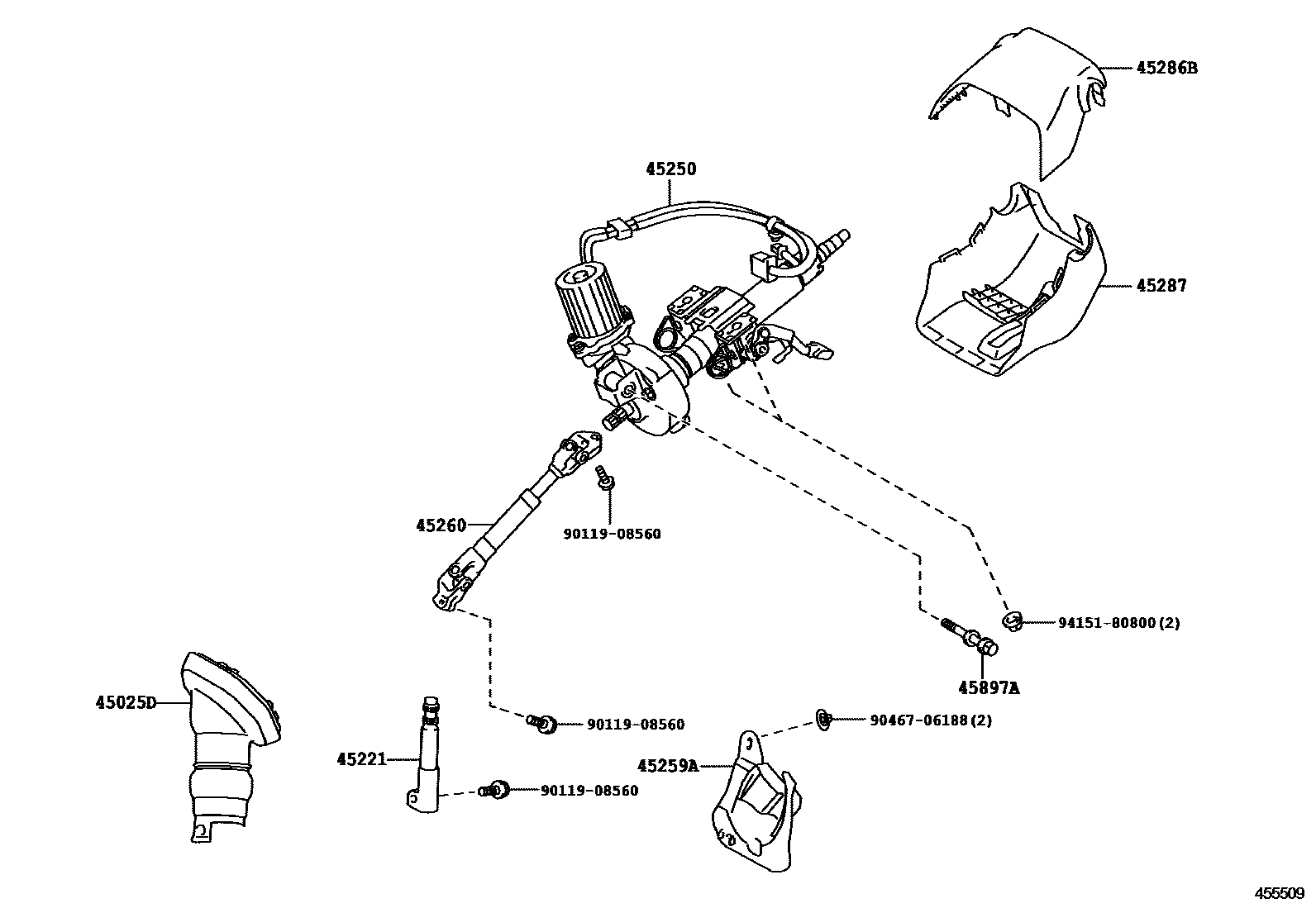

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12280iZVW35..RHD200912

main45025-12300iZVW35..LHD200912

45221SHAFT, STEERING INTERMEDIATE

main45221-12330iZVW35200912

45250COLUMN ASSY, STEERING

main45250-47230iZVW35..LHD200912

main45250-47250iZVW35..RHD200912

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12050iZVW35..RHD200912

main45259-47030iZVW35..LHD200912

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-47060iZVW35200912

sub45260-12710

45286BCOVER, STEERING COLUMN, UPR

main45286-47040-B0iZVW35200912

MIST GRAY,TRIM6#

sub45286-47040

45287COVER, STEERING COLUMN, LWR

main45287-12590-B1iZVW35200912

MIST GRAY,TRIM6#

sub45287-47090

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iZVW35200912

9011908560

main90119-08560

9046706188

main90467-06188

9415180800

main94151-80800

11 parts on this diagram · 2 diagrams in section
