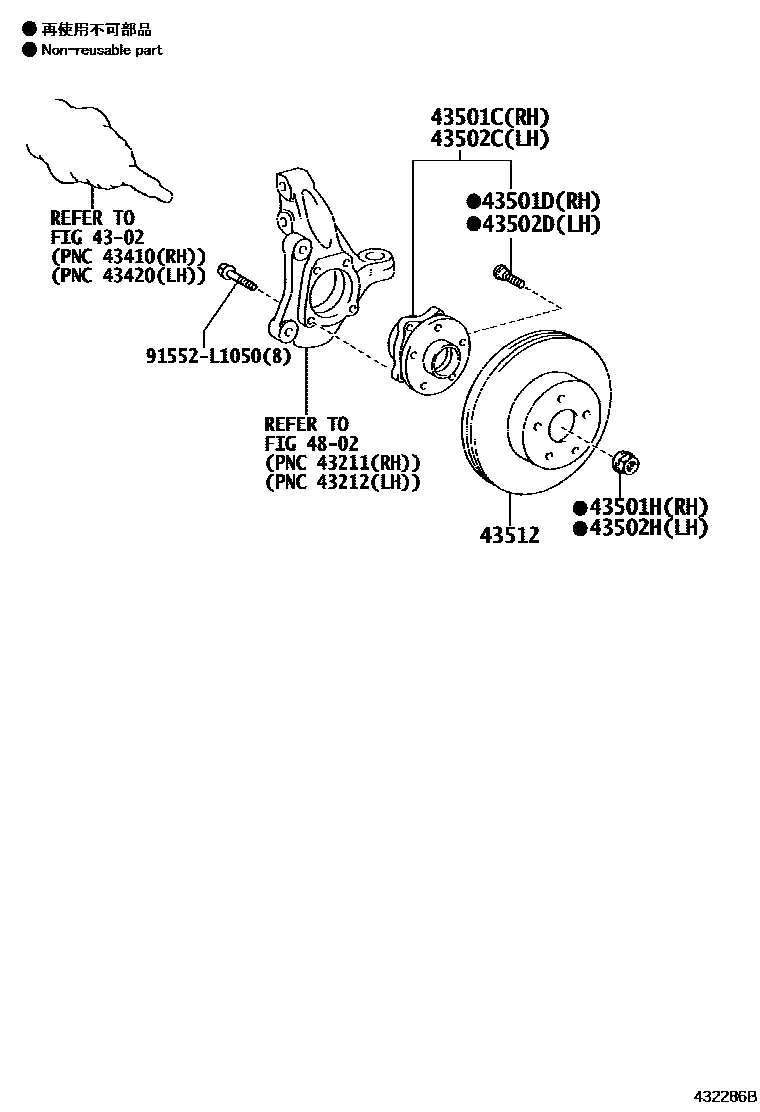

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-47010iZVW35200912

sub43550-47011

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iZVW35..RHD200912

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZVW35200912

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-47010iZVW35200912

sub43550-47011

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iZVW35200912

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZVW35200912

43512DISC, FRONT

main43512-47050×2iZVW35200912

4802

91552L1050

main91552-L1050

10 parts on this diagram · 1 diagram in section
