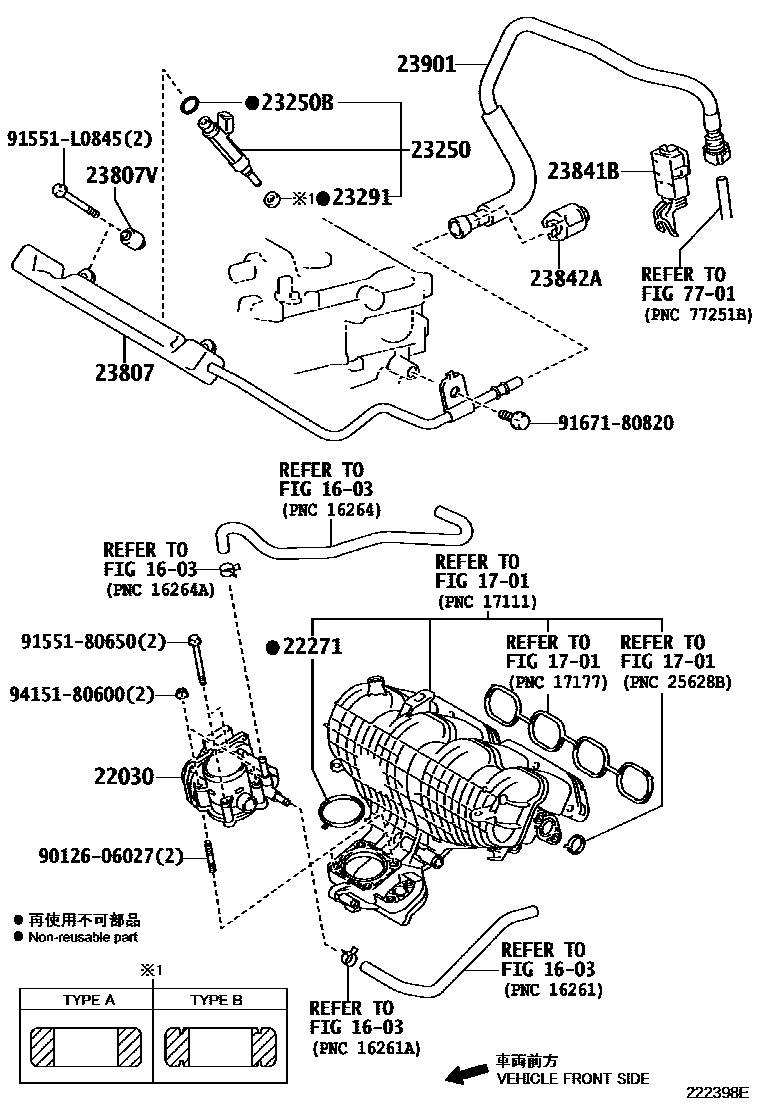

FUEL INJECTION SYSTEM

1603

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-37060i2ZRFXE..ZVW35200912-201010

22271GASKET, THROTTLE BODY

main22271-37010i2ZRFXE..ZVW35200912

23250INJECTOR ASSY, FUEL

main23209-39146×4i2ZRFXE..ZVW35200912

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2ZRFXE..ZVW35200912

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i2ZRFXE..ZVW35201001

TYPE A:REFER ILLUST.

main23291-28020×4i2ZRFXE..ZVW35200912

TYPE B:REFER ILLUST.

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37060i2ZRFXE..ZVW35200912

sub23814-37061

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010×2i2ZRFXE..ZVW35200912

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i2ZRFXE..ZVW35200912-201010

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2ZRFXE..ZVW35200912

23901TUBE SUB-ASSY, FUEL

main23901-37100i2ZRFXE..ZVW35200912-201010

7701

9012606027

main90126-06027

9155180650

main91551-80650

91551L0845

main91551-L0845

9167180820

main91671-80820

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section
