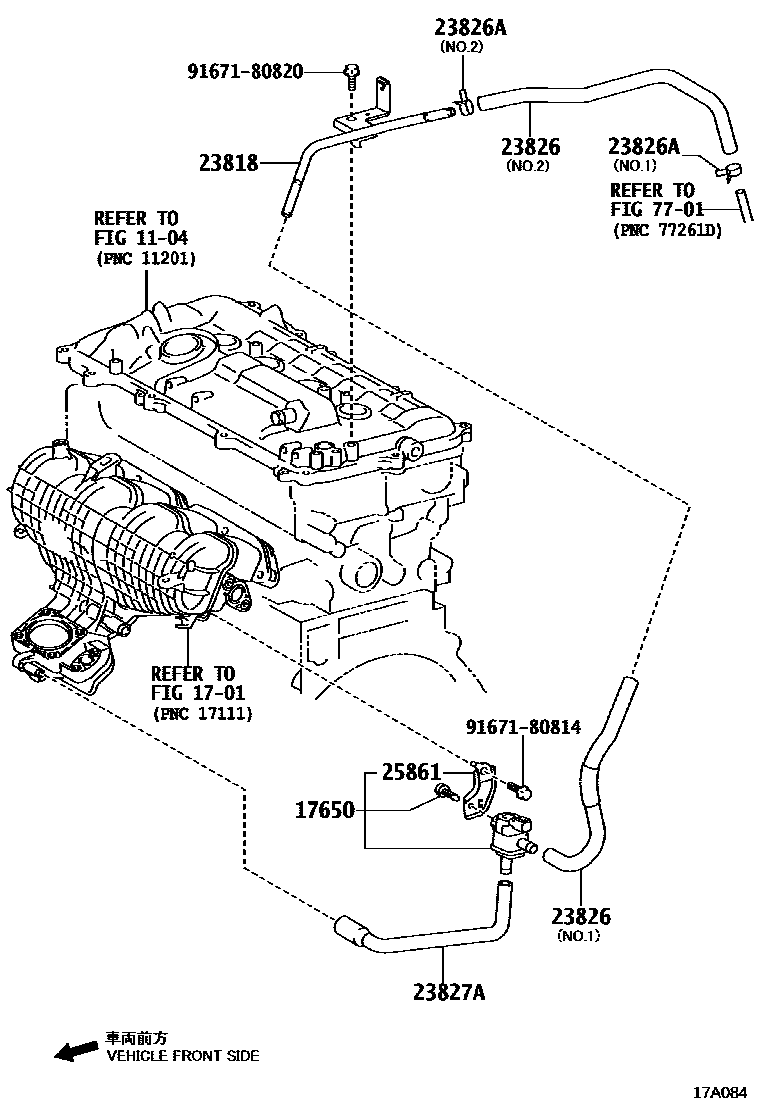

VACUUM PIPING

1104

1701

17650VALVE ASSY, VACUUM SWITCHING

main25860-37040i2ZRFXE..ZVW35200912

23818PIPE, FUEL VAPOR FEED

main23818-37020i2ZRFXE..ZVW35200912

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-37080i2ZRFXE..ZVW35200912-201010

NO.2

main23826-37140i2ZRFXE..ZVW35200912-201010

NO.1

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51100i2ZRFXE..ZVW35200912-201010

NO.1,NO.2

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37050i2ZRFXE..ZVW35200912

25861BRACKET, VACUUM SWITCHING VALVE

main25861-37020i2ZRFXE..ZVW35200912

7701

9167180814

main91671-80814

9167180820

main91671-80820

11 parts on this diagram · 1 diagram in section
