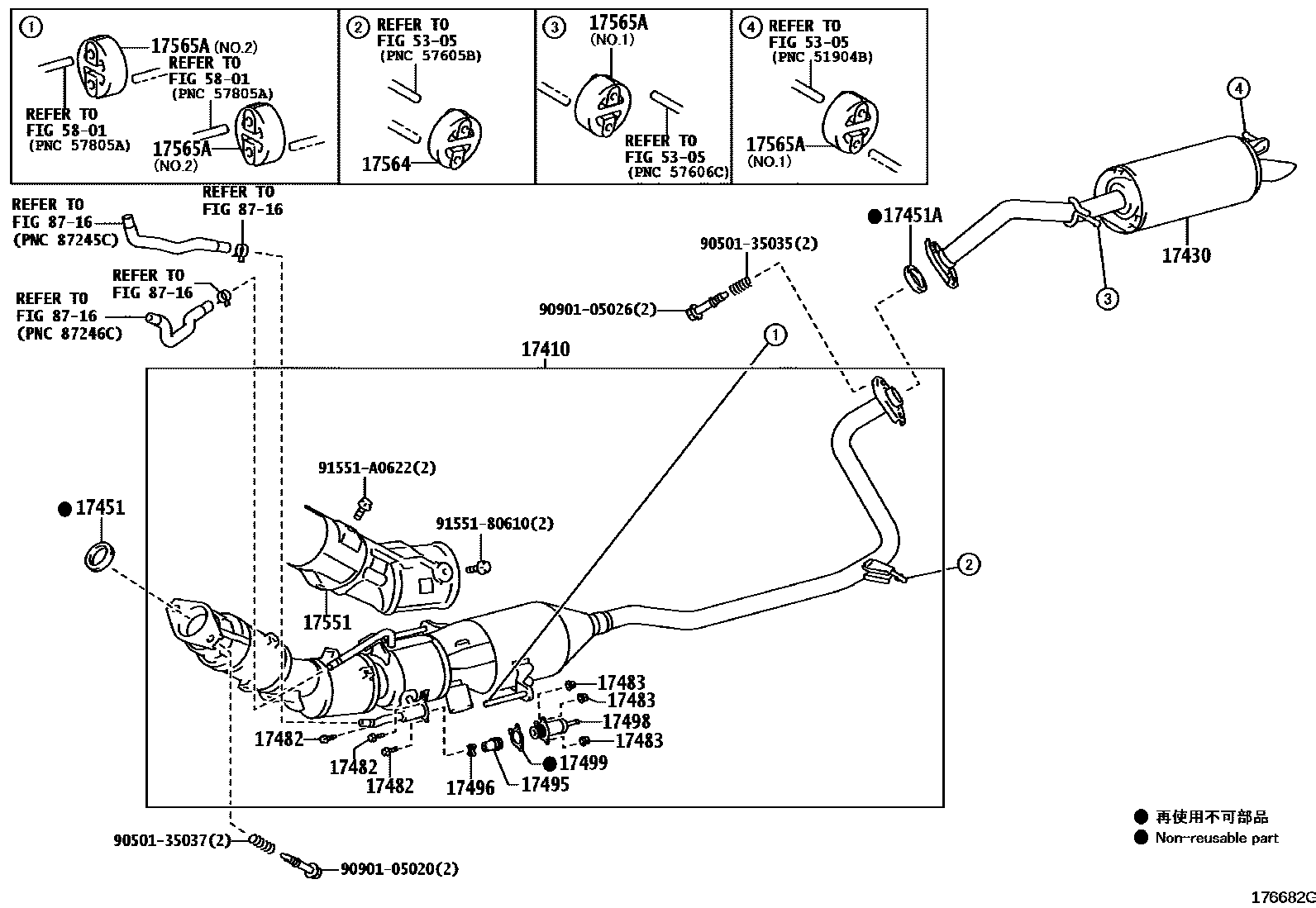

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-37300i2ZRFXE..ZVW35200912-201010

*114=TOYOTA/GP1TB1/Y

17430PIPE ASSY, EXHAUST, TAIL

main17430-37390i2ZRFXE..ZVW35200912

17451GASKET, EXHAUST PIPE

main17451-28040i2ZRFXE..ZVW35200912

sub17451-28041

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23041i2ZRFXE..ZVW35200912-201009

sub17451-23042

17482BOLT, EXHAUST PIPE GAS CONTROL ACTUATOR

main17482-47010i2ZRFXE..ZVW35200912-201010

17483NUT, EXHAUST PIPE GAS CONTROL ACTUATOR

main17483-47010i2ZRFXE..ZVW35200912

17495ACTUATOR, EXHAUST PIPE GAS CONTROL

main17495-47010i2ZRFXE..ZVW35200912

17496STOPPER, EXHAUST PIPE GAS CONTROL ACTUATOR

main17496-47010i2ZRFXE..ZVW35200912

17498CASE, EXHAUST PIPE GAS CONTROL ACTUATOR

main17498-47010i2ZRFXE..ZVW35200912

17499GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR

main17499-47010i2ZRFXE..ZVW35200912

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

main17551-37030i2ZRFXE..ZVW35200912-201010

sub17055-37010

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-22030i2ZRFXE..ZVW35200912

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i2ZRFXE..ZVW35200912

NO.1

main17565-28010i2ZRFXE..ZVW35200912

NO.2

5305

5801

8716

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155180610

main91551-80610

91551A0622

main91551-A0622

22 parts on this diagram · 1 diagram in section
