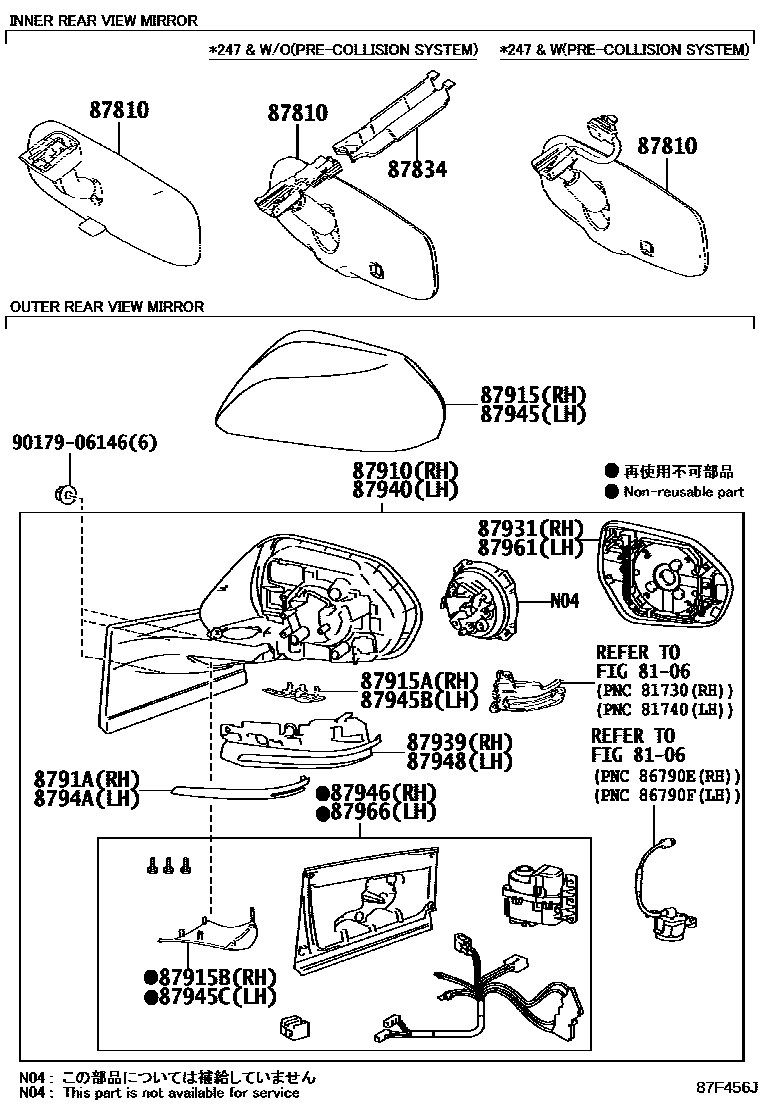

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
IRAN SPEC&PRE-COLLISION SYSTEM-WITHOUT&HEAD UP DISPLAY-WITH
EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITHOUT&HEAD UP DISPLAY-WITH
EXPORT UPPER PACKAGE&HEAD UP DISPLAY-WITH
EXPORT UPPER PACKAGE&HEAD UP DISPLAY-WITH
PRE-COLLISION SYSTEM-WITHOUT
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITHOUT&HEAD UP DISPLAY-WITH
87910MIRROR ASSY, OUTER REAR VIEW, RH
PLATED
PLATED,ISRAEL SPEC&BLIND SPOT MONITOR-WITH
PLATED,EXPORT UPPER PACKAGE
PLATED,RUSSIA SPEC
PLATED,IRAN SPEC
PLATED,BACK MONITOR-WITH(*PVM)
PLATED,BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
PLATED,BACK MONITOR-WITH(*PVM)
PLATED,BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
EMOTIONAL RED 2,3U5
STEEL BLONDE ME.,4X1
BLUE ME.,8X7
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
STEEL BLONDE,4X1
DK.BLUE M.M.,8W7
BLUE ME.,8X7
87915ACOVER, OUTER MIRROR, RH
BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87915BCOVER, OUTER MIRROR, LOWER RH
8791ACOVER, OUTER MIRROR, RH NO.2
PLATED
PLATED,RUSSIA SPEC
87931OUTER MIRROR, RH
ISRAEL SPEC&BLIND SPOT MONITOR-WITH
EUROPE SUPERLATIVE PACKAGE
IRAN SPEC
87939COVER, OUTER MIRROR HOLE, RH
BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87940MIRROR ASSY, OUTER REAR VIEW, LH
PLATED
PLATED,ISRAEL SPEC&BLIND SPOT MONITOR-WITH
PLATED,EXPORT UPPER PACKAGE
PLATED,RUSSIA SPEC
PLATED,IRAN SPEC
PLATED,BACK MONITOR-WITH(*PVM)
PLATED,BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
PLATED,BACK MONITOR-WITH(*PVM)
PLATED,BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
EMOTIONAL RED 2,3U5
STEEL BLONDE ME.,4X1
BLUE ME.,8X7
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
STEEL BLONDE,4X1
DK.BLUE M.M.,8W7
BLUE ME.,8X7
87945BCOVER, OUTER MIRROR, LH
BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87945CCOVER, OUTER MIRROR, LOWER LH
87946RETRACTOR, OUTER MIRROR, RH
EUROPE SUPERLATIVE PACKAGE
ISRAEL SPEC&BLIND SPOT MONITOR-WITH
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87948COVER, OUTER MIRROR HOLE, LH
BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
8794ACOVER, OUTER MIRROR, LH NO.2
PLATED
PLATED,RUSSIA SPEC
87961MIRROR OUTER, LH
ISRAEL SPEC&BLIND SPOT MONITOR-WITH
EUROPE SUPERLATIVE PACKAGE
IRAN SPEC
87966RETRACTOR, OUTER MIRROR, LH
EUROPE SUPERLATIVE PACKAGE
ISRAEL SPEC&BLIND SPOT MONITOR-WITH
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
9017906146
main90179-06146
20 parts on this diagram · 1 diagram in section
