ANTENNA
82818QPROTECTOR, WIRING HARNESS, NO.1
82818RPROTECTOR, WIRING HARNESS, NO.2
8504
86050ANTENNA ASSY, TELEVISION
BRAZIL SPEC&AUDIO-BRAZIL SPEC & AVN,*BT,USB,JBL
86077COVER KIT, ANTENNA
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
STEEL BLONDE,4X1
FROSTY GREEN MC.,781
DK.BLUE M.M.,8W7
BLUE ME.,8X7
TELEMATICS-WITH(DCM) & RUSSIA SPEC,SUPER WHITE 2,040
AUDIO-*DA & *BT & USB & JBL&DATA COMMUNICATION MODULE-WITH(FOR ERA-GLONASS),WHITEPEARL CS.,070
AUDIO-*DA & *BT & USB & JBL&DATA COMMUNICATION MODULE-WITH(FOR ERA-GLONASS),PLATINUM WHITE PEARL MC.,089
AUDIO-*DA & *BT & USB & JBL&DATA COMMUNICATION MODULE-WITH(FOR ERA-GLONASS),SILVERME.,1F7
TELEMATICS-WITH(DCM) & RUSSIA SPEC,GRAY ME.,1G3
TELEMATICS-WITH(DCM) & RUSSIA SPEC,ATTITUDE BLACK MC.,218
AUDIO-*DA & *BT & USB & JBL&DATA COMMUNICATION MODULE-WITH(FOR ERA-GLONASS),BLACKISH AGEHA GF.,221
TELEMATICS-WITH(DCM) & RUSSIA SPEC,EMOTIONAL RED,3T7
AUDIO-*DA & *BT & USB & JBL&DATA COMMUNICATION MODULE-WITH(FOR ERA-GLONASS),EMOTIONAL RED 2,3U5
AUDIO-*DA & *BT & USB & JBL&DATA COMMUNICATION MODULE-WITH(FOR ERA-GLONASS),STEELBLONDE,4X1
AUDIO-*DA & *BT & USB & JBL&DATA COMMUNICATION MODULE-WITH(FOR ERA-GLONASS),FROSTYGREEN MC.,781
TELEMATICS-WITH(DCM) & RUSSIA SPEC,DK.BLUE M.M.,8W7
AUDIO-*DA & *BT & USB & JBL&DATA COMMUNICATION MODULE-WITH(FOR ERA-GLONASS),BLUE ME.,8X7
86101CORD SUB-ASSY, ANTENNA
AUDIO-SOUTH AFRICA SPEC & AVN,*BT,USB,JBL
RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) & WESTERN EUROPE&TELEMATICS-WITH(DCM) & RUSSIA SPEC
SYRIA SPEC&AUDIO-AUDIO LESS & 6SPEAKER
TELEMATICS-WITH(DCM) & RUSSIA SPEC
BRAZIL SPEC&AUDIO-BRAZIL SPEC & AVN,*BT,USB,JBL
AUDIO-AFRICA SPEC & *DA,*BT,USB,JBL
86101DCORD SUB-ASSY, ANTENNA, NO.3
RUSSIA SPEC&MOON ROOF-WITH&TELEMATICS-WITH(DCM) & RUSSIA SPEC
86101JCORD SUB-ASSY, ANTENNA, NO.2
AUDIO-AUDIO LESS & 6SPEAKER
KAZAKHSTAN SPEC&TELEMATICS-WITH(DCM) & RUSSIA SPEC
BRAZIL SPEC&AUDIO-BRAZIL SPEC & AVN,*BT,USB,JBL
MOON ROOF-WITH
RUSSIA SPEC&MOON ROOF-WITH&TELEMATICS-WITH(DCM) & RUSSIA SPEC
BRASIL SPEC&MOON ROOF-WITH&AUDIO-BRAZIL SPEC & AVN,*BT,USB,JBL
86101QCORD SUB-ASSY, ANTENNA, NO.4
86101RCORD SUB-ASSY, ANTENNA, NO.5
AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL
BRAZIL SPEC&AUDIO-BRAZIL SPEC & AVN,*BT,USB,JBL
86101SCORD SUB-ASSY, ANTENNA
KAZAKHSTAN SPEC
86300BANTENNA ASSY, AMPLIFIER, NO.1
86300JANTENNA ASSY, ROOF
KAZAKHSTAN SPEC&TELEMATICS-WITH(DCM) & RUSSIA SPEC
KAZAKHSTAN SPEC&TELEMATICS-WITH(DCM) & RUSSIA SPEC
863C0ANTENNA ASSY, DIGITAL AUDIO BROADCASTING
AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL
86769HOUSING, ROOF ANTENNA
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
8271547880BRACKET,WIRING HARNESS CLAMP
main82715-47880
8614747040
main86147-47040
9011906915
main90119-06915
9011906A06
main90119-06A06
9017906274
main90179-06274

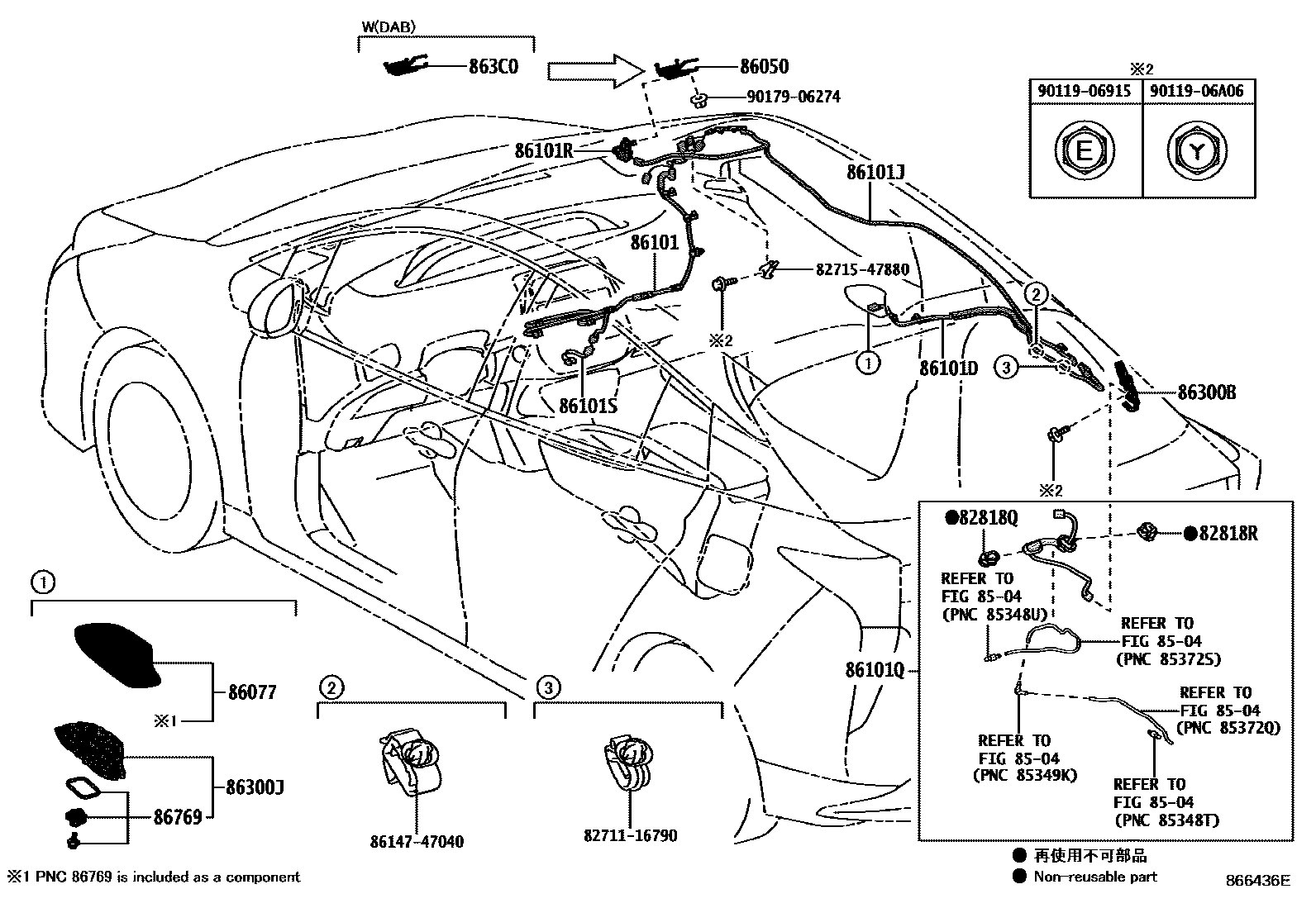

21 parts on this diagram · 1 diagram in section
