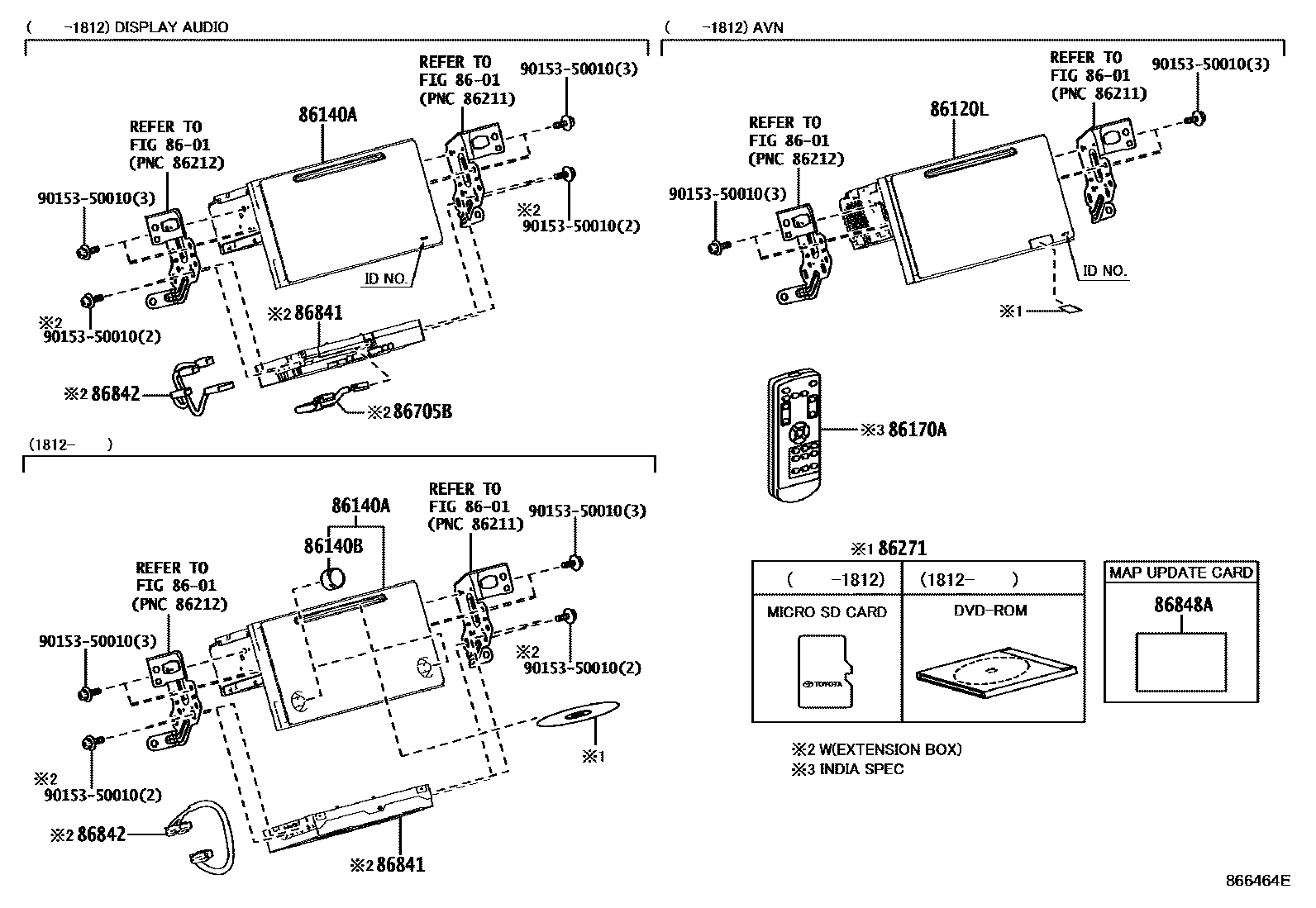

NAVIGATION & FRONT MONITOR DISPLAY

0001 1RECEIVER 0002 1ANTENNA CORD & MICROPHONE 0003 1ANTENNA CORD & MICROPHONE

8601

86120LRECEIVER ASSY, NAVIGATION

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-47300iZVW50..RHD201511-201812

PANASONIC,ID=510034,AUDIO-AUDIO LESS & 6SPEAKER

main86140-47300iZVW50..RHD201511-201812

PANASONIC,ID=510034

main86140-47350iZVW50..LHD201511-201812

PANASONIC,ID=510033,AUDIO-AUDIO LESS & 6SPEAKER

main86140-47350iZVW50..LHD201511-201812

PANASONIC,ID=510033

main86140-47460iZVW55..RHD201812-202007

PANASONIC

main86140-47460iZVW50..RHD201812-202007

PANASONIC,SINGAPORE SPEC&AUDIO-AUDIO LESS & 6SPEAKER

main86140-47460iZVW50..RHD201812-202007

PANASONIC,AUDIO-AUDIO LESS & 6SPEAKER

main86140-47470iZVW55..RHD201812-201908

PANASONIC

main86140-47480iZVW50..LHD201812-201910

PANASONIC,CHILE SPEC&AUDIO-AUDIO LESS & 6SPEAKER

sub86140-47481

main86140-47480iZVW50..LHD201812-201910

PANASONIC,AUDIO-AUDIO LESS & 6SPEAKER

sub86140-47481

main86140-47480iZVW50..LHD201812-201910

PANASONIC,AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

sub86140-47481

main86140-47480iZVW50..LHD201812-201910

PANASONIC,AUDIO-ASEAN SPEC & *DA & *BT & USB & JBL

sub86140-47481

main86140-47480iZVW5#..LHD201812-201910

PANASONIC

sub86140-47481

main86140-47481iZVW5#..LHD201911-202007

PANASONIC

main86140-47481iZVW5#..LHD201911-202007

PANASONIC,CHILE SPEC&AUDIO-AUDIO LESS & 6SPEAKER

main86140-47481iZVW5#..LHD201911-202007

PANASONIC,AUDIO-AUDIO LESS & 6SPEAKER

main86140-47481iZVW5#..LHD201911-202007

PANASONIC,AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

main86140-47481iZVW5#..LHD201911-202007

PANASONIC,AUDIO-ASEAN SPEC & *DA & *BT & USB & JBL

main86140-47790iZVW50..LHD202007-202102

PANASONIC,AUDIO-ASEAN SPEC & *DA & *BT & USB & JBL

sub86140-47791

main86140-47790iZVW5#..LHD202007-202102

PANASONIC

sub86140-47791

main86140-47790iZVW5#..LHD202007-202102

PANASONIC,CHILE SPEC&AUDIO-AUDIO LESS & 6SPEAKER

sub86140-47791

main86140-47790iZVW5#..LHD202007-202102

PANASONIC,AUDIO-AUDIO LESS & 6SPEAKER

sub86140-47791

main86140-47790iZVW5#..LHD202007-202102

PANASONIC,AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

sub86140-47791

main86140-47791iZVW50..LHD202103-202210

PANASONIC,CHILE SPEC&AUDIO-AUDIO LESS & 6SPEAKER

sub86140-47792

main86140-47791iZVW50..LHD202103-202210

PANASONIC,AUDIO-AUDIO LESS & 6SPEAKER

sub86140-47792

main86140-47791iZVW50..LHD202103-202210

PANASONIC,AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

sub86140-47792

main86140-47791iZVW50..LHD202103-202210

PANASONIC,AUDIO-ASEAN SPEC & *DA & *BT & USB & JBL

sub86140-47792

main86140-47791iZVW50..LHD202103-202210

PANASONIC

sub86140-47792

main86140-47800iZVW50..RHD202007-202102

PANASONIC,AUDIO-AUDIO LESS & 6SPEAKER

sub86140-47801

main86140-47800iZVW5#..RHD202007-202102

PANASONIC,SINGAPORE SPEC&AUDIO-AUDIO LESS & 6SPEAKER

sub86140-47801

main86140-47800iZVW50..RHD202007-202102

PANASONIC

sub86140-47801

main86140-47801iZVW5#..RHD202103

PANASONIC

main86140-47801iZVW5#..RHD202103

PANASONIC,AUDIO-AUDIO LESS & 6SPEAKER

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-24191iZVW5#201812

AUDIO-AUDIO LESS & 6SPEAKER

main90010-24191iZVW5#201812

AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

main90010-24191iZVW5#201812

AUDIO-ASEAN SPEC & *DA & *BT & USB & JBL

86170ASWITCH & VOLUME ASSY

86271DISC, DISC PLAYER

main86807-33010

main86807-33011

main86807-33012

main86807-33013

main86807-33014

main86807-11021

main86807-11022

main86807-11023

main86807-11024

main86807-11032

main86807-11033

main86807-11071

main86807-11072

main86807-11073

main86807-11074

main86271-33122

main86271-33123

main86271-33124

main86271-33232

main86271-33233

main86271-33234

main86271-60362

main86271-60363

main86271-60364

main86271-60365

main86271-60402

main86271-60403

main86271-60404¥47,100

main86271-60405

86705BCORD SUB-ASSY, TELEPHONE ANTENNA

86841COMPUTER, NAVIGATION

main86840-06041iZVW55..RHD201812-201908

AUDIO-*DA & *BT & USB & 6SPEAKER

86842WIRE, NAVIGATION, NO.1

main86842-33150iZVW55..RHD¥2,370201812-201908

AUDIO-*DA & *BT & USB & 6SPEAKER

86848ACARD, SERIAL NUMBER MAP UPDATE

9015350010

main90153-50010¥70

11 parts on this diagram · 3 diagrams in section
