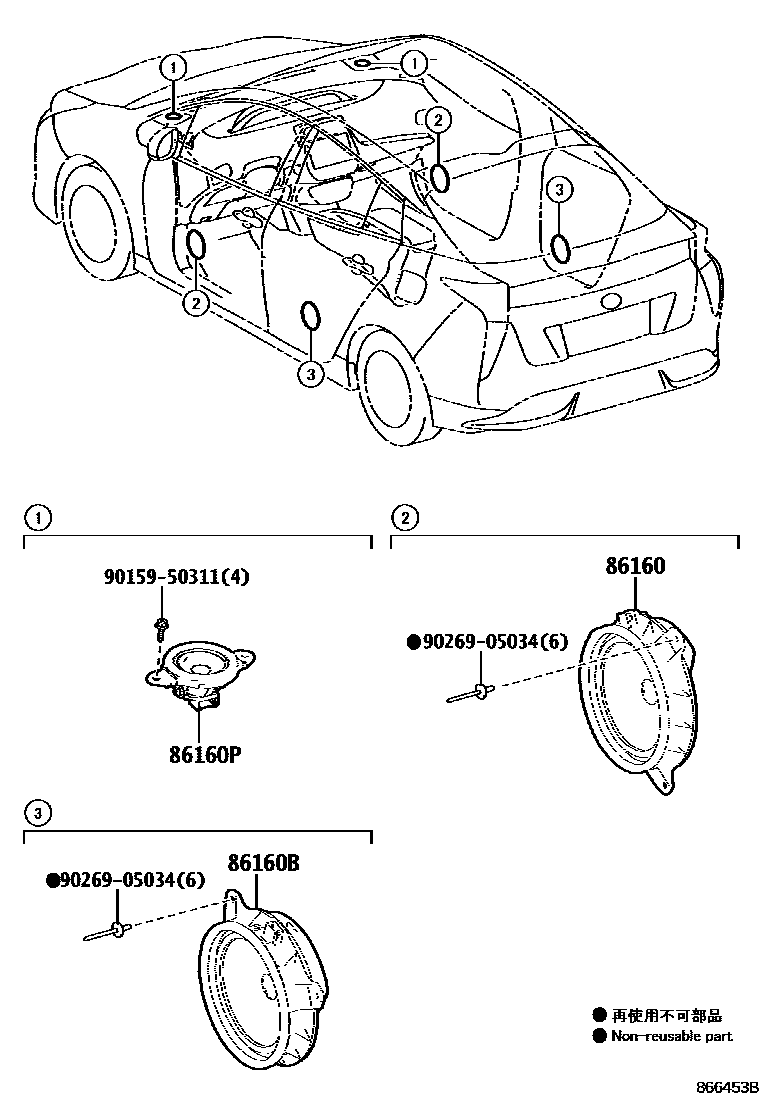

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0WX80×2supersedes 86160-28820iZVW50..RHD201511-201801

AUDIO-TAIWAN SPEC & AVN,*BT,USB,JBL

86160BSPEAKER ASSY, REAR

main86160-0R140×2supersedes 86160-28820iZVW50..RHD201511-201801

AUDIO-TAIWAN SPEC & AVN,*BT,USB,JBL

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WU50×2supersedes 86160-47140iZVW50..RHD201511-201801

AUDIO-TAIWAN SPEC & AVN,*BT,USB,JBL

9015950311

main90159-50311

9026905034

main90269-05034

5 parts on this diagram · 1 diagram in section
