WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47290iZVW5#..LHD201812

main85110-47360iZVW50..RHD201511-201812

85160LINK ASSY, WINDSHIELD WIPER

main85150-47210iZVW50..RHD201511-201812

main85150-47220iZVW50..LHD201511-201812

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iZVW50201511-201812

85211BARM, FRONT WIPER, RH

main85211-47190iZVW5#..LHD201812

main85211-47200iZVW5#..RHD201812

85212ABLADE, FR WIPER, RH

main85212-47130iZVW50..LHD201511-201812

main85212-47160iZVW5#..RHD201812

85214ARUBBER, WIPER, RH

main85214-47110iZVW5#..RHD201812

main85214-78010iZVW50..LHD201511-201812

85214BRUBBER, WIPER, LH

main85214-47110iZVW50..LHD201511-201812

main85214-78010iZVW5#..RHD201812

85221BARM, FRONT WIPER, LH

main85221-47170iZVW5#..LHD201812

main85221-47180iZVW5#..RHD201812

85222ABLADE, FR WIPER, LH

main85222-47110iZVW50..RHD201511-201812

main85222-47120iZVW5#..LHD201812

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iZVW5#201812

8715

89941SENSOR, RAIN

main89941-47021iZVW55..RHD201911-202007

EXPORT UPPER PACKAGE&AUDIO-*DA & *BT & USB & JBL

main89941-48080supersedes 89941-47020iZVW55..LHD202007

SINGAPORE SPEC&AUDIO-ASEAN SPEC & *DA & *BT & USB & JBL

89943COVER, RAIN SENSOR

main89943-47020

main89943-47021

89944TAPE, RAIN SENSOR

main89944-48010iZVW50..RHD201511-201611

PRE-COLLISION SYSTEM-WITHOUT&AUDIO-BRAZIL SPEC & AVN,*BT,USB,JBL

9011906864

main90119-06864

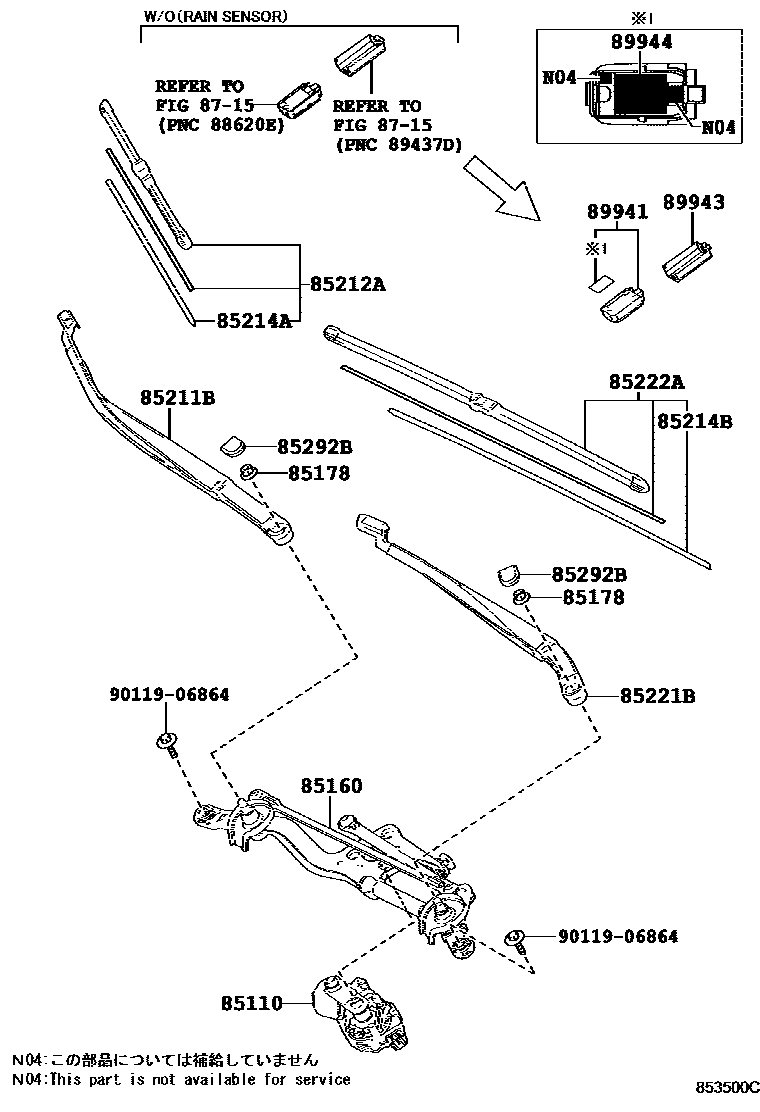

15 parts on this diagram · 2 diagrams in section
