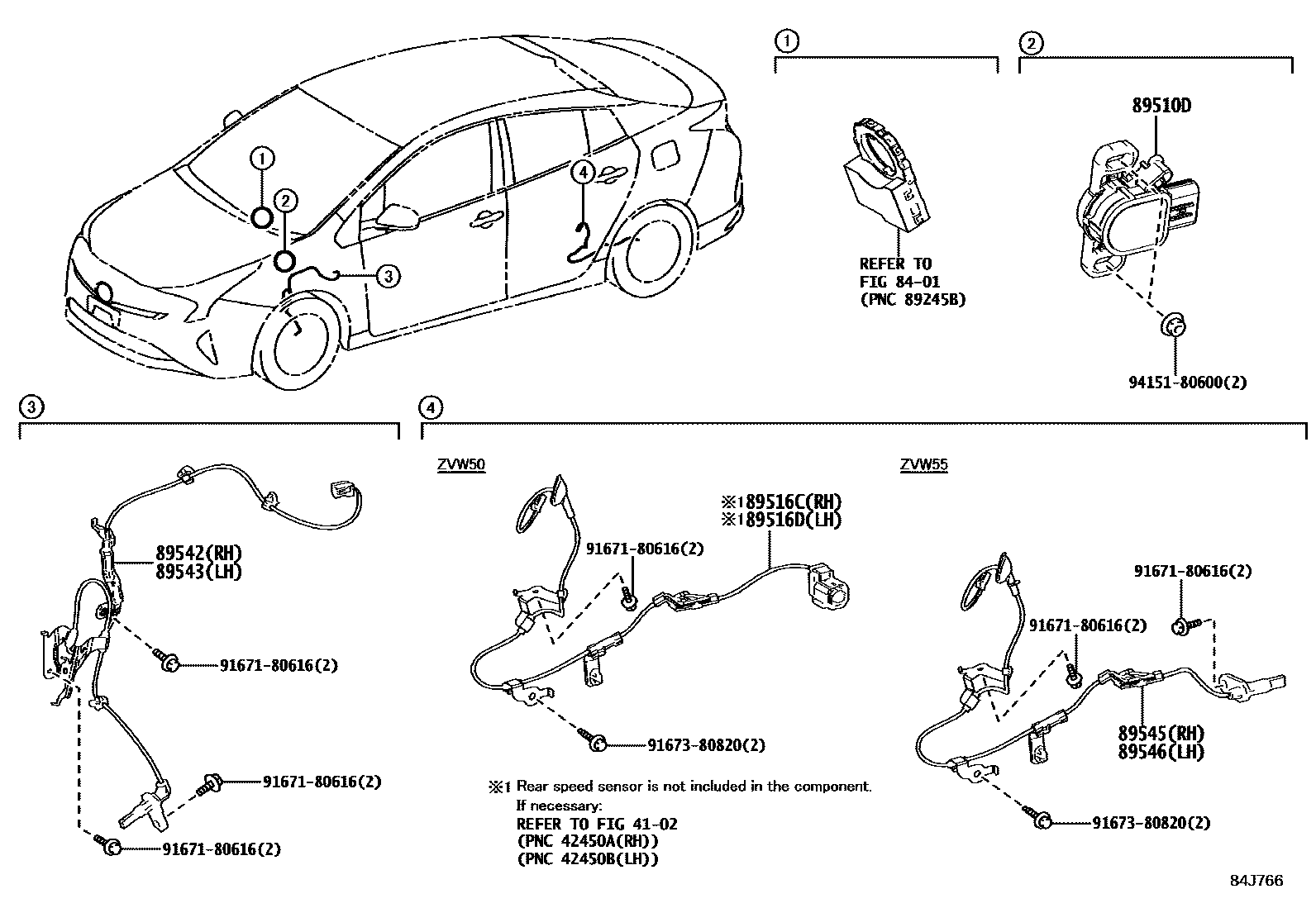

ABS & VSC

0001 1 0002 1

4102

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iZVW50..RHD¥7,900201511-201812

main89510-47040iZVW50..LHD¥7,900201511-201812

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-47110iZVW50¥1,790201511-201812

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-47120iZVW50¥1,790201511-201812

89542SENSOR, SPEED, FRONT RH

main89542-47040iZVW50¥9,000201511-201812

89543SENSOR, SPEED, FRONT LH

main89543-47040iZVW50¥9,000201511-201812

89545SENSOR, SPEED, REAR RH

main89545-47010iZVW55¥9,000201812

89546SENSOR, SPEED, REAR LH

main89546-47010iZVW55¥9,000201812

9167180616

main91671-80616¥60

9167380820

main91673-80820¥80

9415180600

main94151-80600¥60

12 parts on this diagram · 2 diagrams in section
