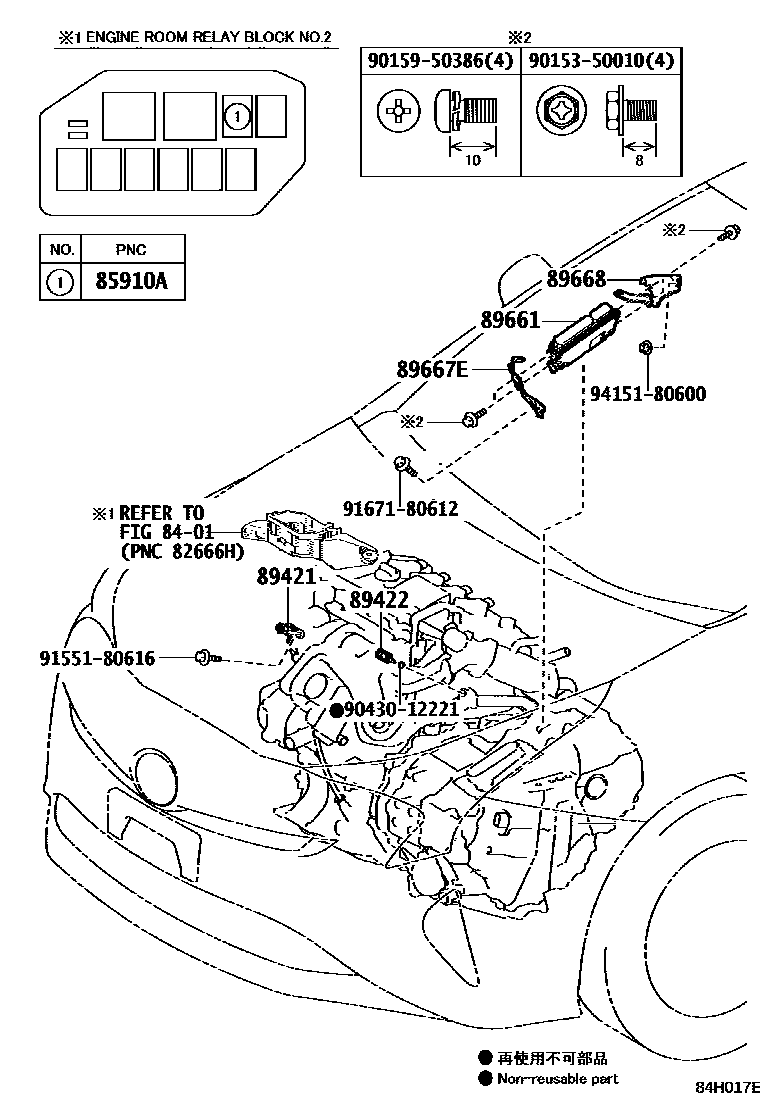

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iZVW50201511-201812

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZVW50201511-201812

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZVW50201511-201812

89661COMPUTER, ENGINE CONTROL

main89661-47680iZVW50201511-201711

EXHAUST EMISSION CONTROL-EURO 6B,WITHOUT(ON BOARD DIAGNOSIS)

sub89661-47681

main89661-47870iZVW50201711-201812

sub89661-47871

main89661-47A20iZVW5#201812-202003

DENSO TEN

main89661-47C50iZVW5#202003

DENSO TEN

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-47100iZVW50201511-201812

EXHAUST EMISSION CONTROL-EURO 6B,WITHOUT(ON BOARD DIAGNOSIS)

main89667-47100iZVW5#201812

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-47050iZVW50201511-201812

EXHAUST EMISSION CONTROL-EURO 6B,WITHOUT(ON BOARD DIAGNOSIS)

main89668-47050iZVW5#201812

9015350010

main90153-50010

9015950386

main90159-50386

9043012221

main90430-12221

9155180616

main91551-80616

9167180612

main91671-80612

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
