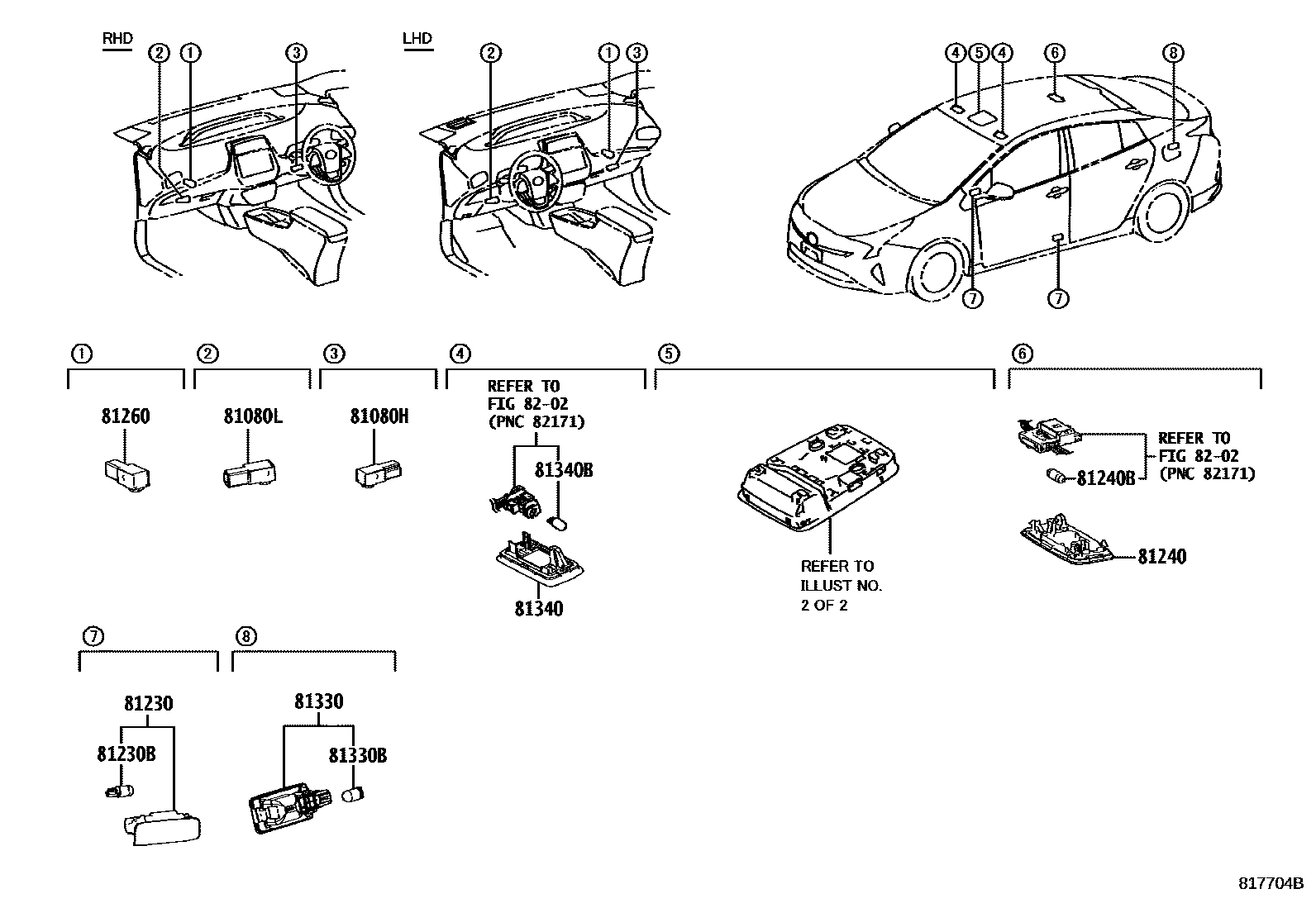

INTERIOR LAMP

0001 1 0002 1

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-33290iZVW5#201812

WHITE

main81080-48010iZVW50201511-201707

YELLOW AMBER

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-33290iZVW5#201812

WHITE

main81080-48010iZVW50201511-201707

YELLOW AMBER

81230LAMP ASSY, COURTESY

main81230-30200×2iZVW50201511-201812

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2iZVW5#201812

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-47010-B0iZVW5#201812

COOL GRAY,TRIM1#,2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZVW5#201812

12V 8W

81260LAMP ASSY, GLOVE BOX

main81080-33290iZVW50201707-201812

WHITE

main81080-48010iZVW50201511-201707

YELLOW AMBER

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-58010iZVW5#201812

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iZVW50201511-201812

12V 5W

81340LAMP ASSY, VANITY

main81340-30110×2iZVW5#201812

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iZVW50201511-201812

12V 8W

8202

12 parts on this diagram · 2 diagrams in section
