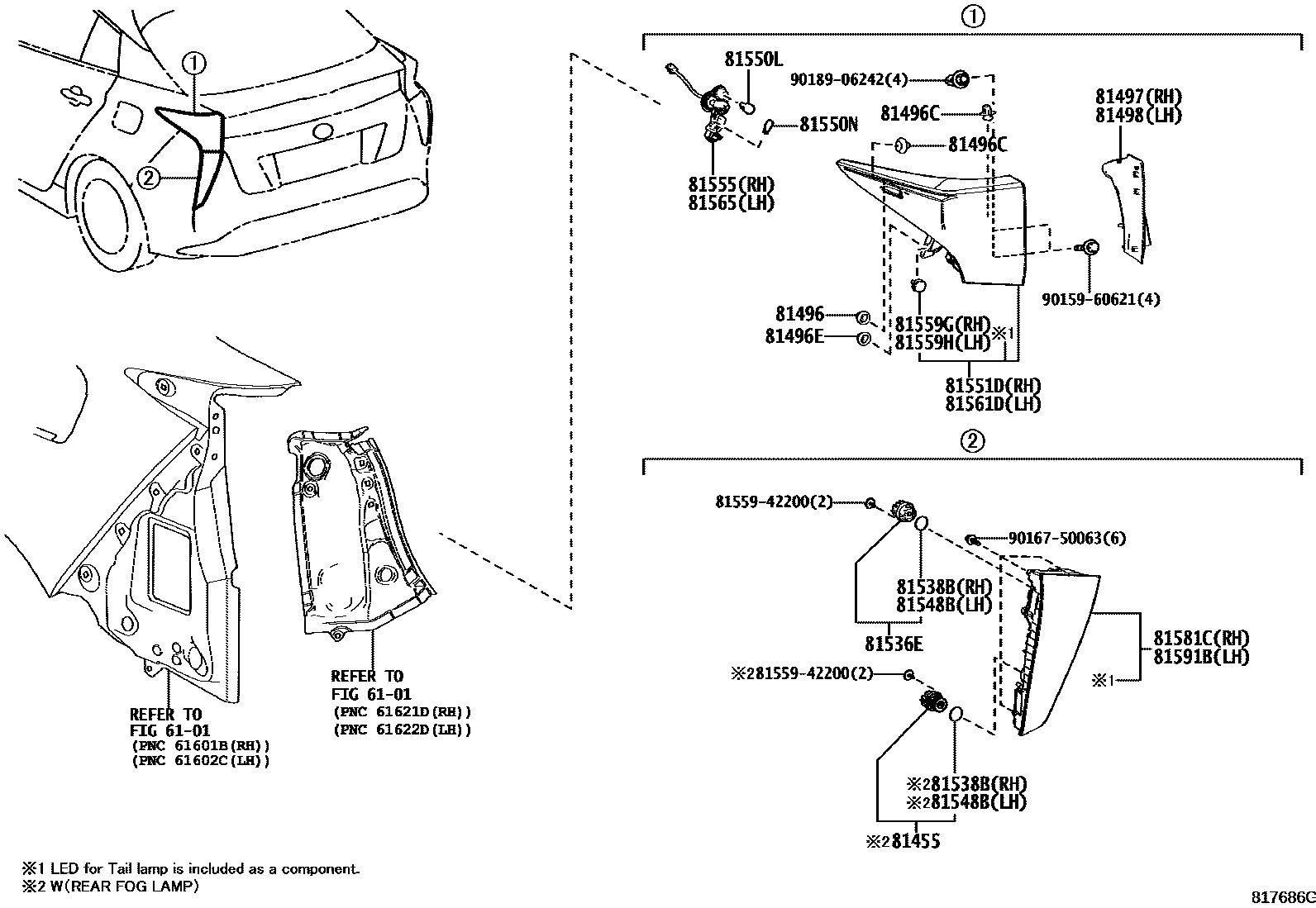

REAR COMBINATION LAMP

0001 1 0002 1

6101

81455LED, REAR FOG LAMP

main81455-42060×2iZVW50201511-201812

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iZVW50201511-201812

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-48010×4iZVW50201708-201812

YELLOW

main81496-60010×4iZVW50201708-201812

WHITE

81496EGUIDE, REAR COMBINATION LAMP, NO.3

main76817-26040×2iZVW5#201812

main81496-52020×2iZVW50201511-201608

81497COVER, REAR COMBINATION LAMP, RH

main81497-47020iZVW50201511-201812

main81497-47040iZVW5#201812

81498COVER, REAR COMBINATION LAMP, LH

main81498-47020iZVW50201511-201812

main81498-47040iZVW5#201812

81536ELED, STOP LAMP

main81536-42200×2iZVW5#201812

81538BGASKET, REAR COMBINATION LAMP, NO.3 RH

main81538-42200×2iZVW50..LHD201511-201812

REAR FOG LAMP-WITHOUT

81548BGASKET, REAR COMBINATION LAMP, NO.3 LH

main81538-42200×2iZVW50..LHD201511-201812

REAR FOG LAMP-WITHOUT

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iZVW50201512-201608

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iZVW50201608-201812

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-47280iZVW50201511-201608

main81551-47281iZVW50201608-201708

main81551-47282iZVW50201708-201805

main81551-47283iZVW50201805-201812

main81551-47470iZVW5#..LHD201812-201908

main81551-47471iZVW5#..LHD201908-202009

main81551-47472iZVW5#..LHD202009

main81551-47480iZVW50..RHD201812-201908

SINGAPORE SPEC

main81551-47481iZVW50..RHD201908-202009

SINGAPORE SPEC

main81551-47482iZVW5#..RHD202009

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-47290iZVW50201511-201812

main81555-47470iZVW5#..LHD201812

main81555-47480iZVW5#..RHD201812

81559GCLIP, RR COMBINATION LAMP, RH

main81559-47290iZVW50201511-201608

main81559-47291iZVW50201608-201812

81559HCLIP, RR COMBINATION LAMP, LH

main81559-47290iZVW50201511-201608

main81559-47291iZVW50201608-201812

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-47150iZVW50201511-201608

main81561-47151iZVW50201608-201708

main81561-47152iZVW50201708-201805

main81561-47153iZVW50201805-201812

main81561-47470iZVW50..RHD201812-201908

CHILE SPEC&REAR FOG LAMP-WITHOUT

main81561-47471iZVW50..RHD201908-202009

CHILE SPEC&REAR FOG LAMP-WITHOUT

main81561-47472iZVW50..LHD202009

CHILE SPEC&REAR FOG LAMP-WITHOUT

main81561-47480iZVW5#..LHD201812-201908

main81561-47481iZVW5#..LHD201908-202009

main81561-47482iZVW5#..LHD202009

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-47290iZVW50201511-201812

main81555-47470iZVW50..LHD201812

CHILE SPEC&REAR FOG LAMP-WITHOUT

main81555-47480iZVW5#..LHD201812

81581CLENS AND BODY, REAR LAMP, RH

main81581-47010iZVW50201511-201805

main81581-47011iZVW50201805-201812

main81581-47020iZVW50..LHD201511-201805

REAR FOG LAMP-WITHOUT

main81581-47021iZVW50..LHD201805-201812

REAR FOG LAMP-WITHOUT

81591BLENS AND BODY, REAR LAMP, LH

main81591-47010iZVW50201511-201805

main81591-47011iZVW50201805-201812

main81591-47020iZVW50..LHD201511-201805

REAR FOG LAMP-WITHOUT

main81591-47021iZVW50..LHD201805-201812

REAR FOG LAMP-WITHOUT

8155942200MOULDING, REAR COMBINATION LAMP, RH

main81559-42200

9015960621

main90159-60621

9016750063

main90167-50063

9018906242

main90189-06242

24 parts on this diagram · 2 diagrams in section
