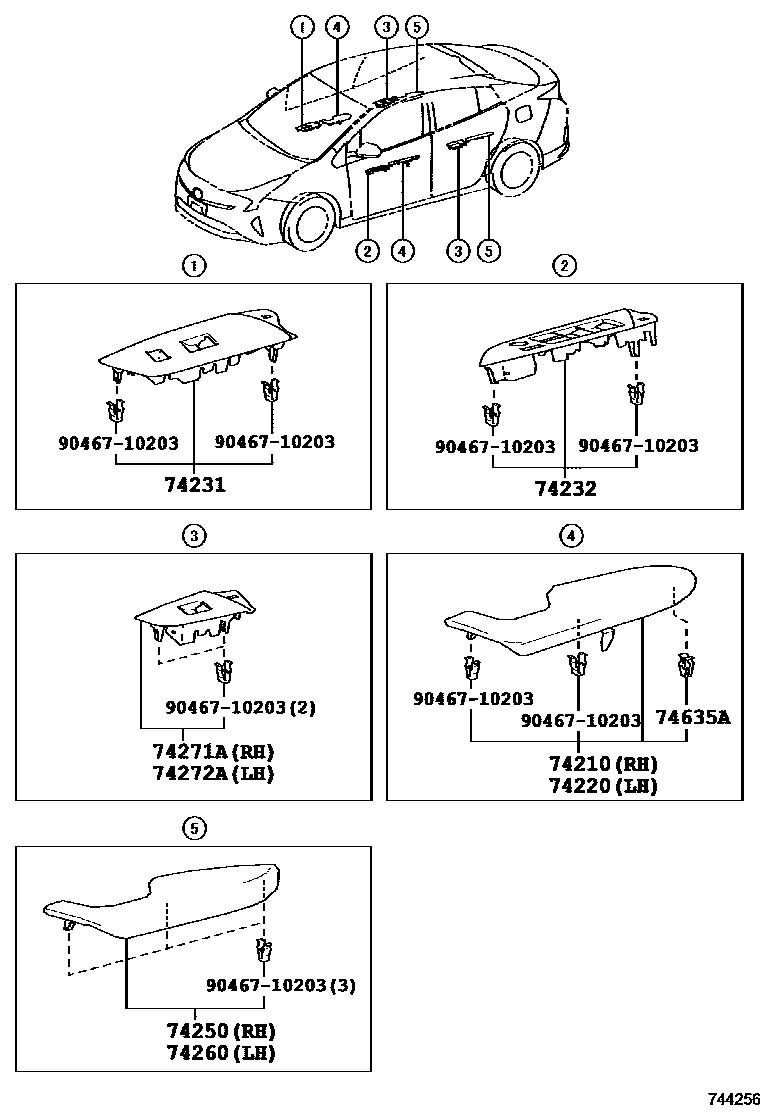

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-47010-C0iZVW50201511-201812

BLACK,TRIM1#,2#

74220ARMREST ASSY, FRONT, LH

main74220-47010-C0iZVW50201511-201812

BLACK,TRIM1#,2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-47220iZVW50..RHD201511-201812

main74231-47240iZVW5#..LHD201812

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-47180iZVW5#..RHD201812

main74232-47200iZVW50..LHD201511-201812

74250ARMREST ASSY, REAR RH

main74250-47010-C0iZVW50201511-201812

BLACK,TRIM1#,2#

74260ARMREST ASSY, REAR LH

main74260-47010-C0iZVW50201511-201812

BLACK,TRIM1#,2#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-47120iZVW50201511-201812

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-47120iZVW50201511-201812

74635ACLIP

main90467-08227×2iZVW50201511-201812

9046710203

main90467-10203

10 parts on this diagram · 3 diagrams in section
