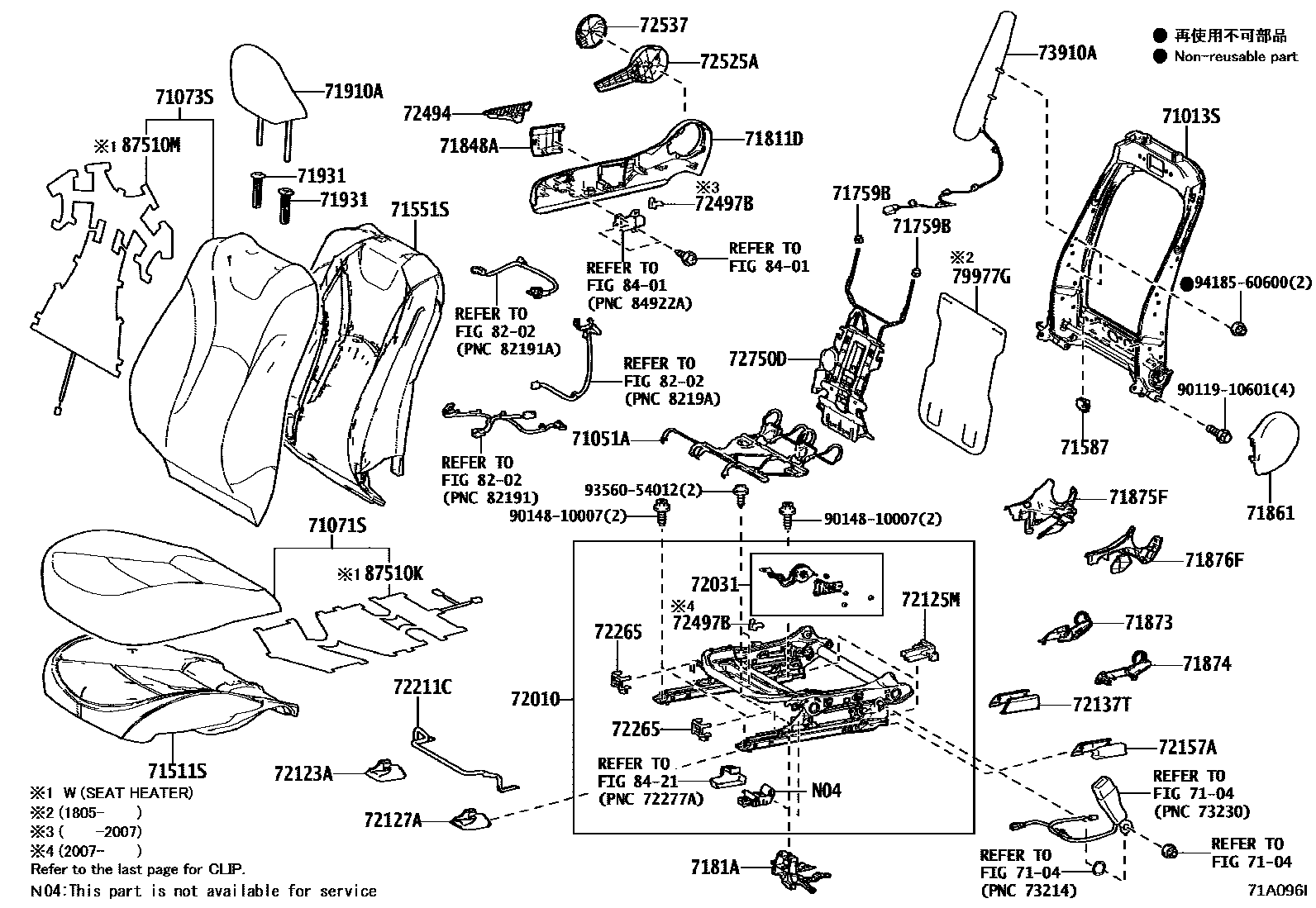

FRONT SEAT & SEAT TRACK

0001 1RH, MANUAL 6-WAY SEAT 0002 1RH, MANUAL 4-WAY SEAT 0003 1LH, MANUAL 6-WAY SEAT 0004 1LH, MANUAL 4-WAY SEAT 0005 1LH, POWER SEAT 0006 1CLIP

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-47130iZVW50¥17,200201511-201705

sub71013-47150¥17,100

main71013-47150iZVW50¥17,100201705-201812

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47090iZVW50¥4,110201511-201812

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-47A50-B2iZVW50..LHD201511-201812

COOL GRAY,TRIM1#

main71071-47A50-C2iZVW50..LHD201511-201812

BLACK,TRIM2#

main71071-47A60-B3iZVW50..RHD201511-201812

COOL GRAY,TRIM1#

main71071-47A60-C3iZVW50..RHD201511-201812

BLACK,TRIM2#

main71071-47D40-B3iZVW5#..LHD201812

COOL GRAY,TRIM1#

main71071-47D40-C2iZVW5#..LHD201812

BLACK,TRIM2#

main71071-47D50-B6iZVW5#..RHD201812

COOL GRAY,TRIM1#

main71071-47D50-C4iZVW5#..RHD201812

BLACK,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-47860-B4iZVW50201511-201812

COOL GRAY,TRIM1#

main71073-47860-C3iZVW50201511-201812

BLACK,TRIM2#

main71073-47C90-B2iZVW5#201812

COOL GRAY,TRIM1#

main71073-47C90-C2iZVW5#201812

BLACK,TRIM2#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-47040iZVW50..LHD201511-201812

main71511-47250iZVW50..RHD¥9,100201511-201812

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-47270iZVW50201511-201812

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iZVW50¥200201511-201812

71759BHOOK, FRONT SEATBACK

main71759-50040iZVW50¥130201511-201812

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-47150-C0iZVW50..LHD201511-201610

BLACK,TRIM1#,2#

sub71811-47150¥3,890

main71811-47150-C1iZVW5#..LHD201610-201812

BLACK,TRIM1#,2#

sub71811-47150¥3,890

main71811-47170-C0iZVW50..RHD201511-201610

BLACK,TRIM1#,2#

sub71811-47170¥2,460

main71811-47170-C1iZVW50..RHD201610-201812

BLACK,TRIM1#,2#

sub71811-47170¥2,460

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-47010iZVW50¥1,220201511-201812

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-47040-C0iZVW50..RHD201511-201610

BLACK,TRIM1#,2#

sub71848-47040¥600

sub71848-10020¥370

main71848-47040-C1iZVW50..RHD201610-201812

BLACK,TRIM1#,2#

sub71848-47040¥600

sub71848-10020¥370

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C0iZVW50..RHD201511-201610

BLACK,TRIM1#,2#

sub71861-47070¥1,090

main71861-47070-C1iZVW50..RHD201610-201812

BLACK,TRIM1#,2#

sub71861-47070¥1,090

main71861-47080-C0iZVW50..LHD201511-201610

BLACK,TRIM1#,2#

sub71861-47080¥1,760

main71861-47080-C1iZVW50..LHD201610-201812

BLACK,TRIM1#,2#

sub71861-47080¥1,760

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070iZVW50..RHD¥740201511-201812

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-47080iZVW50..RHD¥920201511-201812

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-47040-C0iZVW50..RHD201511-201610

BLACK,TRIM1#,2#

sub71875-47040¥1,860

main71875-47040-C1iZVW50..RHD201610-201812

BLACK,TRIM1#,2#

sub71875-47040¥1,860

main71875-47060-C0iZVW50..LHD201511-201610

BLACK,TRIM1#,2#

sub71875-47060¥1,860

main71875-47060-C1iZVW50..LHD201610-201812

BLACK,TRIM1#,2#

sub71875-47060¥1,860

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-47070-C0iZVW50..RHD201511-201610

BLACK,TRIM1#,2#

sub71875-47070¥1,760

main71875-47070-C1iZVW5#..RHD201610-201812

BLACK,TRIM1#,2#

sub71875-47070¥1,760

main71875-47080-C0iZVW50..LHD201511-201610

BLACK,TRIM1#,2#

sub71875-47080¥1,860

main71875-47080-C1iZVW50..LHD201610-201812

BLACK,TRIM1#,2#

sub71875-47080¥1,860

71910AHEADREST ASSY, FRONT SEAT

main71910-47440-B1iZVW50201511-201812

COOL GRAY,TRIM1#

main71910-47440-B6iZVW5#201812

COOL GRAY/TURQUOISE,TRIM1#

main71910-47440-C1iZVW50201511-201812

BLACK,TRIM2#

main71910-47440-C7iZVW5#201812

BLACK/DK.GRAY,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-B0iZVW5#201511-201812

W(LOCK),COOL GRAY,TRIM10

main71930-47050-C0iZVW50201511-201610

W(LOCK),BLACK,TRIM10,2#

main71930-47050-C5iZVW5#201610-201812

W(LOCK),BLACK,TRIM10,2#

main71931-47030-B0iZVW50201511-201812

W/O(LOCK),COOL GRAY,TRIM10

main71931-47030-C0iZVW50201511-201610

W/O(LOCK),BLACK,TRIM10,2#

main71931-47030-C4iZVW5#201610-201812

W/O(LOCK),BLACK,TRIM10,2#

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-47370iZVW50..RHD201511-201905

sub72010-47371¥27,700

main72010-47371iZVW5#..RHD¥27,700201906

main72010-47380iZVW50..LHD¥21,100201511-201811

main72010-47381iZVW5#..LHD¥19,200201812

72031ADJUSTER ASSY, FRONT SEAT VERTICAL

main72443-47010iZVW5#..RHD¥8,000201511-201903

main72443-47011iZVW5#..RHD¥7,300201904

main72443-47020iZVW50..LHD¥8,000201511-201903

main72443-47021iZVW5#..LHD¥7,300201904

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-47060iZVW50¥320201511-201812

72125MCOVER, SEAT TRACK, UPPER NO.3

main72125-47010iZVW50¥450201511-201803

INNER

main72125-47010iZVW50¥450201803-201812

main72125-47020iZVW50¥160201511-201803

OUTER

sub72125-47010¥450

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-47060iZVW5#¥320201511-201812

72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060iZVW5#¥430201511-201812

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-47080iZVW50¥460201511-201812

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-47050iZVW50¥990201511-201812

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-47010iZVW50¥160201511-201812

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-47030-C0iZVW50..RHD201511-201610

BLACK,TRIM1#,2#

sub72494-47030¥1,020

main72494-47030-C1iZVW50..RHD201610-201812

BLACK,TRIM1#,2#

sub72494-47030¥1,020

72497BCOVER, VERTICAL ADJUSTER BRACKET, RH

main72498-47010iZVW50..RHD¥90201511-201812

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47040-C0iZVW50201511-201610

BLACK,TRIM1#,2#

sub72525-47040¥2,400

main72525-47040-C1iZVW5#201610-201812

BLACK,TRIM1#,2#

sub72525-47040¥2,400

72537COVER, RECLINING HINGE OUTER, RH

main72551-47030-C0iZVW50201511-201610

BLACK,TRIM1#,2#

sub72551-47030¥650

main72551-47030-C1iZVW50201610-201812

BLACK,TRIM1#,2#

sub72551-47030¥650

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-11020iZVW50..RHD¥22,400201805-201812

main72750-33140iZVW5#..RHD¥20,300201812

main72750-47020iZVW50..RHD¥26,900201511-201804

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-47110iZVW50201511-201812

79977GFELT, FRONT SEATBACK, RH

main79977-33030iZVW50..RHD¥1,080201805-201812

8202

8401

8421

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

87510MHEATER ASSY, FRONT SEATBACK, RH

9011910601

main90119-10601¥90

9014810007

main90148-10007¥60

9356054012

main93560-54012¥60

9418560600

main94185-60600¥70

44 parts on this diagram · 6 diagrams in section
