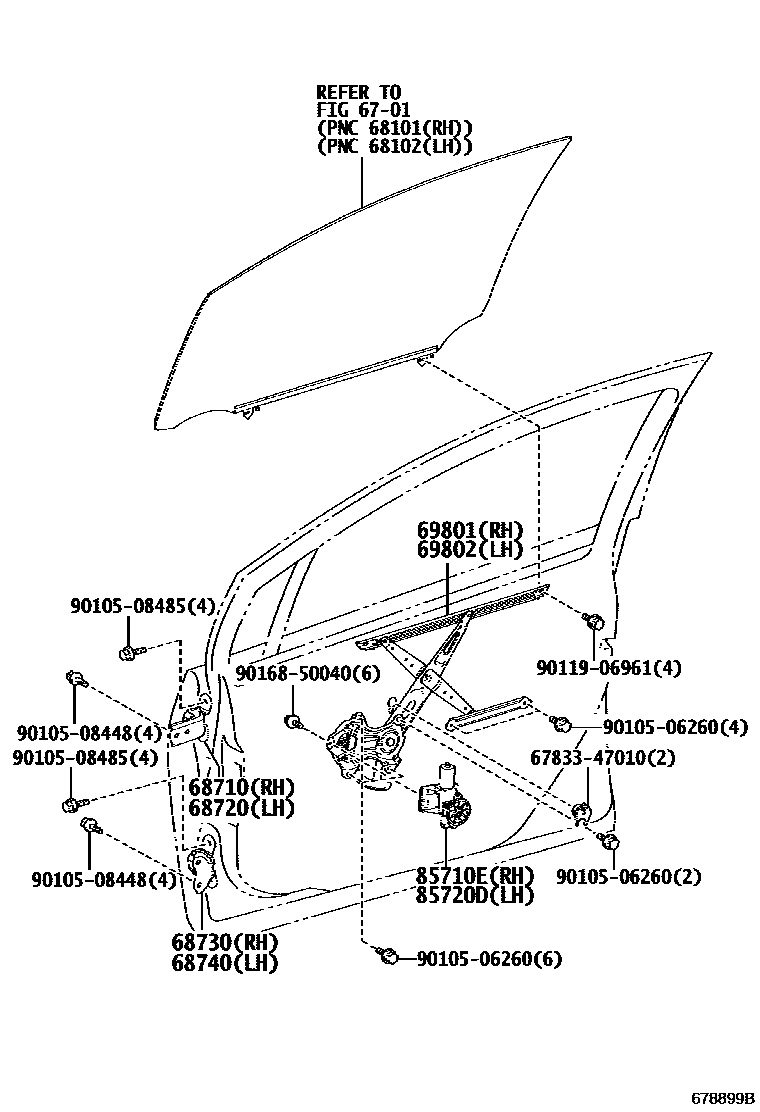

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iZVW50201511-201812

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iZVW50201511-201812

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iZVW50201511-201812

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iZVW50201511-201812

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-21020iZVW50201511-201812

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-21010iZVW50201511-201812

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-47140iZVW50201511-201812

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-47140iZVW50201511-201812

6783347010COVER, REAR DOOR SERVICE HOLE

main67833-47010

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906961

main90119-06961

9016850040

main90168-50040

15 parts on this diagram · 1 diagram in section
