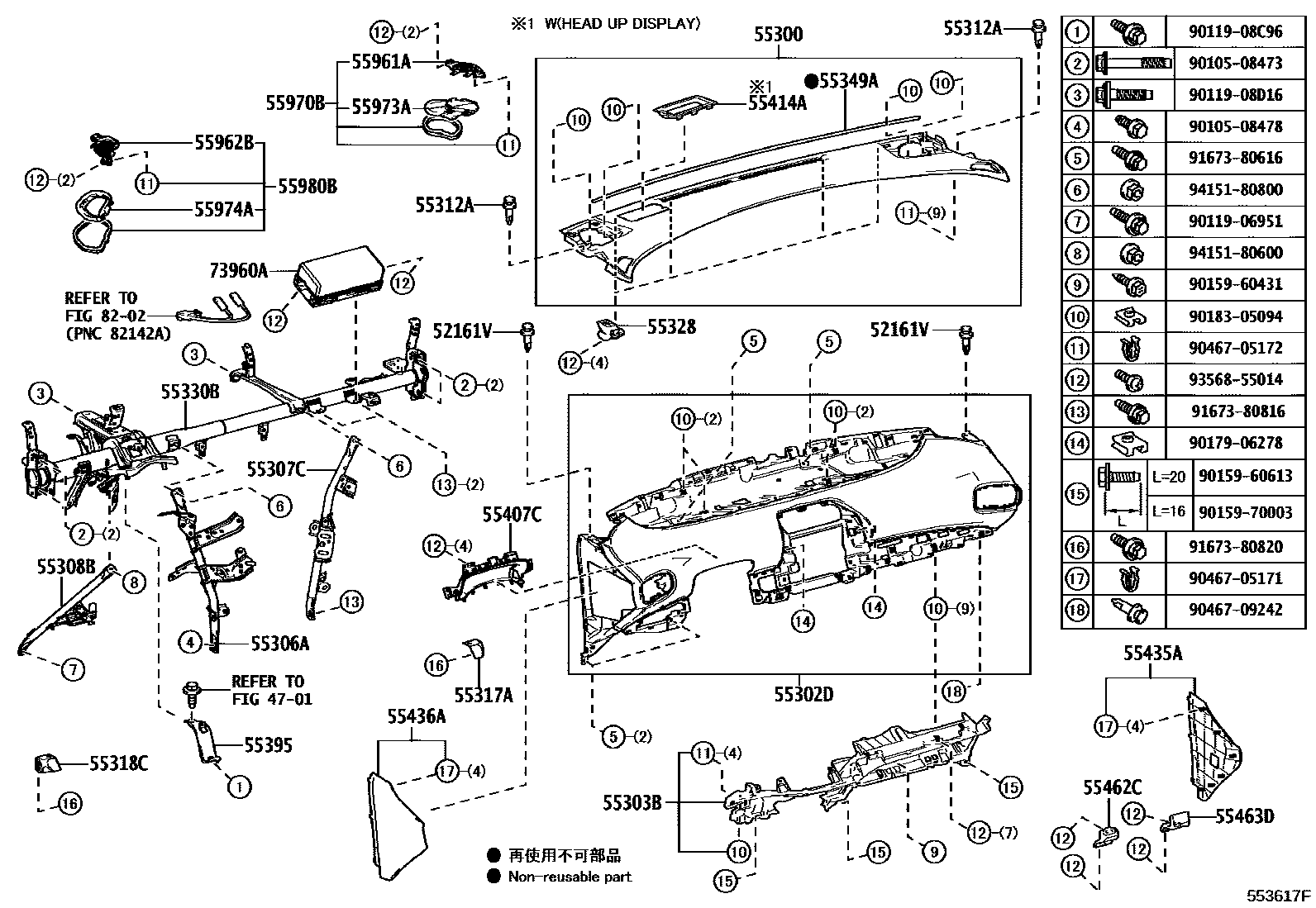

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

4701

52161VPIECE, INSTRUMENT PANEL

main52161-16010×2iZVW50201511-201812

sub52161-0K040

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-47141-C0iZVW50..LHD201609-201812

BLACK,TRIM1#,2#

main55300-47130-C0supersedes 55300-47140-C0iZVW50..LHD201511-201609

BRASIL SPEC,BLACK,TRIM1#,2#

main55300-47131-C0iZVW50..LHD202007-202201

BRAZIL SPEC&EXPORT UPPER PACKAGE,BLACK,TRIM1#,2#

main55300-47150-C0supersedes 55300-47160-C0iZVW50..RHD201511-201609

EUROPE SUPERLATIVE PACKAGE,BLACK,TRIM1#,2#

main55300-47151-C0supersedes 55300-47161-C0iZVW50..RHD201609-201812

EUROPE SUPERLATIVE PACKAGE,BLACK,TRIM1#,2#

55302DPANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1

main55302-47130-B1iZVW50..LHD201511-201609

COOL GRAY/BLACK,TRIM1#

main55302-47130-C1iZVW50..LHD201511-201609

BLACK,TRIM2#

main55302-47131-B1iZVW50..LHD201609-201812

COOL GRAY/BLACK,TRIM1#

main55302-47131-C1iZVW5#..LHD201812

BLACK,TRIM2#

main55302-47140-B0iZVW50..RHD201511-201609

COOL GRAY/BLACK,TRIM1#

main55302-47140-C1iZVW50..RHD201511-201609

BLACK,TRIM2#

main55302-47141-B0iZVW5#..RHD201812

COOL GRAY/BLACK,TRIM1#

main55302-47141-C1iZVW50..RHD201609-201812

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-47080-C0iZVW50..LHD201511-201609

BLACK,TRIM1#,2#

main55303-47081-C0iZVW50..LHD201609-201812

BLACK,TRIM1#,2#

main55303-47090-C0iZVW50..RHD201511-201609

BLACK,TRIM1#,2#

main55303-47091-C0iZVW5#..RHD201812

BLACK,TRIM1#,2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-47100iZVW50..LHD201511-201812

main55306-47110iZVW5#..RHD201812

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-47050iZVW5#..LHD201812

main55307-47060iZVW5#..RHD201812

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-47040iZVW5#..LHD201812

main55308-47050iZVW50..RHD201511-201812

55312ACLIP, INSTRUMENT PANEL

main52161-16010×2iZVW50201511-201812

sub52161-0K040

55317APANEL, INSTRUMENT SIDE, RH

main55317-47060iZVW50201511-201812

55318CPANEL, INSTRUMENT SIDE, LH

main55318-47070iZVW5#201812

55328PIN, INSTRUMENT PANEL, NO.1

main55328-47170×4iZVW5#201812

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-47161iZVW50..LHD201511-201812

main55330-47171iZVW5#..RHD201812

55349ACUSHION, INSTRUMENT PANEL

main55349-47030iZVW5#201812

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-47010iZVW5#..LHD201812

main55395-47020iZVW50..RHD201511-201812

55407CCOVER SUB-ASSY, INSTRUMENT, LOWER

main55407-47010iZVW50..LHD201511-201812

main55407-47020iZVW5#..RHD201812

55414APANEL, INSTRUMENT CLUSTER FINISH, END

main55414-47110-C0iZVW50..LHD202007-202201

BRAZIL SPEC&EXPORT UPPER PACKAGE,BLACK,TRIM1#,2#

main55414-47120-C0iZVW5#..RHD201812

EUROPE SUPERLATIVE PACKAGE,BLACK,TRIM1#,2#

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-47050-C0iZVW50..RHD201511-201812

BLACK,TRIM1#,2#

main55435-47060-C0iZVW50..LHD201511-201812

BLACK,TRIM1#,2#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-47050-C0iZVW50..LHD201511-201812

BLACK,TRIM1#,2#

main55436-47060-C0iZVW5#..RHD201812

BLACK,TRIM1#,2#

55462CBRACKET, KNEE PROTECTOR, NO.2

main55462-47050iZVW5#..LHD201812

55463DBRACKET, KNEE PROTECTOR, NO.3

main55463-47070iZVW5#..LHD201812

55961ANOZZLE, SIDE DEFROSTER, RH

main55961-47040-C0iZVW50201511-201812

BLACK,TRIM1#,2#

55962BNOZZLE, SIDE DEFROSTER, LH

main55962-47020-C0iZVW50201511-201812

BLACK,TRIM1#,2#

55970BNOZZLE ASSY, SIDE DEFROSTER, RH

main55970-47010-C0iZVW50201511-201812

BLACK,TRIM1#,2#

55973ADUCT, SIDE DEFROSTER NOZZLE, NO.3

main55973-47060iZVW50201511-201812

55974ADUCT, SIDE DEFROSTER NOZZLE, NO.4

main55974-47020iZVW50201511-201812

55980BNOZZLE ASSY, SIDE DEFROSTER, LH

main55980-47010-C0iZVW50201511-201812

BLACK,TRIM1#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-47100iZVW5#201812-201912

sub73960-47130

main73960-47150iZVW5#202001

8202

9010508473

main90105-08473

9010508478

main90105-08478

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

9015960431

main90159-60431

9015960613

main90159-60613

9015970003

main90159-70003

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9046705172

main90467-05172

9046709242

main90467-09242

9167380616

main91673-80616

9167380816

main91673-80816

9167380820

main91673-80820

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

48 parts on this diagram · 8 diagrams in section
