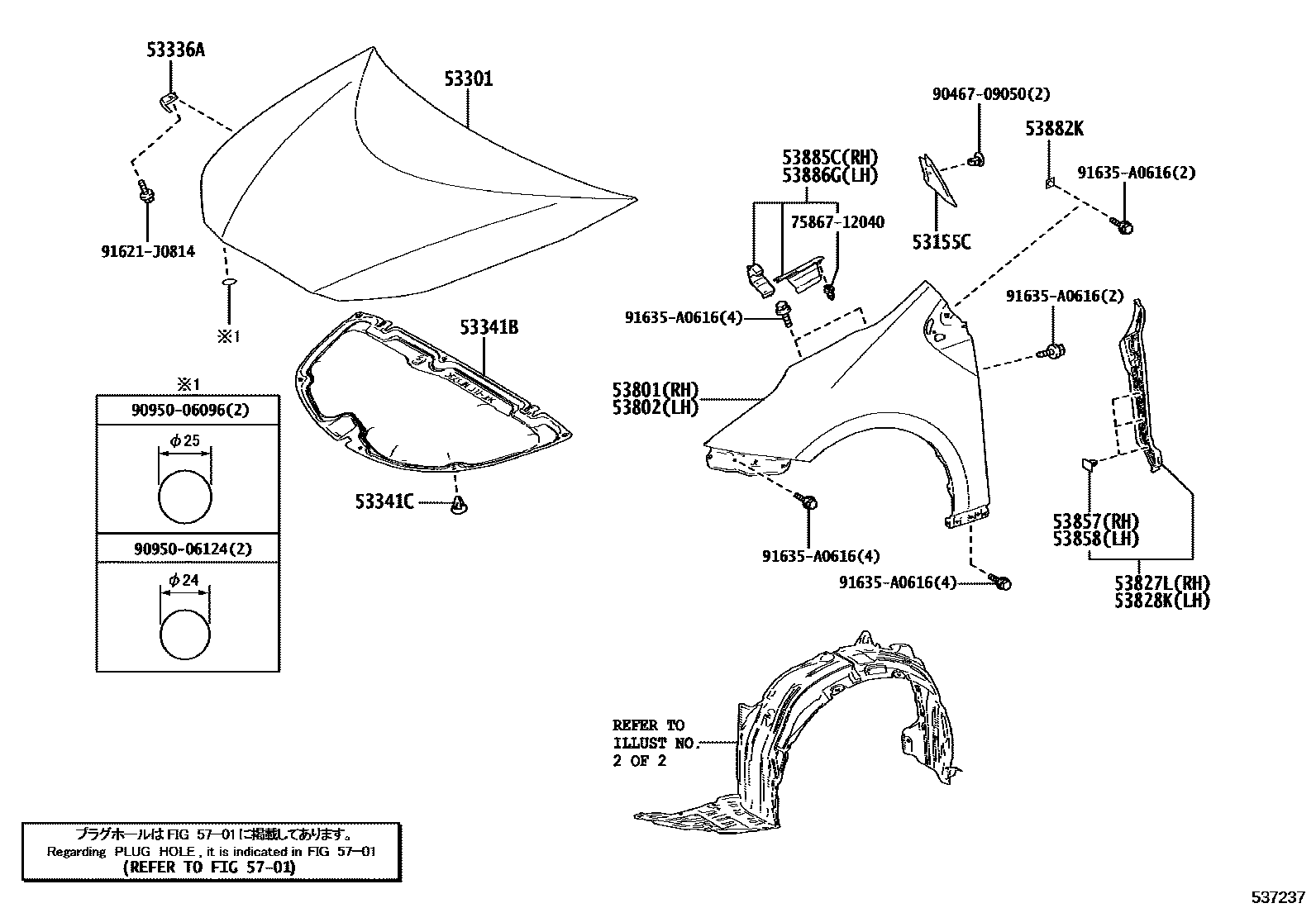

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-47010iZVW50¥900201511-201812

53301HOOD SUB-ASSY

main53301-47110iZVW5#¥49,000201511-201812

53336ABRACKET, HOOD STAY

main53336-47010iZVW50¥270201511-201812

53341BINSULATOR, HOOD

main53341-47040iZVW50¥9,000201511-201904

sub53341-47041¥7,500

main53341-47041iZVW5#¥7,500201905

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZVW5#¥120201511-201812

53801FENDER SUB-ASSY, FRONT RH

main53801-47080iZVW50¥29,700201511-201812

53802FENDER SUB-ASSY, FRONT LH

main53802-47100iZVW50¥29,700201511-201812

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-47050iZVW50¥2,330201511-201812

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-47070iZVW50¥2,330201511-201812

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iZVW50¥100201511-201812

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iZVW50¥100201511-201812

53882KSEAL, FRONT FENDER

main53882-33060iZVW50¥60201511-201812

53885CSEAL, FENDER APRON MUDGUARD, RH

main53807-47020iZVW50¥1,290201511-201812

53886GSEAL, FENDER APRON MUDGUARD, LH

main53808-47020iZVW50¥1,290201511-201812

5701

7586712040MOULDING, FRONT PANEL

main75867-12040¥90

9046709050

main90467-09050¥120

9095006096

main90950-06096¥100

9095006124

main90950-06124¥90

91621J0814

main91621-J0814¥60

91635A0616

main91635-A0616¥60

21 parts on this diagram · 2 diagrams in section
