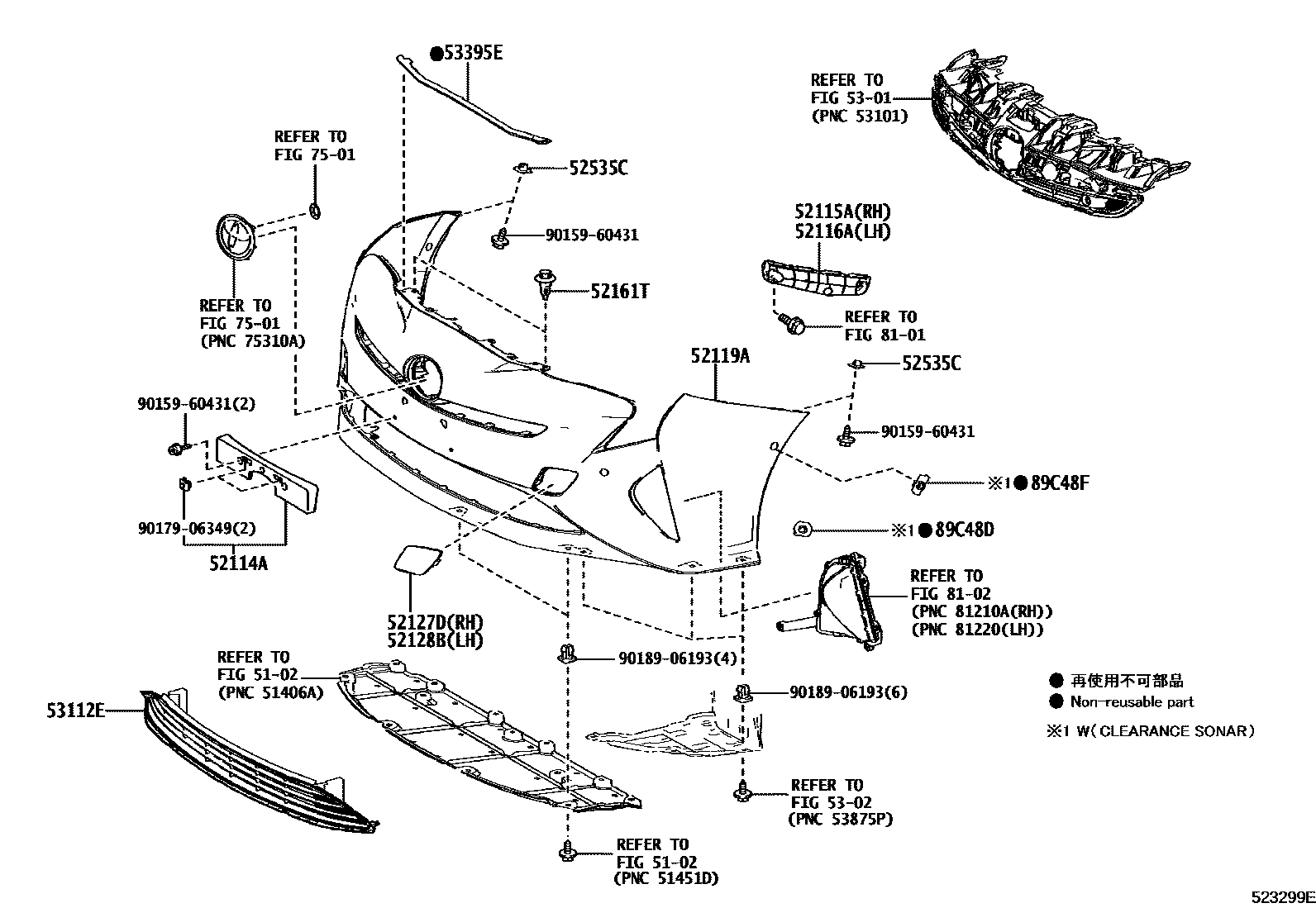

FRONT BUMPER & BUMPER STAY
5102
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,CHILE SPEC&CLEARANCE & BACK SONAR-WITH
52161TPIECE, FRONT BUMPER
sub52161-0K040
52535CRETAINER, FRONT BUMPER SIDE
5301
5302
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,SINGAPORE SPEC
7501
8101
8102
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218,RH
CLEARANCE & BACK SONAR-WITH,BLACKISH AGEHA GF.,221,RH
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040,RH
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070,RH
CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089,RH
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7,RH
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3,RH
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5,RH
CLEARANCE & BACK SONAR-WITH,STEEL BLONDE ME.,4X1,RH
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8X7,RH
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218,LH
CLEARANCE & BACK SONAR-WITH,BLACKISH AGEHA GF.,221,LH
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040,LH
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070,LH
CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089,LH
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7,LH
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3,LH
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5,LH
CLEARANCE & BACK SONAR-WITH,STEEL BLONDE ME.,4X1,LH
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8X7,LH
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040,LH
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070,LH
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7,LH
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3,LH
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218,LH
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED,3T7,LH
CLEARANCE & BACK SONAR-WITH,STEEL BLONDE,4X1,LH
CLEARANCE & BACK SONAR-WITH,THERMO-TECT LIME GREEN,6W7,LH
CLEARANCE & BACK SONAR-WITH,DK.BLUE M.M.,8W7,LH
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040,RH
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070,RH
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7,RH
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3,RH
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218,RH
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED,3T7,RH
CLEARANCE & BACK SONAR-WITH,STEEL BLONDE,4X1,RH
CLEARANCE & BACK SONAR-WITH,THERMO-TECT LIME GREEN,6W7,RH
CLEARANCE & BACK SONAR-WITH,DK.BLUE M.M.,8W7,RH
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040,RH
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070,RH
CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089,RH
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7,RH
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3,RH
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218,RH
CLEARANCE & BACK SONAR-WITH,BLACKISH AGEHA GF.,221,RH
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED,3T7,RH
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5,RH
CLEARANCE & BACK SONAR-WITH,STEEL BLONDE,4X1,RH
CLEARANCE & BACK SONAR-WITH,THERMO-TECT LIME GREEN,6W7,RH
CLEARANCE & BACK SONAR-WITH,FROSTY GREEN MC.,781,RH
CLEARANCE & BACK SONAR-WITH,DK.BLUE M.M.,8W7,RH
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8X7,RH
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040,LH
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070,LH
CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089,LH
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7,LH
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3,LH
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218,LH
CLEARANCE & BACK SONAR-WITH,BLACKISH AGEHA GF.,221,LH
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED,3T7,LH
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5,LH
CLEARANCE & BACK SONAR-WITH,STEEL BLONDE,4X1,LH
CLEARANCE & BACK SONAR-WITH,THERMO-TECT LIME GREEN,6W7,LH
CLEARANCE & BACK SONAR-WITH,FROSTY GREEN MC.,781,LH
CLEARANCE & BACK SONAR-WITH,DK.BLUE M.M.,8W7,LH
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8X7,LH
9015960431
main90159-60431
9017906349
main90179-06349
9018906193
main90189-06193
21 parts on this diagram · 3 diagrams in section
