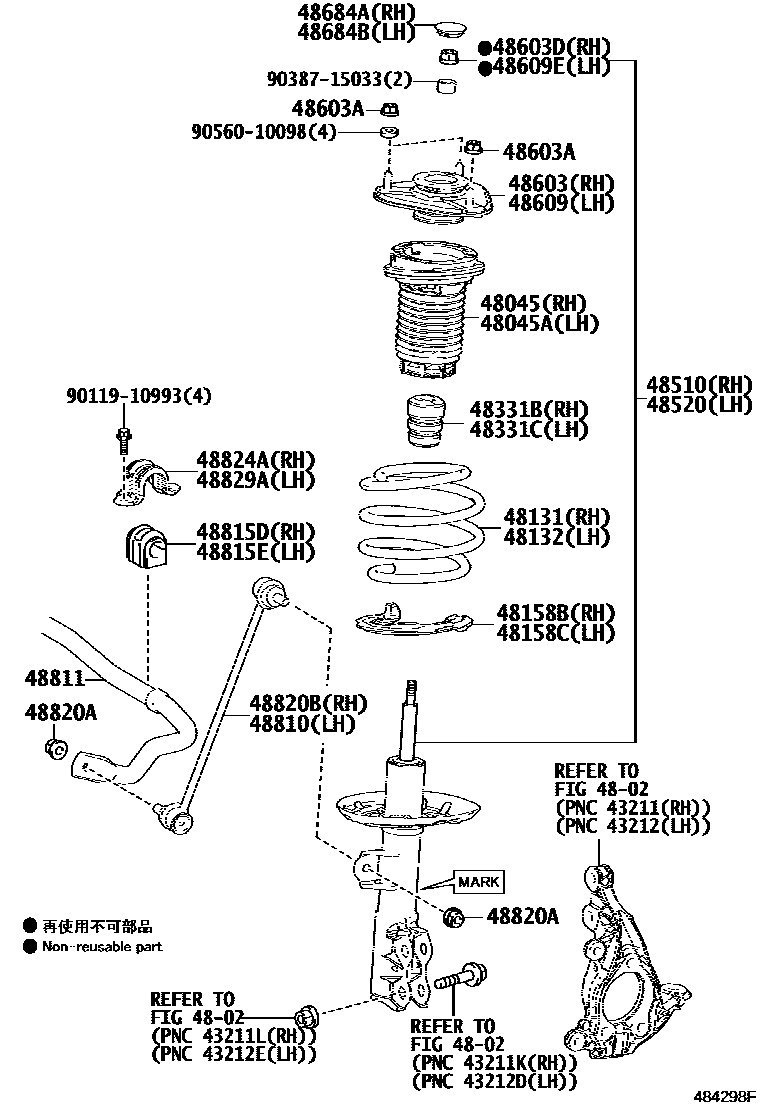

FRONT SPRING & SHOCK ABSORBER

4802

48045SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR

main48045-47010i201511-201612

main48045-47011i201701-201812

48045ASEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR

main48045-47010i201511-201612

main48045-47011i201701-201812

48131SPRING, FRONT COIL, RH

main48131-12G00i201812-202007

main48131-12G80i202007

main48131-12G20supersedes 48131-47160i201812

ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&FRONT WHEEL BRAKE-PAD MARK = AK NS369H

main48131-47200supersedes 48131-47160i201511-201812

ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM

48132SPRING, FRONT COIL, LH

main48131-12G00i201812-202007

main48131-12G80i202007

main48131-12G20supersedes 48131-47160i201812

ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&FRONT WHEEL BRAKE-PAD MARK = AK NS369H

main48131-47200supersedes 48131-47160i201511-201812

ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-47020i201511-201812

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-47020i201812

48331BBUMPER, FRONT SPRING, RH

main48331-10120i201812

main48331-47040supersedes 48331-47030i201812

ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&FRONT WHEEL BRAKE-PAD MARK = AK NS369H

48331CBUMPER, FRONT SPRING, LH

main48331-10120i201812

main48331-47040supersedes 48331-47030i201511-201812

ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80A80i201812

MARK 48510-47460

main48510-80815supersedes 48510-80A77i201511-201812

MARK 48510-47300,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)

main48510-80A78supersedes 48510-80A77i201812

MARK 48510-47440,FRONT WHEEL BRAKE-PAD MARK = AK NS369H&TIRE & DISC WHEEL-215/45R17,7J,ALUMINUM

main48510-80A79supersedes 48510-80A77i201812

MARK 48510-47450,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-215/45R17,7J,ALUMINUM

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80640i201812

MARK 48520-47460

main48520-80492supersedes 48520-80637i201511-201812

MARK 48520-47300,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&FRONT WHEEL BRAKE-PAD MARK= AK NS369H&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM

main48520-80638supersedes 48520-80637i201812

MARK 48520-47440,FRONT WHEEL BRAKE-PAD MARK = AK NS369H&TIRE & DISC WHEEL-215/45R17,7J,ALUMINUM

main48520-80639supersedes 48520-80637i201812

MARK 48520-47450,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-47060i201511-201812

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10029×6i201511-201812

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007i201511-201812

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-47060i201511-201812

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007i201511-201812

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52010i201511-201812

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52010i201511-201812

48810LINK ASSY, FRONT STABILIZER, LH

main48820-47040i201511-201812

48811BAR, STABILIZER, FRONT

main48811-12B00i201812

main48811-47080i201511-201812

main48811-47090i201812

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-47040i201511-201812

main48815-47050i201812

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-47040i201511-201812

main48815-47050i201812

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241×4i201511-201812

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-47040i201511-201812

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-47020i201511-201812

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-47020i201511-201812

9011910993

main90119-10993

9038715033

main90387-15033

9056010098

main90560-10098

29 parts on this diagram · 2 diagrams in section
