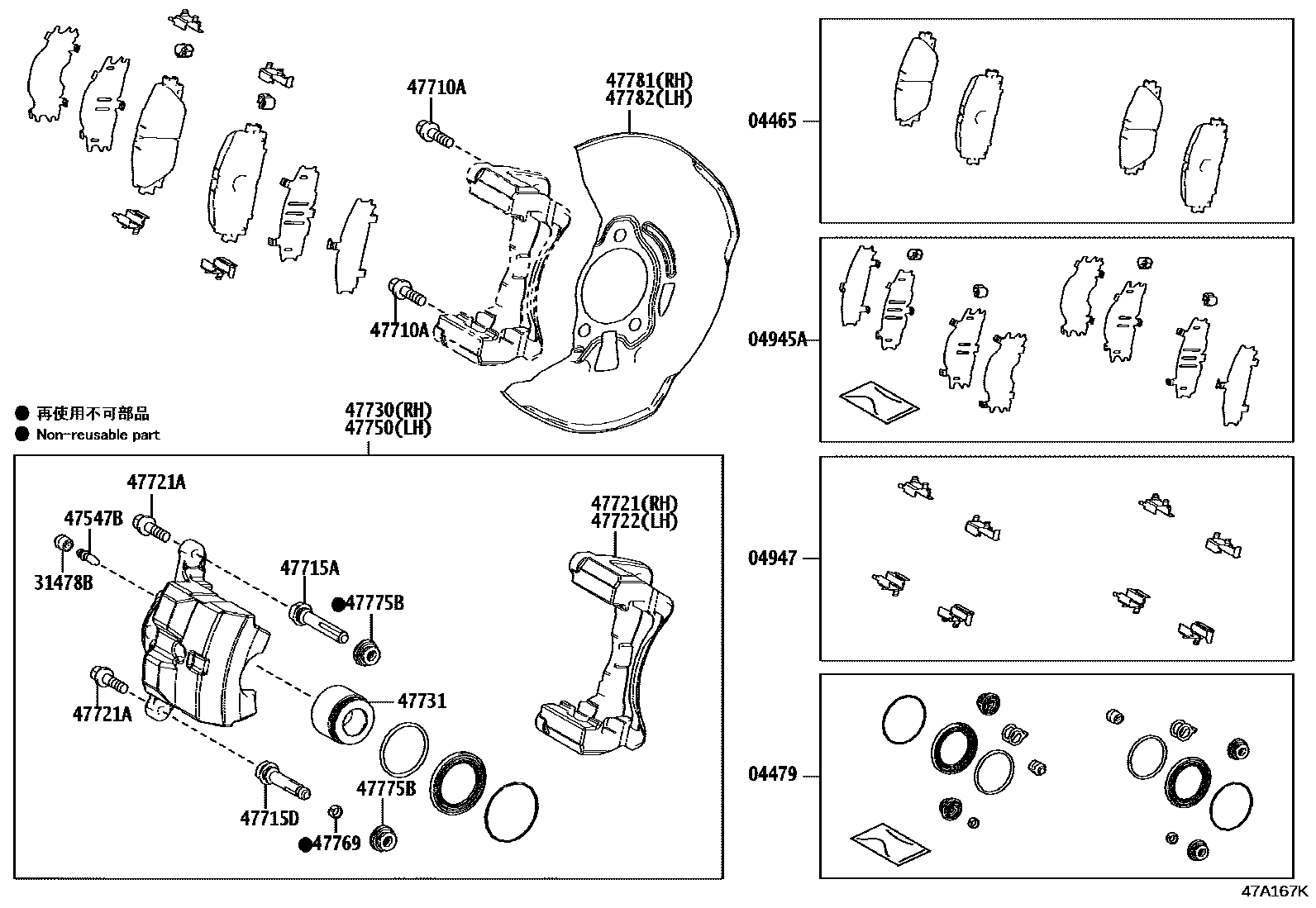

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-47090iZVW50201511-201609

MARK AK NS380H

sub04465-47100

main04465-47100iZVW50201609-201812

MARK AK NS380H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-47030iZVW5#201511-201812

04945ASHIM KIT, ANTI SQUEAL, FRONT(WITH PAD WEAR INDICATOR)

main04945-47030iZVW50201511-202211

04947FITTING KIT, DISC BRAKE, FRONT

main04947-47020iZVW50201511-201812

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-50020iZVW50201511-201812

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZVW50201511-201812

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZVW50201511-201812

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iZVW50201511-201812

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iZVW50201511-201812

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-47060iZVW5#201511-201812

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iZVW50201511-201812

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-47060iZVW50201511-201812

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-47060iZVW50201511-201812

47731PISTON, FRONT DISC BRAKE

main47731-47060iZVW50201511-201812

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-47060iZVW50201511-201812

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iZVW50201511-201812

47775BBOOT, BUSH DUST, NO.1

main47775-52190iZVW50201511-201812

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10080iZVW5#201804-201812

main47781-47040iZVW50201511-201803

sub47781-10080

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10080iZVW50201804-201812

main47782-47030iZVW50201511-201803

sub47782-10080

19 parts on this diagram · 1 diagram in section
