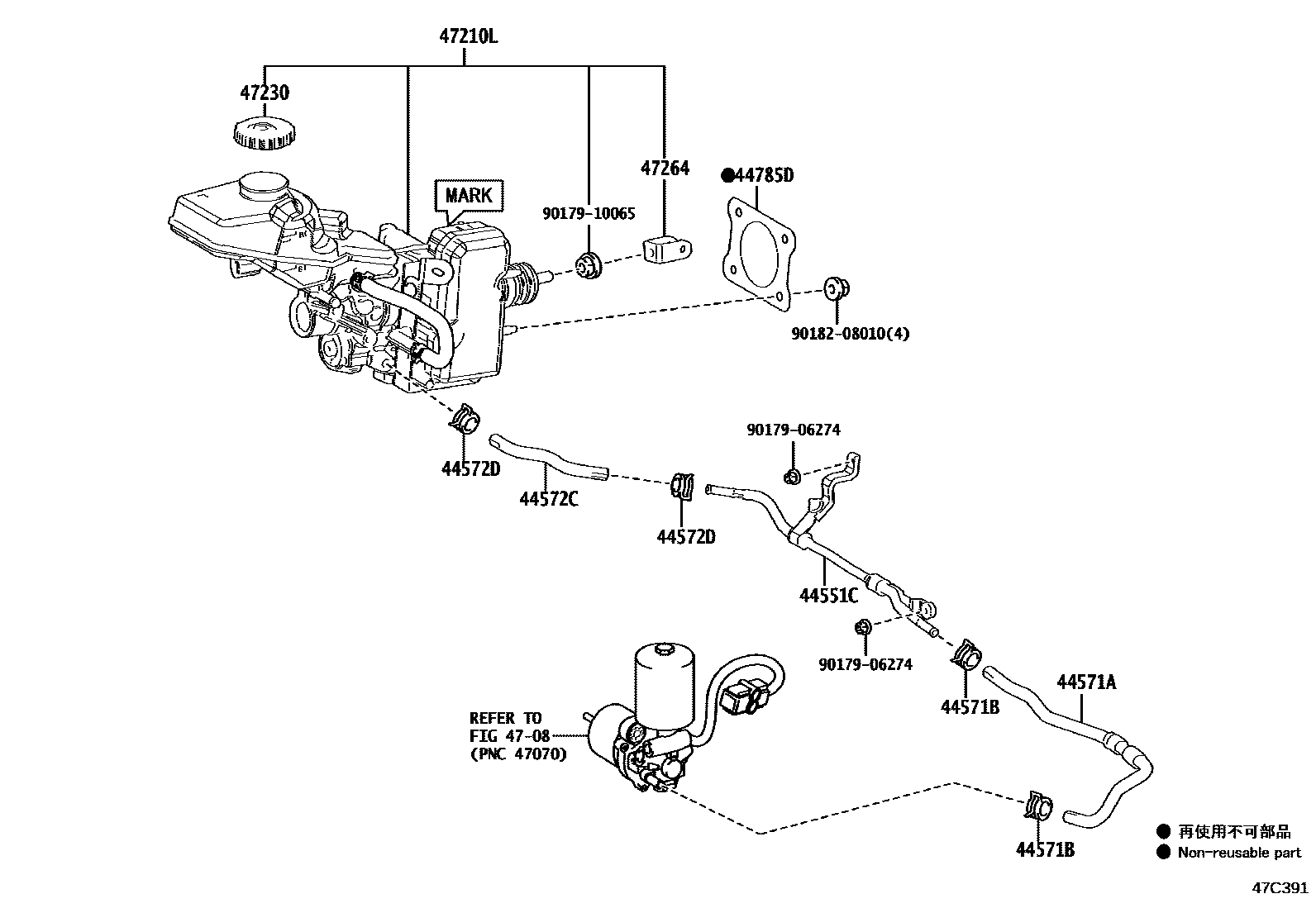

BRAKE MASTER CYLINDER

0001 1 0002 1

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-47050iZVW50..LHD201511-201812

main44551-47060iZVW50..RHD201511-201812

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-47070iZVW50..LHD201511-201812

main44571-47080iZVW5#..RHD201511-201812

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main96137-41501iZVW5#201511-201812

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-47050iZVW50..LHD201511-201812

main44572-47060iZVW50..RHD201511-201812

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main96137-41501iZVW50201511-201812

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040iZVW50201511-201812

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-47560iZVW50..LHD201511-201710

sub47050-47561

main47050-47561iZVW50..LHD201711-201812

main47050-47620iZVW50..RHD201511-201710

sub47050-47621

main47050-47621iZVW50..RHD201711-201812

main47050-47B90iZVW5#..LHD201904-202007

MARK=47210-47C40

sub47050-47E00

main47050-47B90iZVW5#..LHD201812-201904

sub47050-47E00

main47050-47C30iZVW5#..RHD201812-201904

sub47050-47E40

main47050-47C30iZVW5#..RHD201904-202007

MARK=47210-47C50

sub47050-47E40

main47050-47E00iZVW5#..LHD201904-202007

MARK=47210-47C20

main47050-47E40iZVW5#..RHD201904-202007

MARK=47210-47C30

main47050-47G40iZVW5#..LHD202007

MARK=47210-47D70

main47050-47G80iZVW5#..RHD202007

MARK=47210-47D80

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33330iZVW5#202002-202006

sub47230-47090

main47230-47090iZVW5#201511-202002

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-47010iZVW50201511-201812

9017906274

main90179-06274

9017910065

main90179-10065

9018208010

main90182-08010
