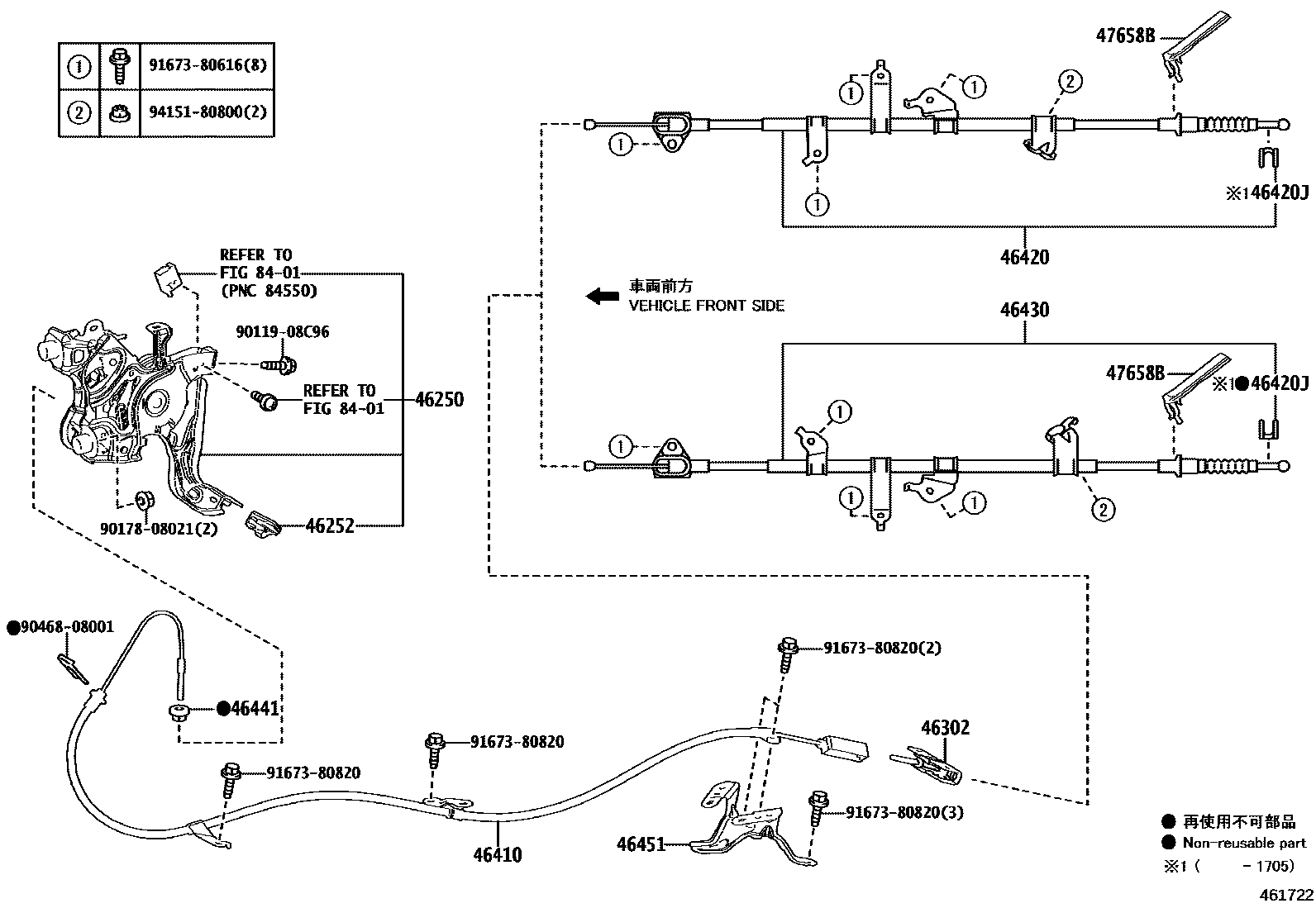

PARKING BRAKE & CABLE

0001 1 0002 1

46250PEDAL ASSY, PARKING BRAKE W/O CABLE

main46250-33010iZVW50201703-201812

main46250-47040iZVW50201511-201702

sub46250-33010

46252PAD, PARKING PEDAL

main46252-47020iZVW50201511-201812

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-47020iZVW5#201511-201812

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-47140iZVW50..LHD201511-201812

main46410-47150iZVW50..RHD201511-201812

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-47110iZVW50201511-201705

W(PNC 46420J)

main46420-47120iZVW50201705-201812

W/O(PNC 46420J)

main46420-47120iZVW5#201812

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46423-47020iZVW50201511-201705

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-47110iZVW50201511-201705

W(PNC 46420J)

main46430-47120iZVW50201705-201812

W/O(PNC 46420J)

main46430-47120iZVW5#201812

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iZVW50201511-201812

46451BRACKET, CABLE SUPPORT

main46451-47030iZVW50201511-201812

47658BPROTECTOR, PARKING BRAKE LEVER

main47658-47010iZVW50201511-201812

8401

9011908C96

main90119-08C96

9017808021

main90178-08021

9046808001

main90468-08001

9167380616

main91673-80616

9167380820

main91673-80820

9415180800

main94151-80800

17 parts on this diagram · 2 diagrams in section
