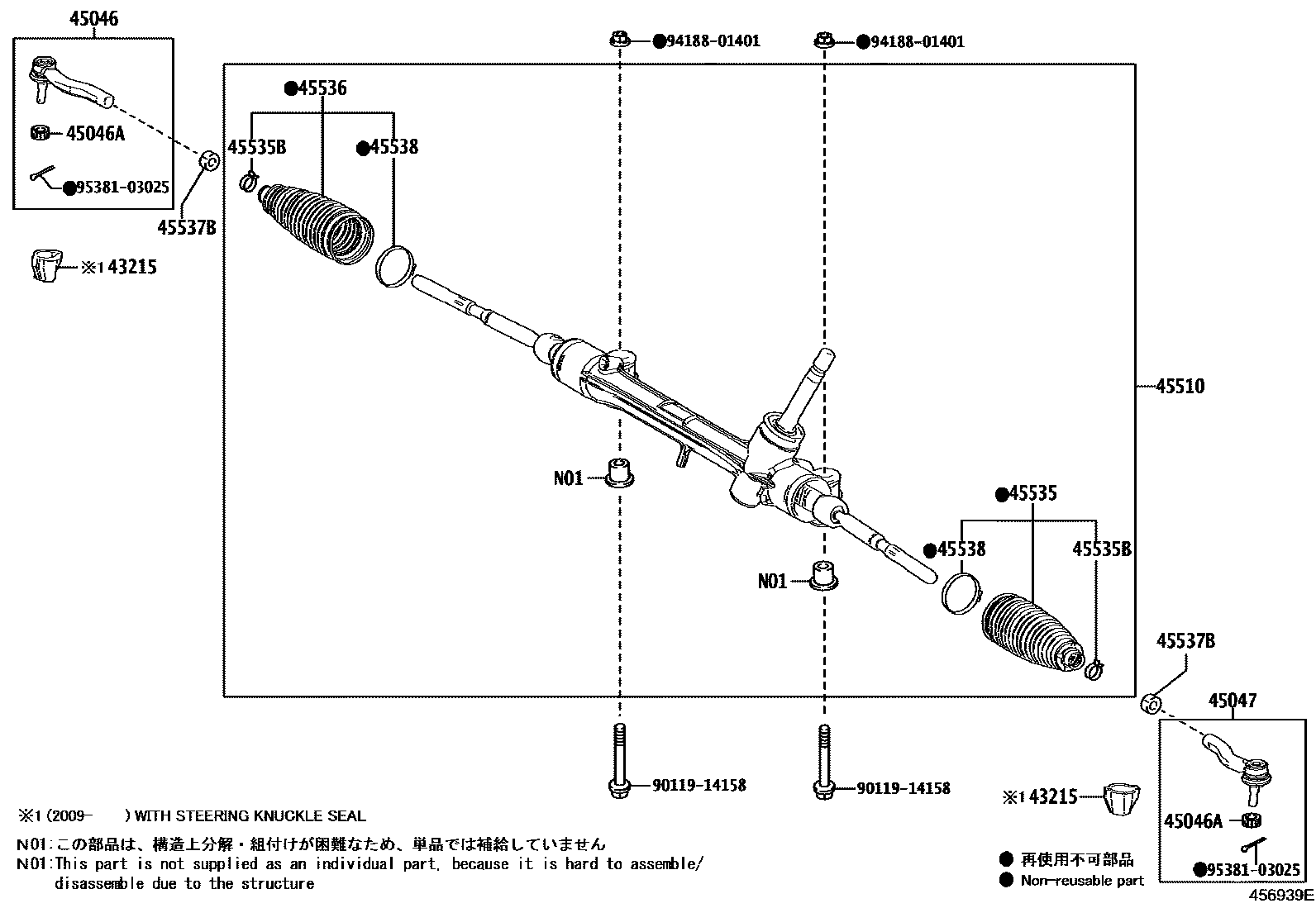

FRONT STEERING GEAR & LINK

0001 1 0002 1

43215SEAL, STEERING KNUCKLE

main43215-12010iZVW5#¥210202009

45046END SUB-ASSY, TIE ROD, RH

main45046-49255iZVW50¥2,690201511-201812

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iZVW5#¥130201511-201812

45047END SUB-ASSY, TIE ROD, LH

main45047-49195iZVW50¥2,690201511-201812

45510GEAR ASSY, STEERING

main45510-47140iZVW50..RHD¥32,900201511-201812

main45510-47160iZVW5#..LHD201511-201812

45535BOOT, STEERING RACK, NO.1

main45535-59075iZVW50¥790201511-201812

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iZVW50¥320201511-201812

45536BOOT, STEERING RACK, NO.2

main45535-59075iZVW50¥790201511-201812

45537BNUT, RACK END LOCK

main90178-16001iZVW50¥120201511-201812

45538RETAINER, STEERING RACK BOOT

main45538-48020iZVW50¥240201511-201812

9011914158

main90119-14158¥430

9418801401

main94188-01401¥190

9538103025

main95381-03025¥130

13 parts on this diagram · 2 diagrams in section
