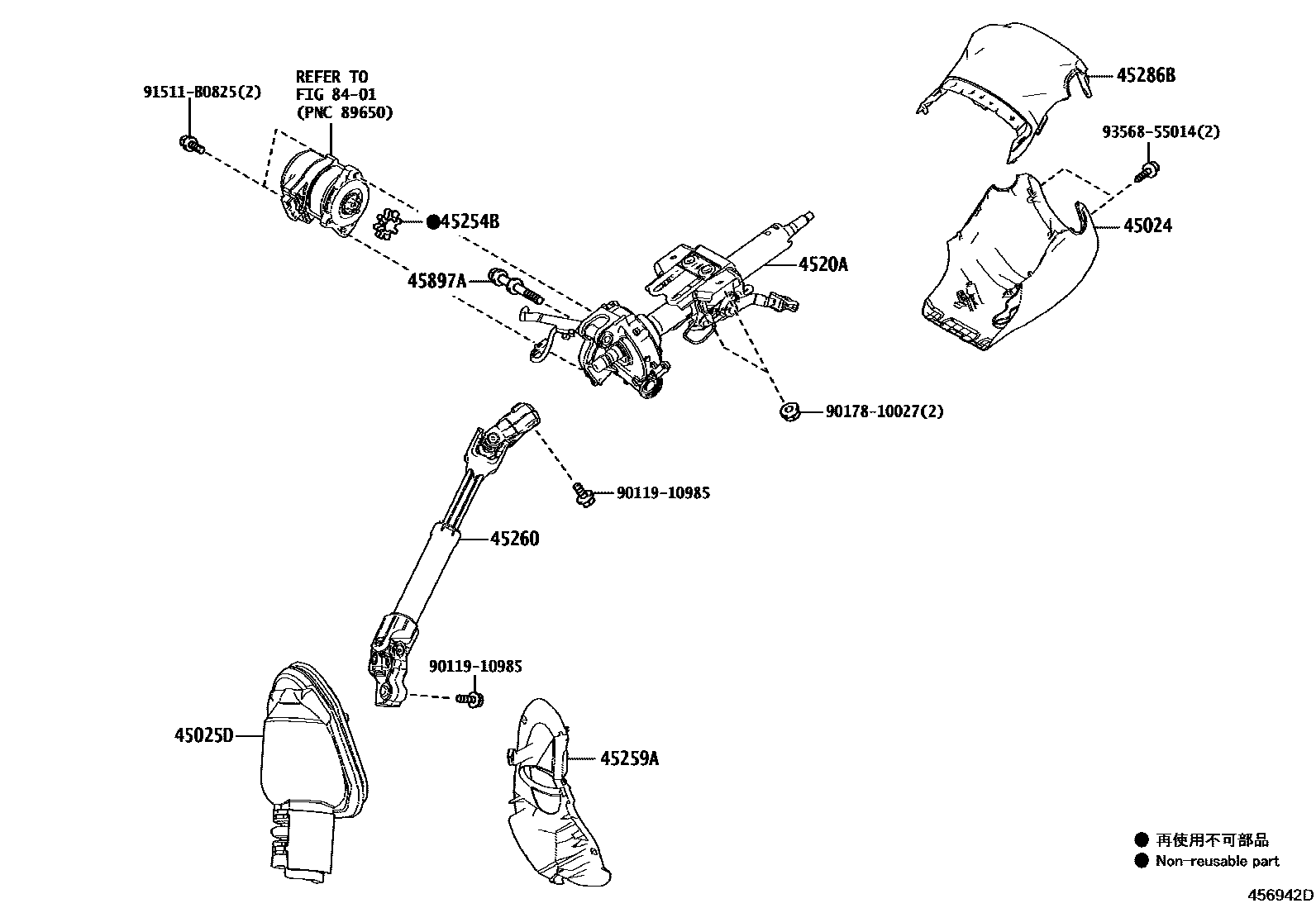

STEERING COLUMN & SHAFT

0001 1 0002 1

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-47020-C0iZVW5#201511-201812

BLACK,TRIM1#,2#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-47030iZVW50..RHD201511-201706

sub45025-47050

main45025-47040iZVW50..LHD201511-201706

sub45025-47060

main45025-47050iZVW5#..RHD201707-201812

main45025-47060iZVW5#..LHD201707-201812

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-47050iZVW50..RHD201511-201807

sub4520A-47051

main4520A-47051iZVW50..RHD201808-201812

main4520A-47070iZVW50..LHD201511-201807

sub4520A-47071

main4520A-47071iZVW50..LHD201808-201812

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iZVW5#201511-201812

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-47040iZVW5#..RHD201511-202109

sub45259-47041

main45259-47041iZVW5#..RHD202110

main45259-47050iZVW5#..LHD201511-202109

sub45259-47051

main45259-47051iZVW5#..LHD202110

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-47090iZVW5#..LHD201511-201812

main45260-47100iZVW50..RHD201511-201812

45286BCOVER, STEERING COLUMN, UPR

main45286-47050-C0iZVW50201511-201812

BLACK,TRIM1#,2#

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iZVW50201511-201812

8401

9011910985

main90119-10985

9017810027

main90178-10027

91511B0825

main91511-B0825

9356855014

main93568-55014

13 parts on this diagram · 2 diagrams in section
