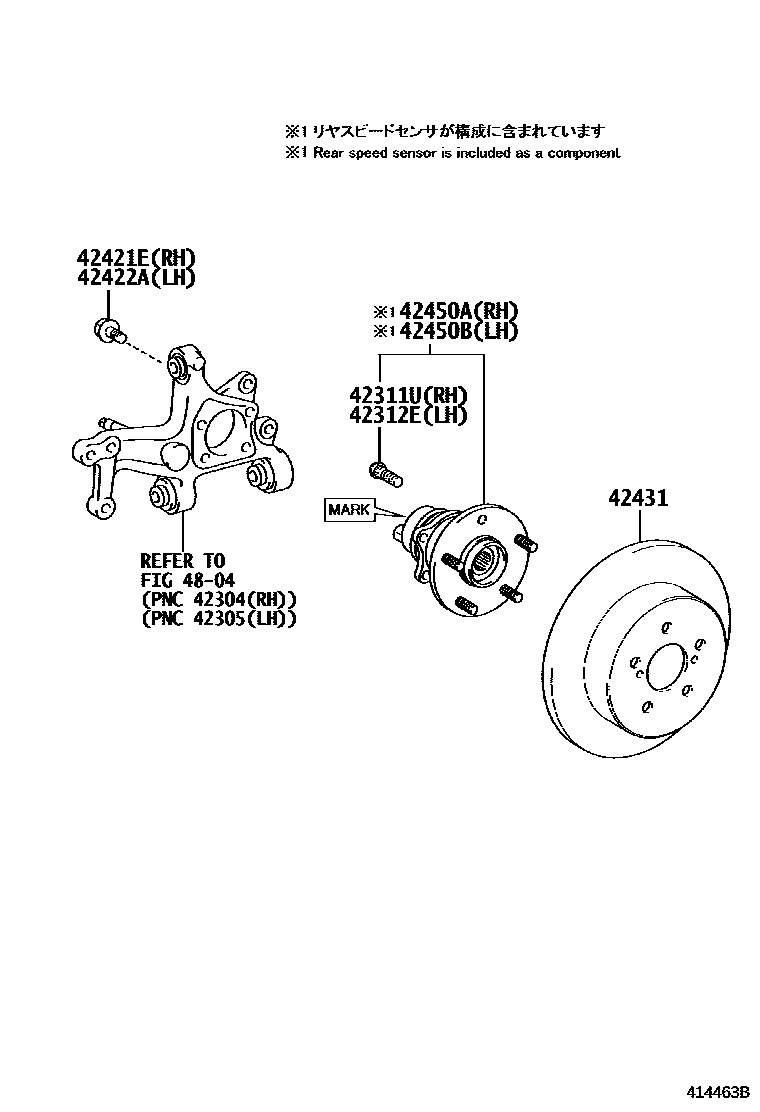

REAR AXLE SHAFT & HUB

0001 1 0002 1REAR AXLE HUB 0003 1REAR AXLE SHAFT

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iZVW50201511-201812

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iZVW50201511-201812

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iZVW50201511-201704

main90105-12406×4iZVW50201705-201812

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iZVW50201511-201704

main90105-12406×4iZVW50201705-201812

42431DISC, REAR

main42431-12310×2iZVW5#201812

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-47030iZVW55201812

main42450-12210iZVW50201911-202212

MARK=DENSO

sub42450-12211

main42450-12220iZVW50201805-201812

MARK=DENSO

main42450-76020iZVW50201511-201812

MARK=AISIN

sub42450-76021

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-47030iZVW55201812

main42450-12210iZVW50201911-202212

MARK=DENSO

sub42450-12211

main42450-12220iZVW50201805-201812

MARK=DENSO

main42450-76020iZVW50201812-202212

MARK=AISIN

sub42450-76021

4804

8 parts on this diagram · 3 diagrams in section
