OIL COOLER & TUBE (HEV OR BEV OR FCEV)

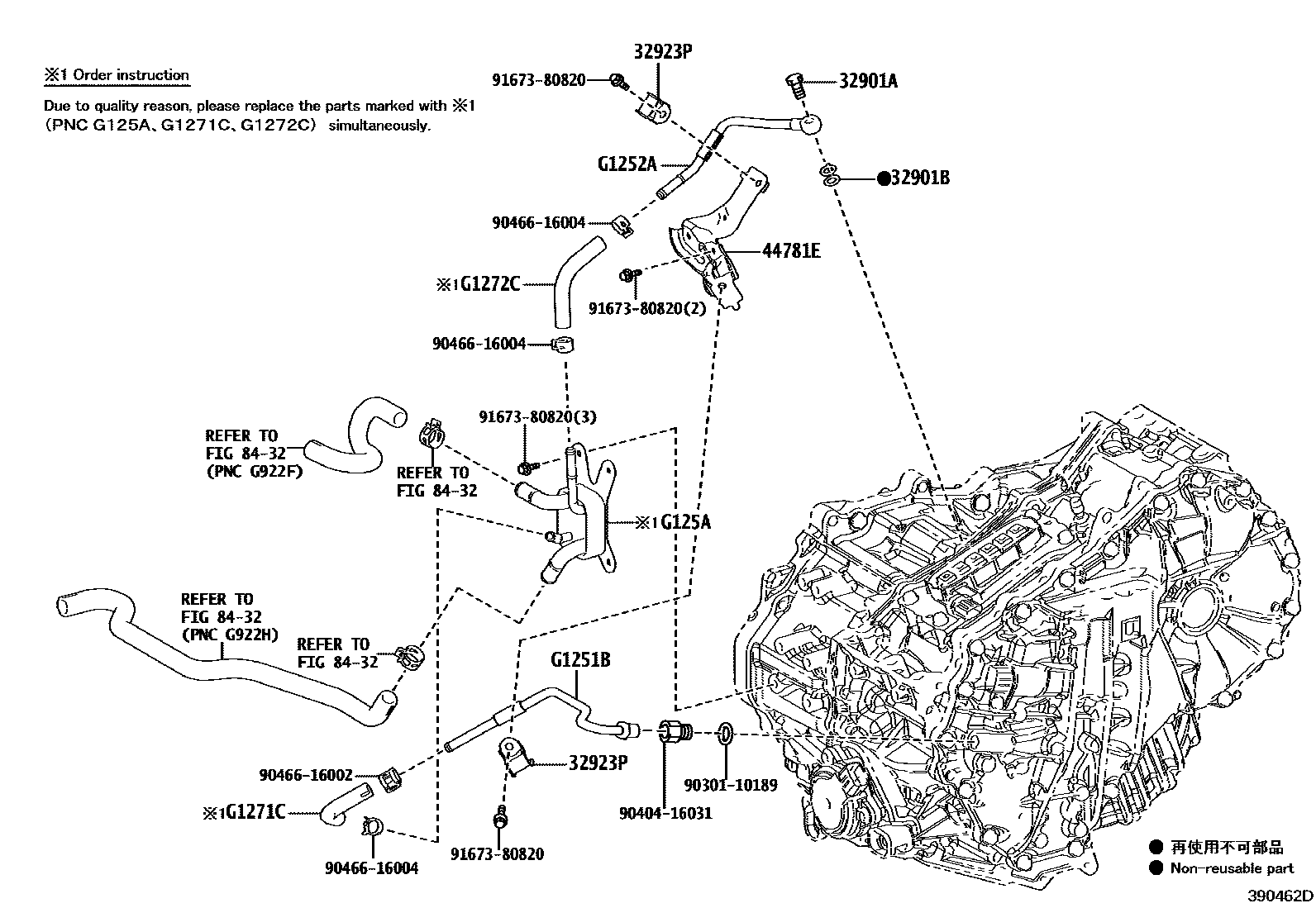

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i¥390201511-201812

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i¥80201511-201812

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040i¥200201511-201812

44781EBRACKET, HOSE

main44781-47010i¥820201511-201812

8432

G1251BPIPE, MOTOR COOLING, NO.1

mainG125147010i201511-201812

G1252APIPE, MOTOR COOLING, NO.2

mainG125247010i201511-201812

G125ACOOLER, MOTOR COOLING

mainG125A47010i201511-201812

G1271CHOSE, MOTOR COOLING, NO.1

mainG127147010i201511-201812

G1272CHOSE, MOTOR COOLING, NO.2

mainG127247010i201511-201812

9030110189

main90301-10189¥170

9040416031

main90404-16031¥340

9046616002

main90466-16002¥220

9046616004

main90466-16004¥180

9167380820

main91673-80820¥80

15 parts on this diagram · 1 diagram in section
