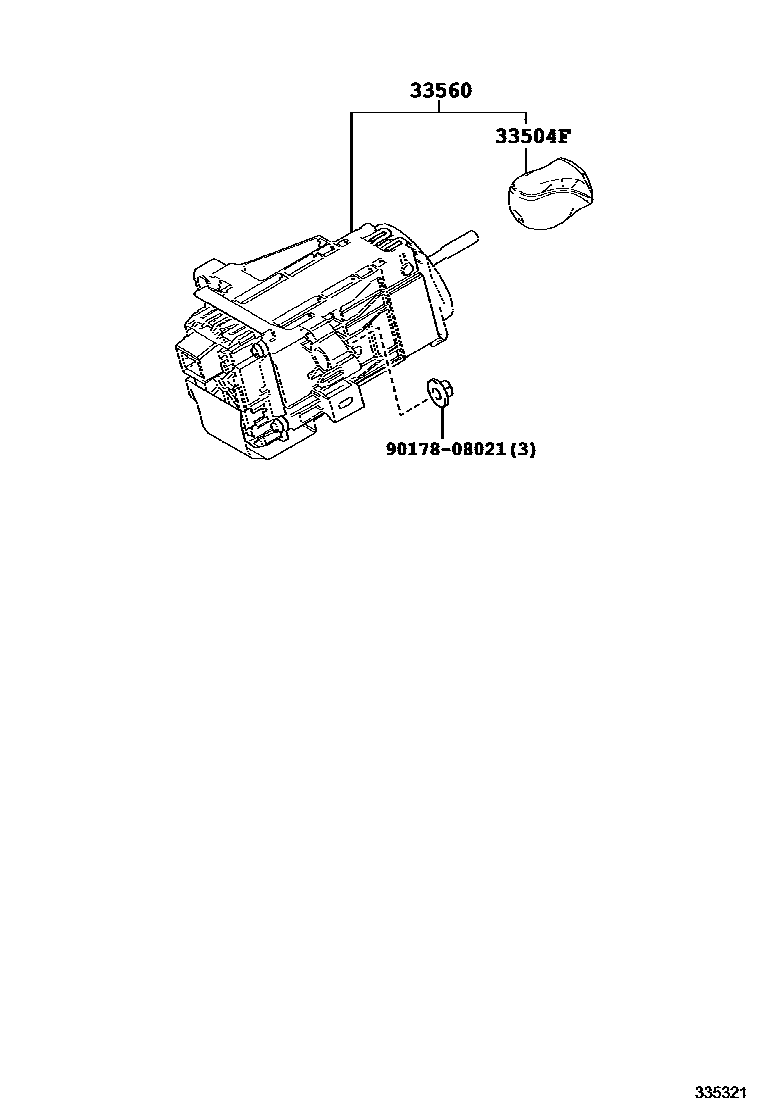

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-47070iZVW50..LHD201511-201812

main33504-47080iZVW50..RHD201511-201812

33560UNIT ASSY, SHIFT LOCK CONTROL

main33550-47090iZVW50..LHD201511-201812

main33550-47100iZVW5#..RHD201812

9017808021

main90178-08021

3 parts on this diagram · 2 diagrams in section
