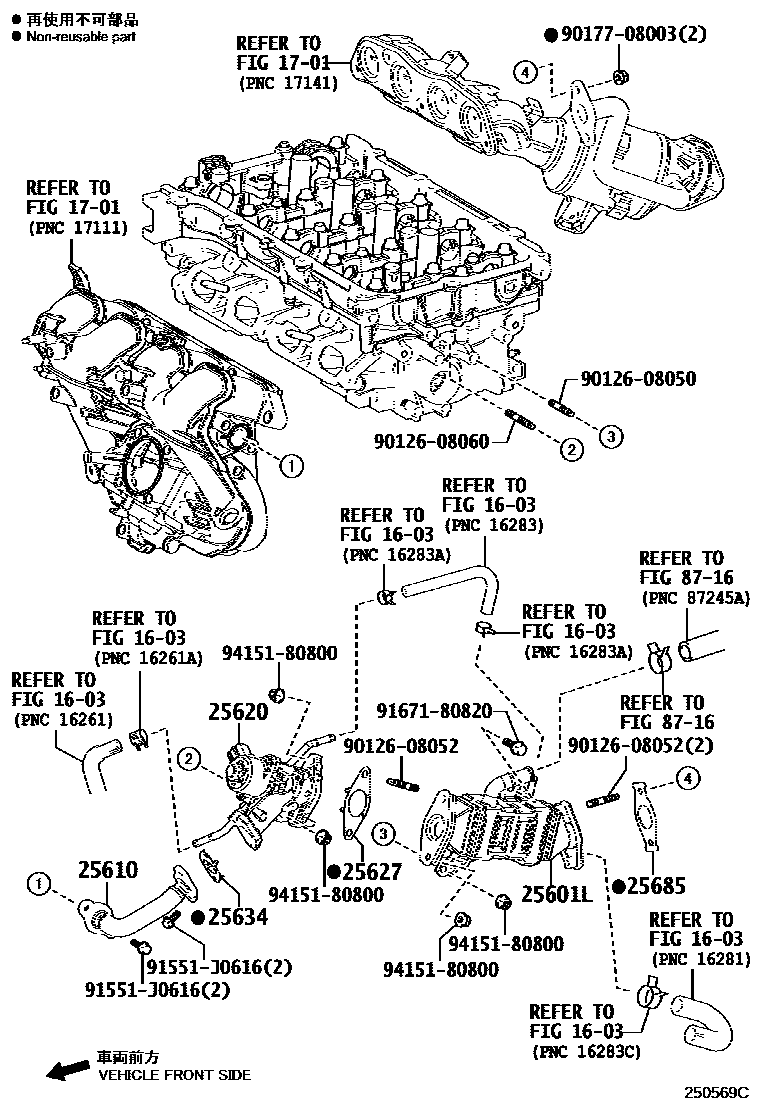

EXHAUST GAS RECIRCULATION SYSTEM
1603
1701
25601LPIPE SUB-ASSY, EGR W/COOLER
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&CHILE SPEC&SUB MUFFLER-WITHOUT(HEAT RECYCLE)
25610PIPE ASSY, EGR
25620VALVE ASSY, EGR
25627GASKET, EGR VALVE
25634GASKET, EGR PIPE
25685GASKET, EGR COOLER, NO.1
8716
9012608050
main90126-08050
9012608052
main90126-08052
9012608060
main90126-08060
9017708003
main90177-08003
91551J0616
main91551-J0616
9167180820
main91671-80820
9415180800
main94151-80800
16 parts on this diagram · 1 diagram in section
