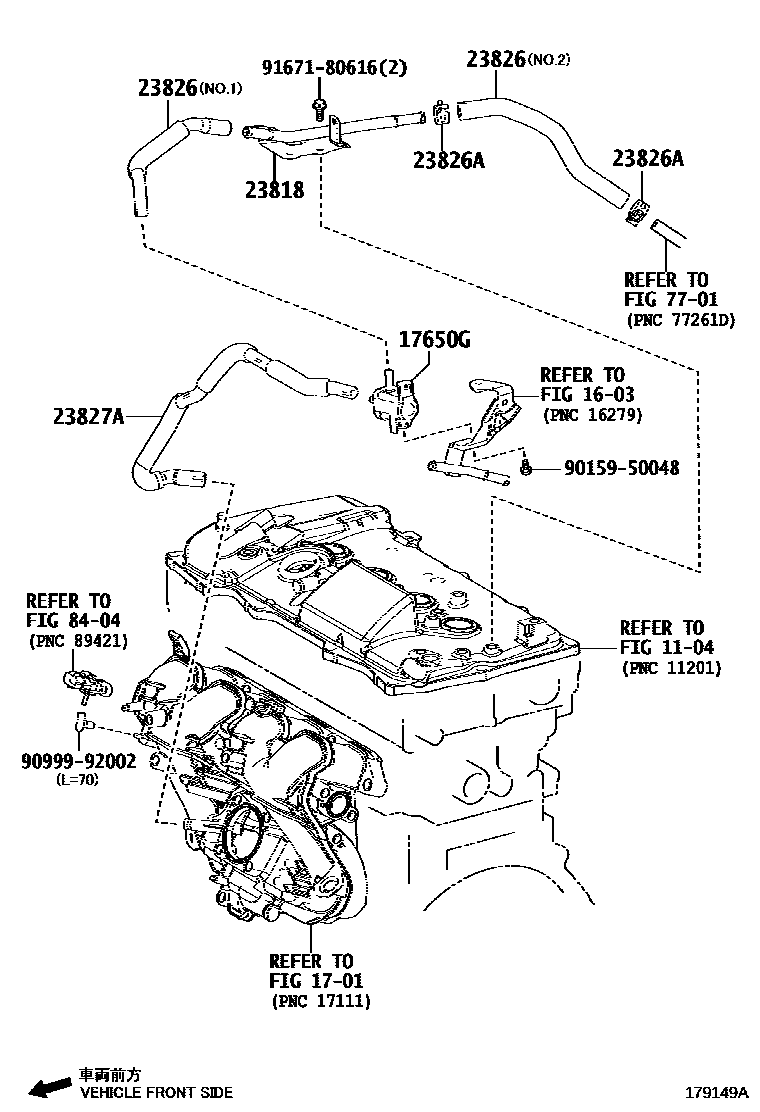

VACUUM PIPING

0001 1 0002 1W(GPF)

1104

1603

1701

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i2ZRFXE..ZVW50201511-201812

23818PIPE, FUEL VAPOR FEED

main23818-37030i2ZRFXE..ZVW50201511-201812

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-37241i2ZRFXE..ZVW5#201511-201812

NO.2

main23826-37250i2ZRFXE..ZVW5#201511-201812

NO.1

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96136-41901i2ZRFXE..ZVW50201511-201812

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37070i2ZRFXE..ZVW50201511-201812

7701

8404

9015950048

main90159-50048

9099992002

main90999-92002

9167180616

main91671-80616

13 parts on this diagram · 2 diagrams in section
