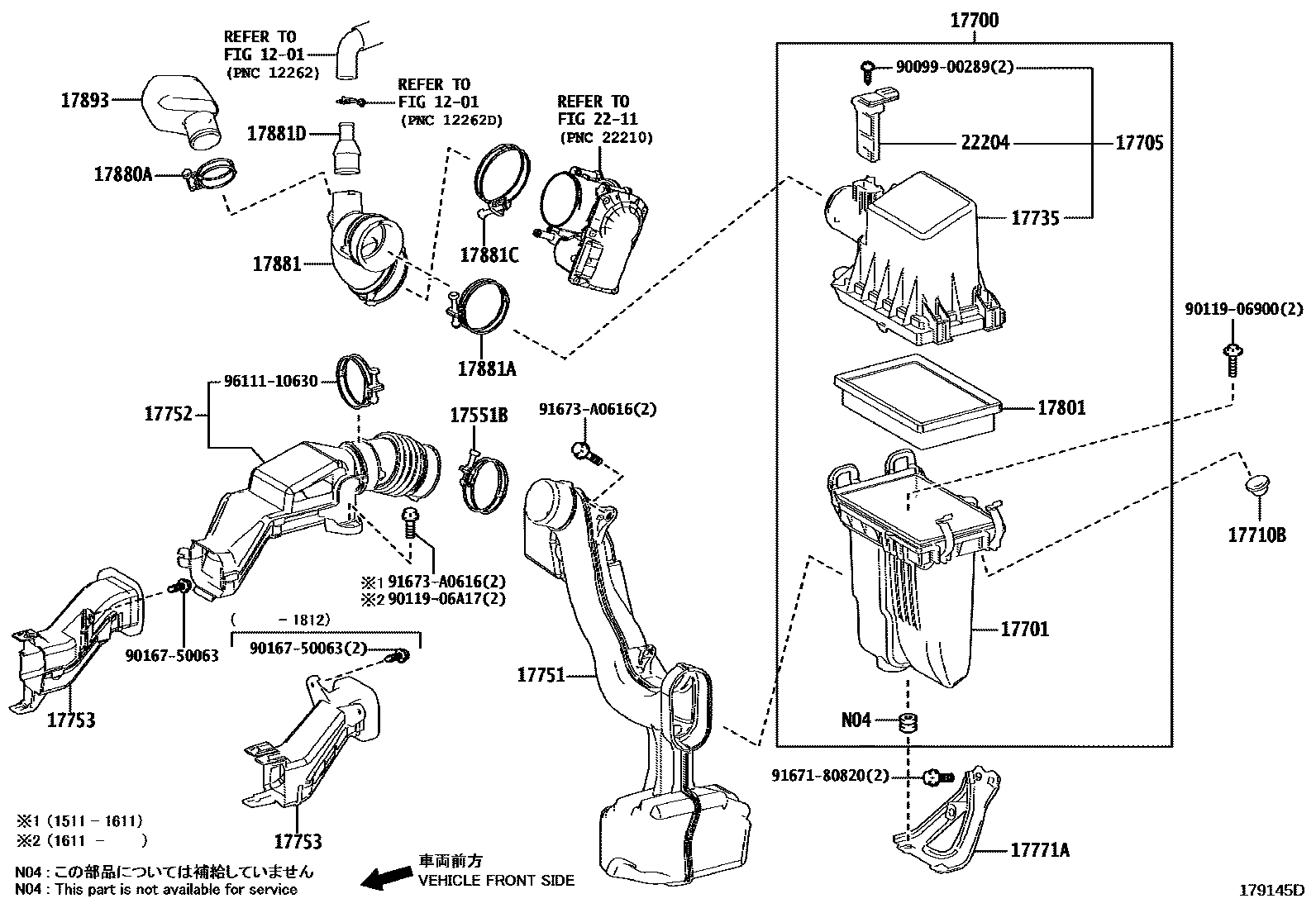

AIR CLEANER
1201VENTILATION HOSE
17551BCLAMP(FOR AIR CLEANER INLET, NO.1)
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17735CAP, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17753INLET, AIR CLEANER, NO.3
17771ABRACKET, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17880ACLAMP, HOSE
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)
17881DTUBE, UNION(FOG AIR CLEANER HOSE)
17893RESONATOR, INTAKE AIR
2211FUEL INJECTION SYSTEM
22204METER SUB-ASSY, INTAKE AIR FLOW
9009900289
main90099-00289
9011906900
main90119-06900
9011906A17
main90119-06A17
9016750063
main90167-50063
9167180820
main91671-80820
91673A0616
main91673-A0616
9611110630
main96111-10630
27 parts on this diagram · 1 diagram in section
