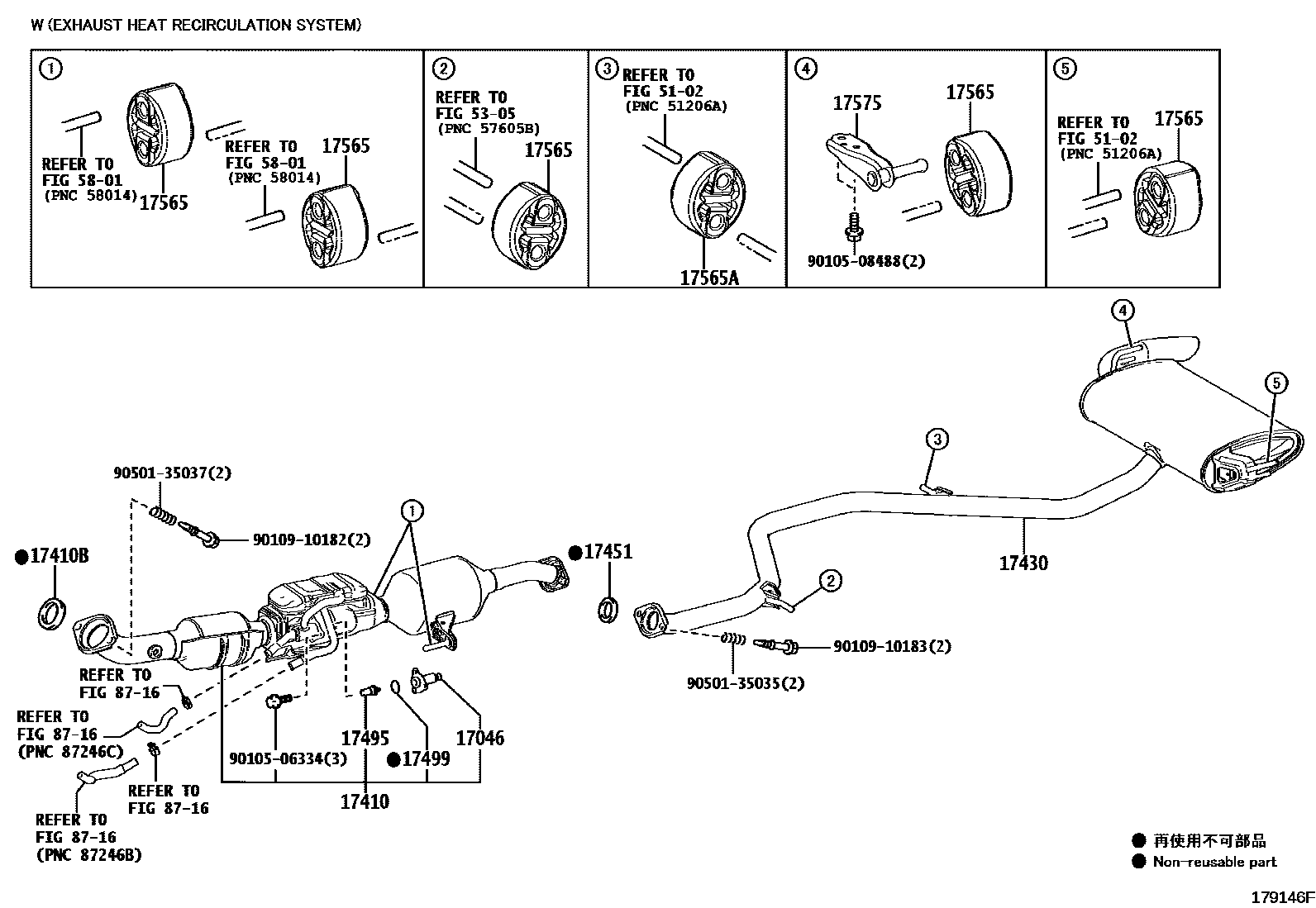

EXHAUST PIPE

0001 1 0002 1 0003 1

17046ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL

main17046-24010i2ZRFXE..ZVW5#201908

main17046-37100i2ZRFXE..ZVW50201511-201908

17410PIPE ASSY, EXHAUST, FRONT

main17410-37A00i2ZRFXE..ZVW50201511-201607

*114=TOYOTA/TL3/Y

sub17410-37B50

main17410-37B50i2ZRFXE..ZVW50201608-201812

*114=TOYOTA/TL3/Y

sub17410-37B52

main17410-37B52i2ZRFXE..ZVW5#201812-201908

*114=TOYOTA/TL3/Y

main17410-37C60i2ZRFXE..ZVW5#201908-202003

*114=TOYOTA/TN4/Y

main17410-37D00i2ZRFXE..ZVW5#202003

*114=TOYOTA/L51/Y

17410BGASKET, EXHAUST PIPE

main17451-28040i2ZRFXE..ZVW50201511-201812

sub17451-28041

17430PIPE ASSY, EXHAUST, TAIL

main17430-37620i2ZRFXE..ZVW50201511-201607

sub17430-37720

main17430-37720i2ZRFXE..ZVW50201608-201812

sub17430-37721

main17430-37721i2ZRFXE..ZVW50201812-201907

sub17430-37A70

main17430-37890i2ZRFXE..ZVW55201812-201907

sub17430-37B10

main17430-37A70i2ZRFXE..ZVW50201908

main17430-37B10i2ZRFXE..ZVW55201908

17451GASKET, EXHAUST PIPE

main17451-23042i2ZRFXE..ZVW5#201511-201812

sub17451-23043

17495ACTUATOR, EXHAUST PIPE GAS CONTROL

main17495-24010i2ZRFXE..ZVW5#201908

main17495-37010i2ZRFXE..ZVW50201511-201908

17499GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR

main17499-24010i2ZRFXE..ZVW5#201908

main17499-37020i2ZRFXE..ZVW5#201511-201908

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040i2ZRFXE..ZVW50201511-201812

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010i2ZRFXE..ZVW50201511-201812

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-37030i2ZRFXE..ZVW50201511-201812

5102

5305

5801

8716

9010506334

main90105-06334

9010508488

main90105-08488

9010910182

main90109-10182

9010910183

main90109-10183

9050135035

main90501-35035

9050135037

main90501-35037

20 parts on this diagram · 3 diagrams in section
