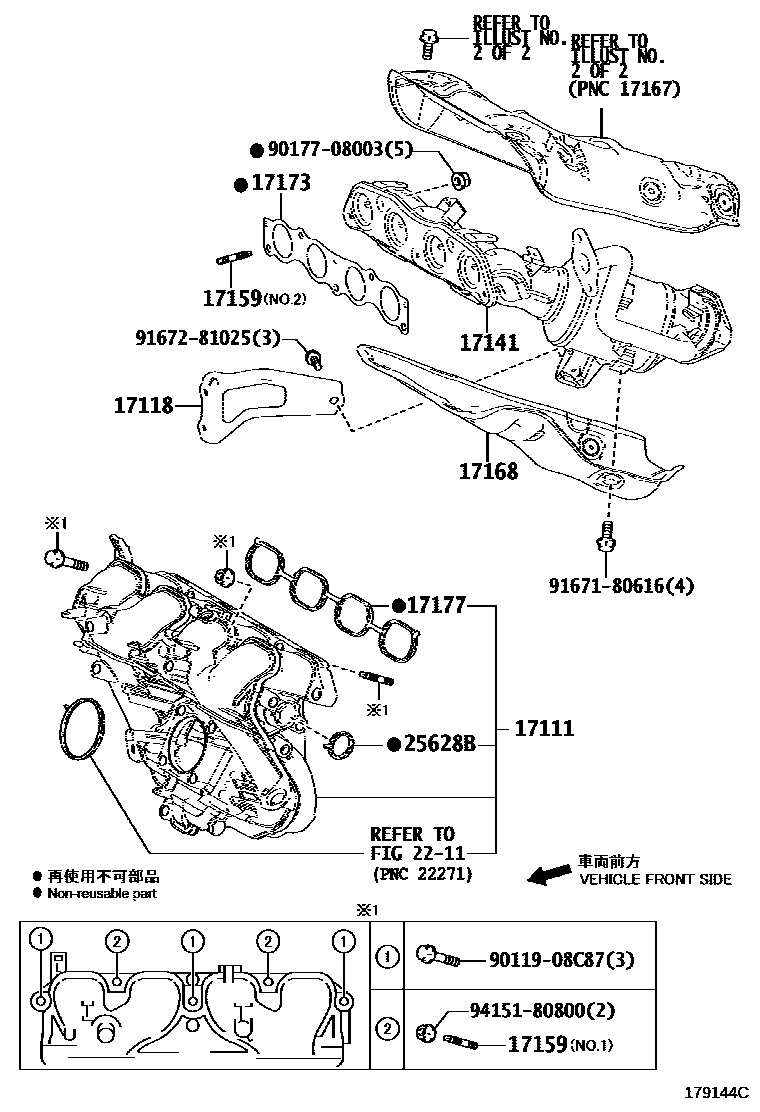

MANIFOLD

17111MANIFOLD, INTAKE

main17120-37110i201511-201812

17118STAY, MANIFOLD

17141MANIFOLD, EXHAUST

main17141-37210i201511-201812

*114=TOYOTA/AT37180Y

*114=*690

*114=TOYOTA/AT37180Y,REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i201812

NO.1

main90126-08052×5i201812

NO.2

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-37010i201511-201812

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-37050i201511-201803

2211

25628BGASKET, EGR INLET

main25628-36020i201511-201812

9011908C87

9017708003

9167180616

9167281025

9415180800

14 parts on this diagram · 2 diagrams in section
