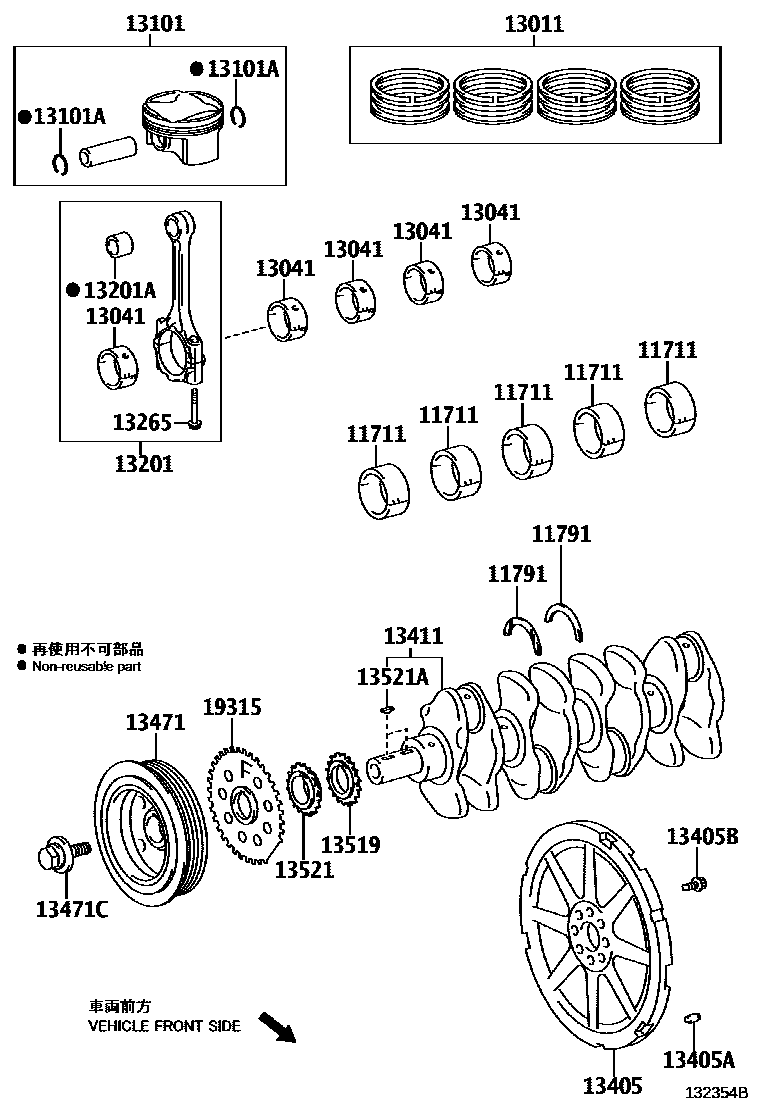

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
13011RING SET, PISTON
STD
STD,REGULATION COMPLIANCE LABEL & NAME PLATE-JAPAN/GENERAL LABEL & ID PLATE&SUB MUFFLER-WITHOUT(HEAT RECYCLE)
13041BEARING, CONNECTING ROD
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD,ENGINE-2ZR-FXE(CRUDE)
STD,REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&EXHAUST EMISSION CONTROL-EURO 6B,WITHOUT(ON BOARD DIAGNOSIS)&SUB MUFFLER-WITHOUT(HEAT RECYCLE)
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
(L)
(J)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
