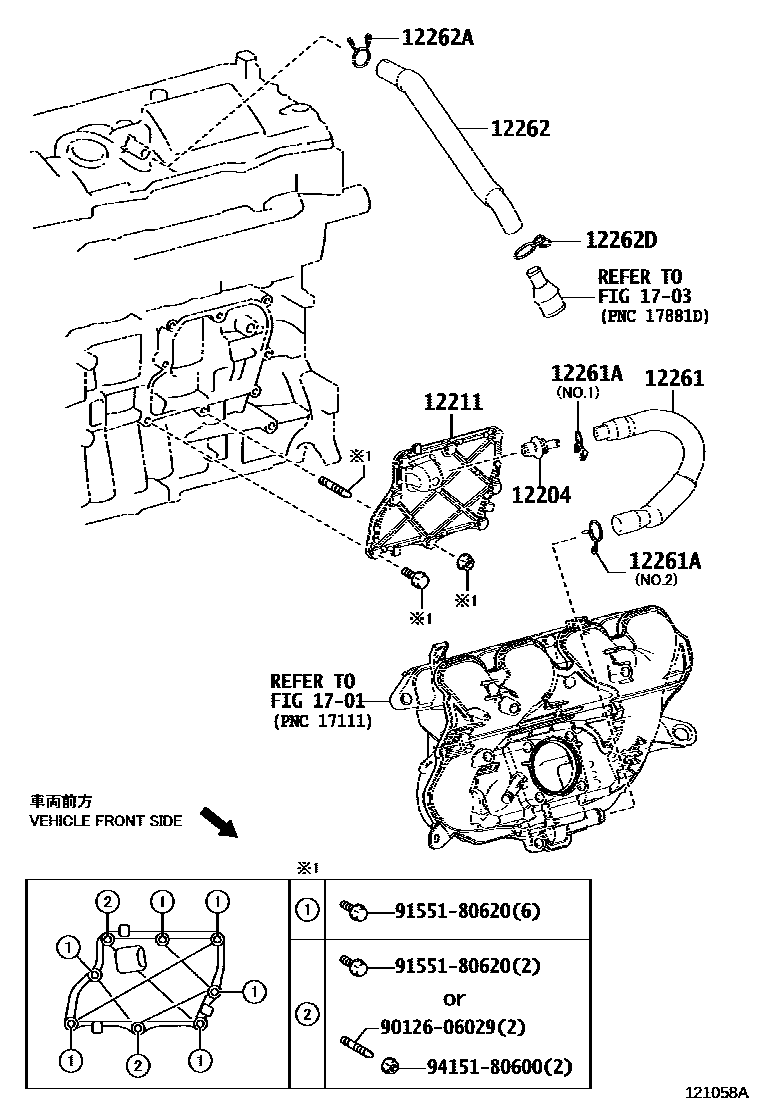

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-37050i2ZRFXE..ZVW5#201511-201812

12211CASE, VENTILATION, NO.1

main12211-37010i2ZRFXE..ZVW50201511-201812

12261HOSE, VENTILATION

main12261-37070i2ZRFXE..ZVW50201511-201812

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-22005i2ZRFXE..ZVW5#201511-201812

NO.2

main90467-15120i2ZRFXE..ZVW50201511-201812

NO.1

12262HOSE, VENTILATION, NO.2

main12262-37060i2ZRFXE..ZVW50201511-201812

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i2ZRFXE..ZVW50201511-201812

12262DCLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i2ZRFXE..ZVW50201511-201812

1701

1703

9012606029

main90126-06029

9155180620

main91551-80620

9415180600

main94151-80600

12 parts on this diagram · 1 diagram in section
