STANDARD TOOL

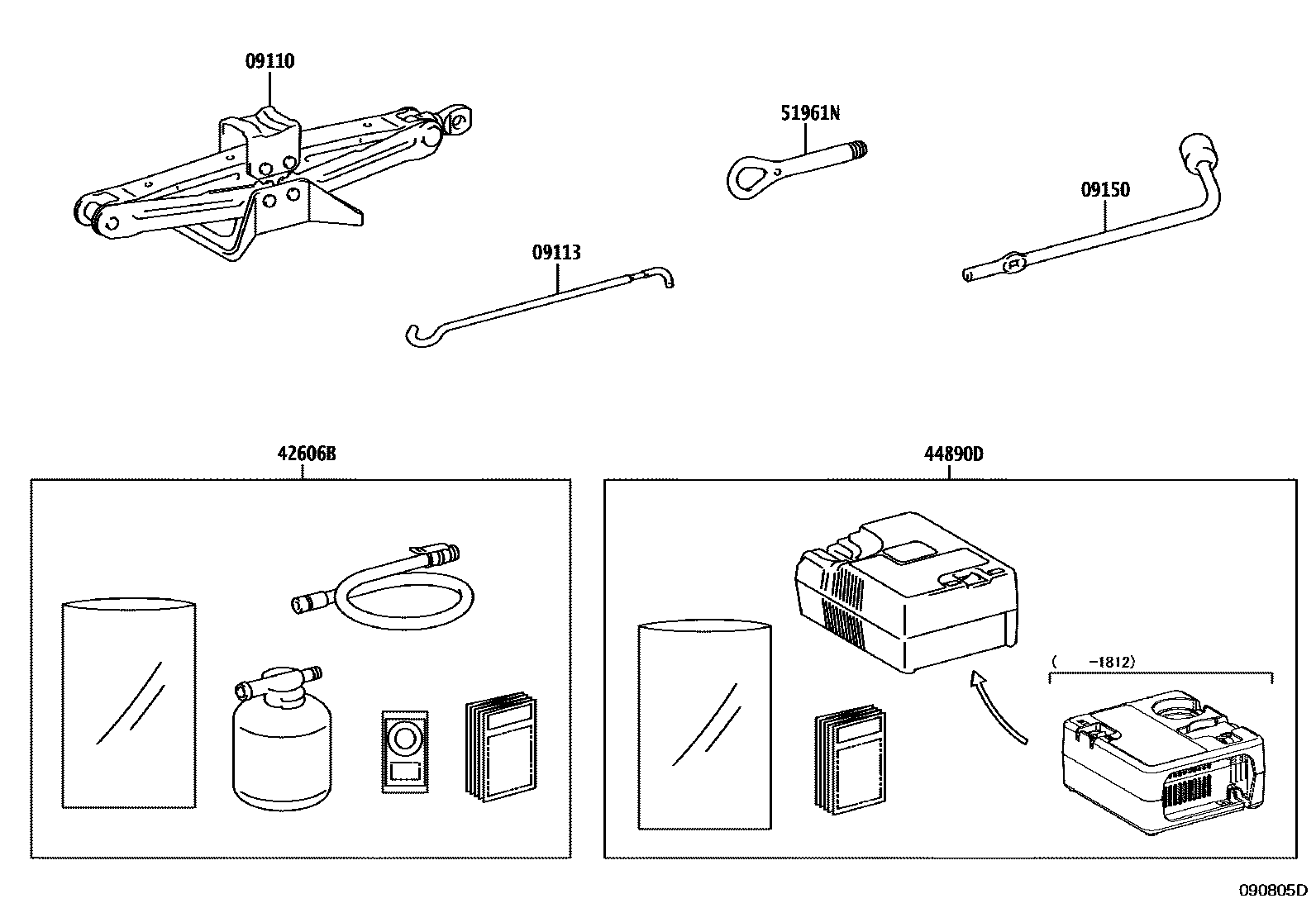

Parts diagram
09110JACK ASSY
main09111-47040i201511-201601
sub09111-47050
main09111-47050i201602-202110
sub09111-47051
main09111-47051i202111
09113HANDLE, JACK
main09113-42030i201511-201812
09150WRENCH, HUB NUT BOX
main09150-42010i201511-201812
42606BREPAIR KIT, TUBELESS TIRE
main42606-30011i201812
sub42606-42080
main42606-47130i201511-201812
SPARE TIRE-GROUND TIRE
main42606-47130i201511-201812
SPARE TIRE-TEMPORARY(T125/70D17)
44890DCOMPRESSOR ASSY, AIR
main44890-12011i202110
BRAZIL SPEC&SPARE TIRE-TEMPORARY(T125/70D17)
sub44890-42050
main44890-30030i201812-202109
SPARE TIRE-GROUND TIRE
sub44890-30031
main44890-30030i201812-202109
BRAZIL SPEC&SPARE TIRE-TEMPORARY(T125/70D17)
sub44890-30031
main44890-47070i201511-201812
SPARE TIRE-GROUND TIRE
51961NHOOK, TRANSPORT
main51960-47030i201903
main51961-47010i201511-201903

6 parts on this diagram · 1 diagram in section
