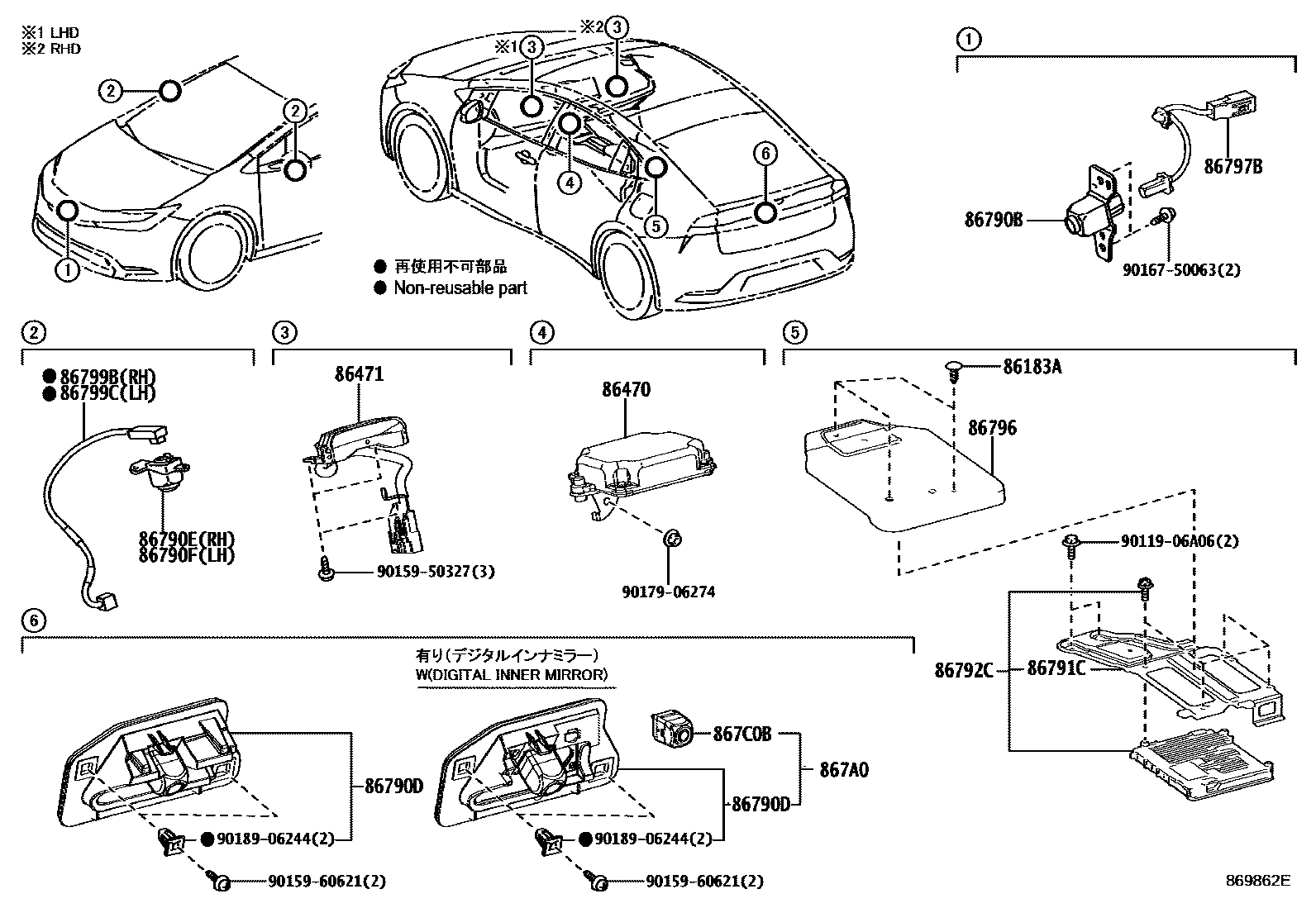

CAMERA & REAR MONITOR DISPLAY

86183ACLIP(FOR AUDIO RACK COVER)

86470COMPUTER ASSY, DRIVER MONITOR

main86470-47010iMXWH61202303-202506

TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC

86471CAMERA, DRIVER MONITOR

main86471-42010iMXWH61¥17,600202303

TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC

86790BCAMERA ASSY, TELEVISION, FR

86790DCAMERA ASSY, TELEVISION, RR

main867B0-47060iMXWH61;ZVW60..LHD¥61,400202212

86790ECAMERA ASSY, TELEVISION, SIDE RH

86790FCAMERA ASSY, TELEVISION, SIDE LH

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

86792CCOMPUTER, PARKING ASSIST

86796COVER, COMPUTER PARKING ASSIST

main86796-47020¥2,930

86797BWIRE, PARKING ASSIST

86799BWIRE, TELEVISION CAMERA, RH

86799CWIRE, TELEVISION CAMERA, LH

867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR

main867A0-47020¥50,900

main867A0-47030

867C0BCAMERA ASSY, INNER MIRROR, RR

9011906A06

main90119-06A06¥60

9015950327

main90159-50327¥70

9015960621

main90159-60621¥60

9016750063

main90167-50063¥60

9017906274

main90179-06274¥70

9018906244

main90189-06244¥100

21 parts on this diagram · 1 diagram in section
