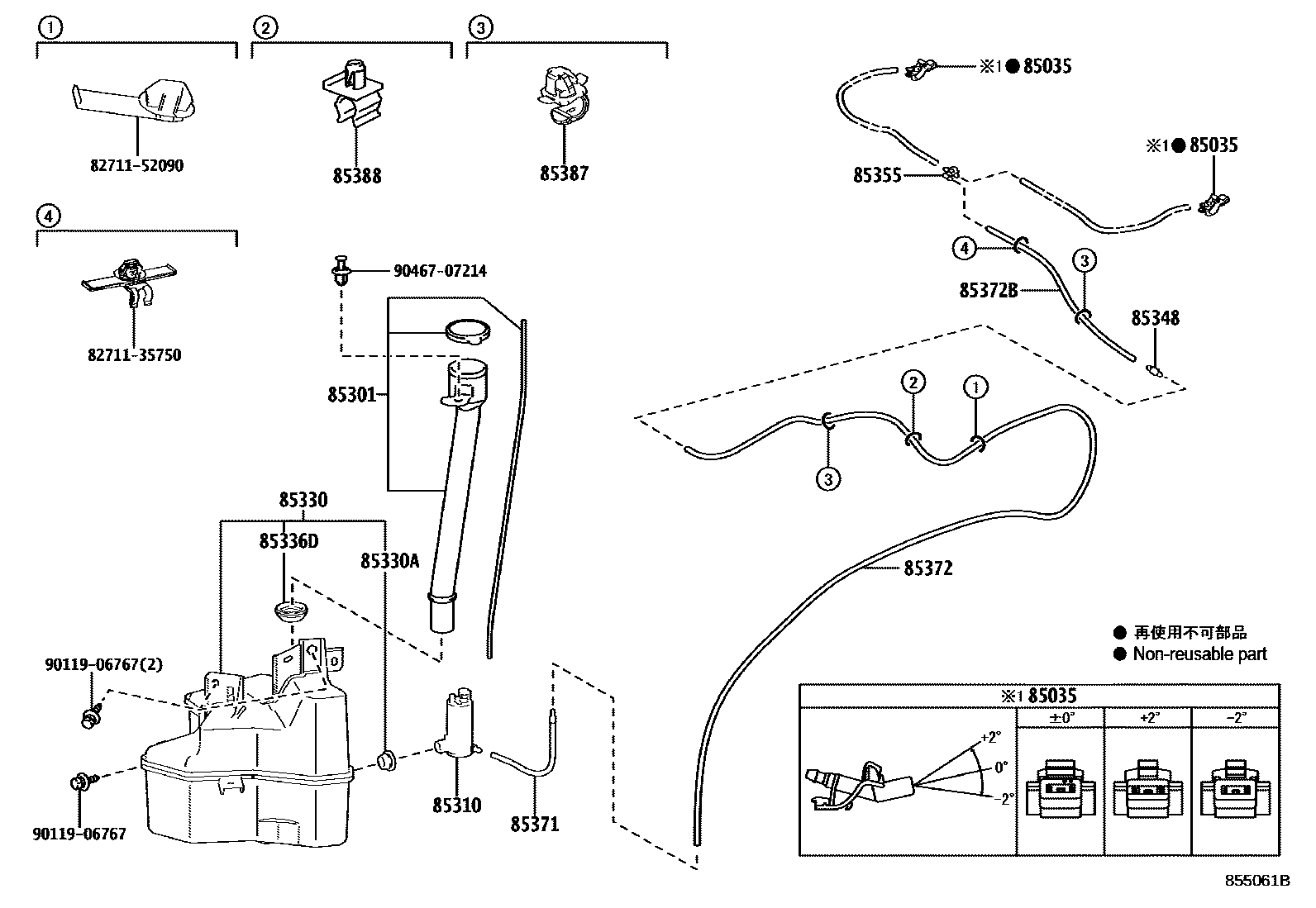

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12360×2i202212

ANGLE 0

main85381-12440×2i202212

ANGLE +2

main85381-33080×2i202212

ANGLE -2

85301INLET SUB-ASSY, WASHER

main85301-47050i202212

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-48030i202212

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&PARKING SUPPORT ALT/BRK-WITHOUT

main85330-48040i202212

PARKING SUPPORT ALT/BRK-WITHOUT

85330JAR ASSY, WINDSHIELD WASHER

main85315-47270i202212

PARKING SUPPORT ALT/BRK-WITHOUT

main85315-47290i202212

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&PARKING SUPPORT ALT/BRK-WITHOUT

85330ABUSH, WINDSHIELD WASHER JAR

main90069-50012i202212

85336DPACKING, WINDSHIELD WASHER JAR

main85336-47270i202212

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-02650i202212

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02650i202212

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46263i202212

L=259,PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITHOUT

main90069-46264i202212

L=307

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46220i202212

L=1856

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-46210i202212

L=483

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-12040×2i202212

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85371-0A010i202212

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

9011906767

main90119-06767

9046707214

main90467-07214

17 parts on this diagram · 2 diagrams in section
