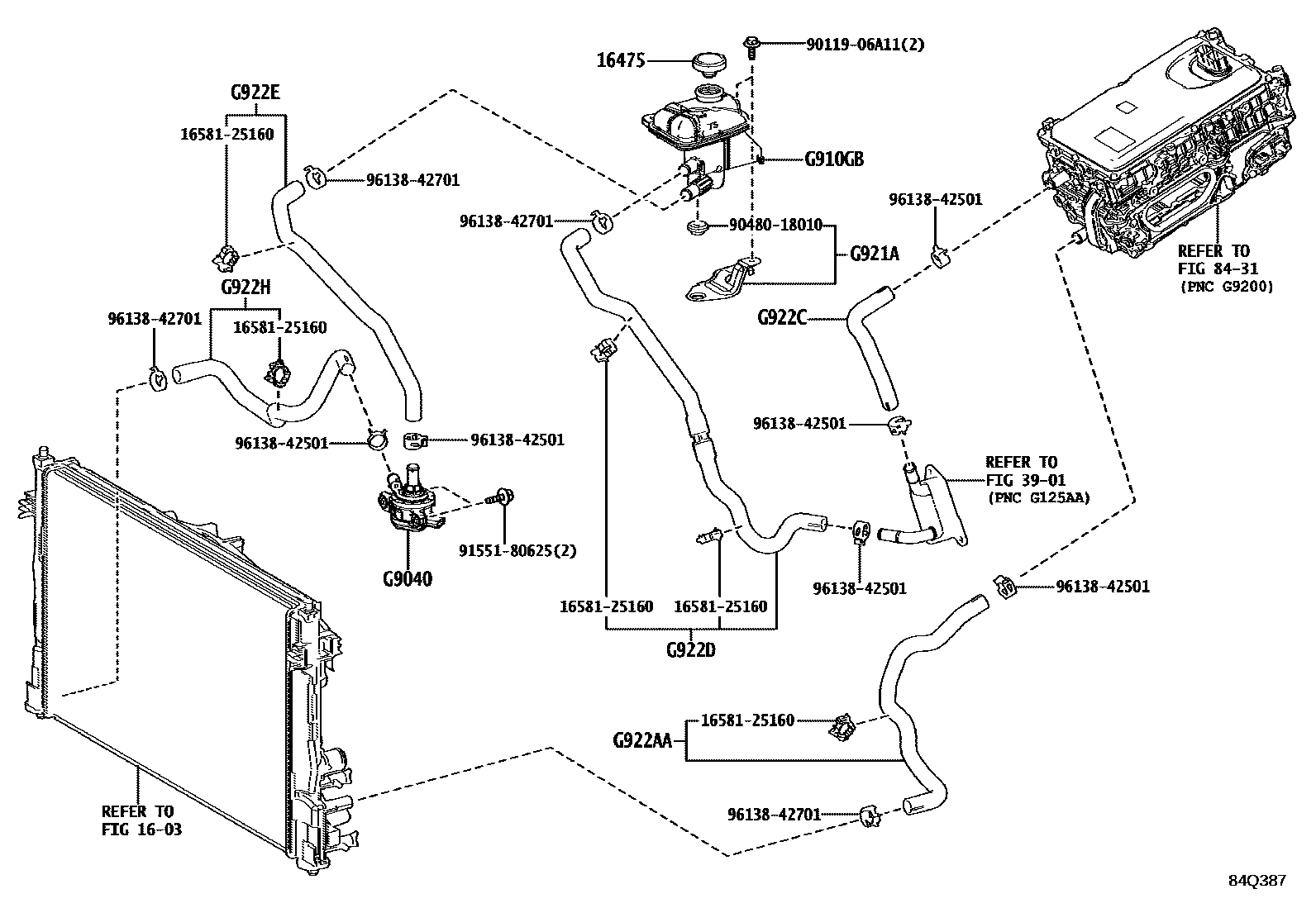

INVERTER COOLING

0001 1 0002 1

1603

16475CAP, RESERVE TANK

main16475-28140iM20AFXS,2ZRFXE..MXWH61,ZVW60202212

3901

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047020iMXWH61,ZVW60202212

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G16010iZVW60202212

mainG910G47010iMXWH61202303

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H247010iMXWH61202303

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A16020iZVW60202212

mainG922A47030iMXWH61202303

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C16010iZVW60202212

mainG922C16020iMXWH61202303

G922DHOSE, INVERTER COOLING OUTLET, NO.2

mainG922D16010iZVW60202212

mainG922D47010iMXWH61202303

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E16030iZVW60202212

mainG922E47040iMXWH61202303

G922HHOSE, HYBRID RADIATOR INLET

mainG922H16010iZVW60202212

mainG922H47040iMXWH61202303

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

9011906A11

main90119-06A11

9048018010

main90480-18010

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

18 parts on this diagram · 2 diagrams in section
