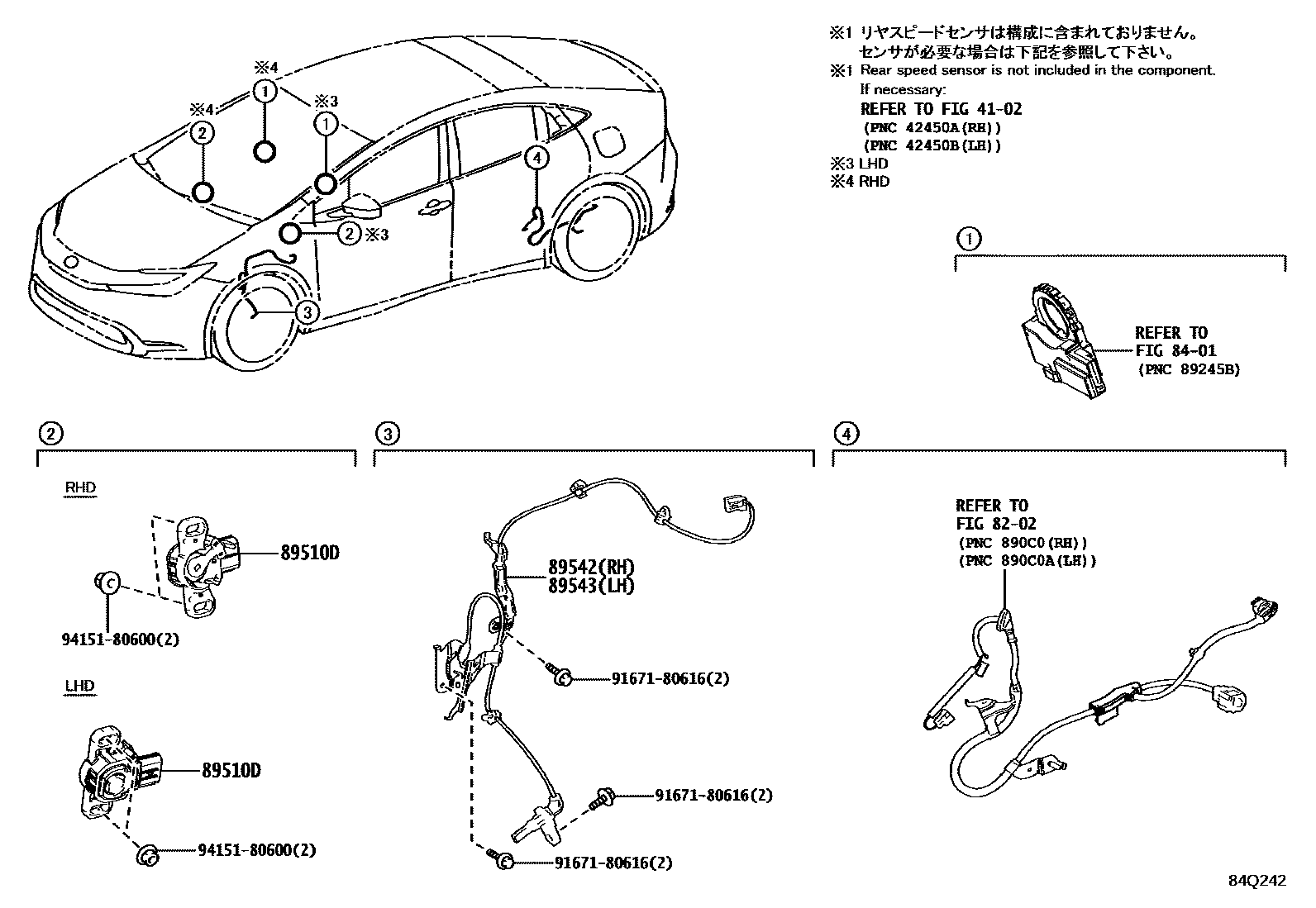

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42010iMXWH61,ZVW60..LHD202501

main89510-42020iMXWH61,ZVW60..RHD202501

main89510-47030iMXWH61,ZVW60..RHD202212-202501

main89510-47040iMXWH61,ZVW60..LHD202212-202501

89542SENSOR, SPEED, FRONT RH

main89542-47050iMXWH61,ZVW60202212

89543SENSOR, SPEED, FRONT LH

main89543-47050iMXWH61,ZVW60202212

9167180616

main91671-80616

9415180600

main94151-80600

8 parts on this diagram · 1 diagram in section
