SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1ENGINE ROOM RELAY BLOCK 0006 1COWL 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1INSTRUMENT PANEL 0010 1CONSOLE BOX 0011 1CONSOLE BOX 0012 1STEERING 0013 1SEAT 0014 1DOOR & ROOF 0015 1FLOOR & LUGGAGE 1/2 0016 1FLOOR & LUGGAGE 2/2 0017 1FLOOR RELAY BLOCK

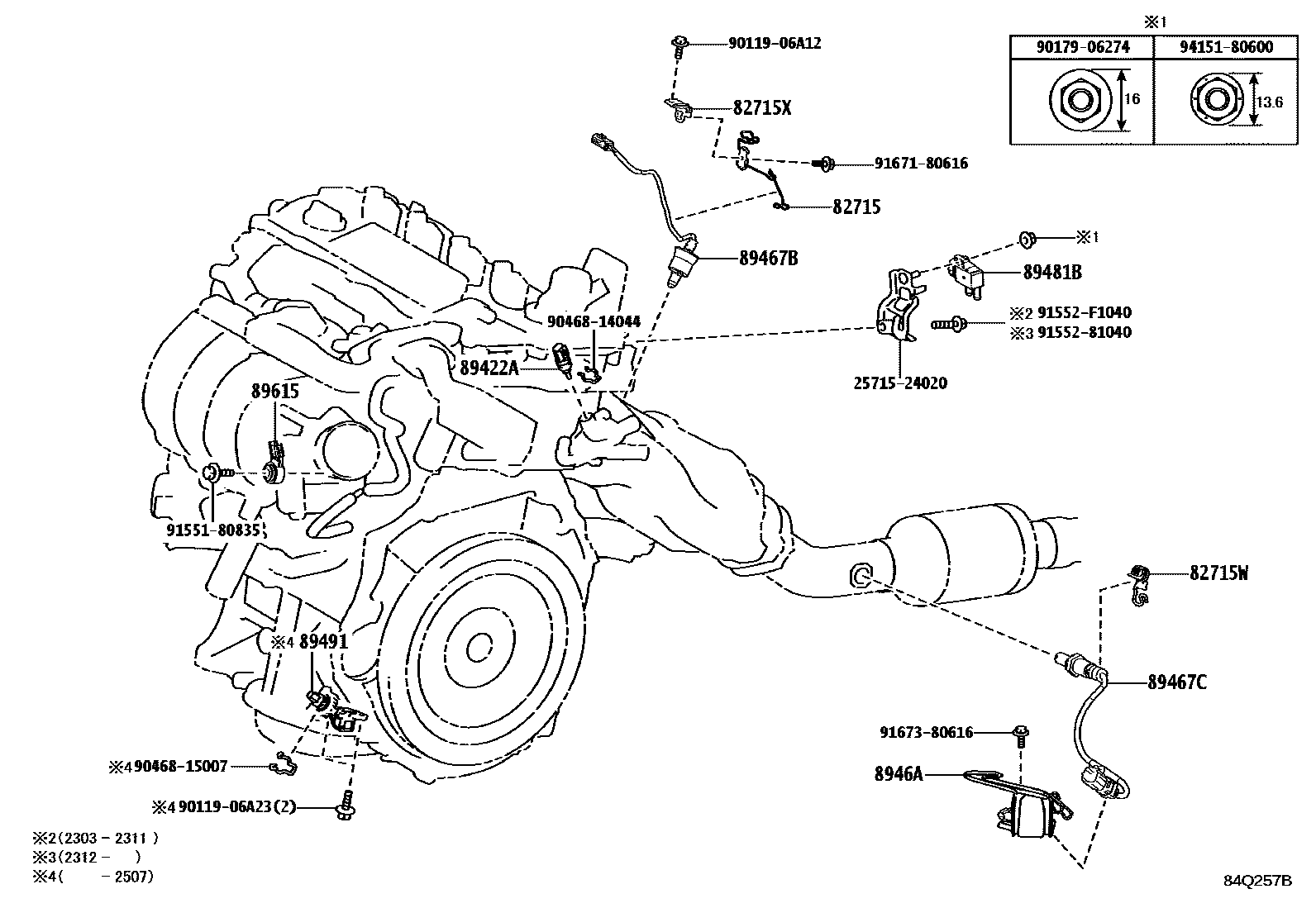

82715BRACKET,WIRING HARNESS CLAMP

main82715-12V90iMXWH61202303

main82715-47680iZVW60202212

82715WBRACKET, WIRING HARNESS CLAMP

main82729-20040iMXWH61,ZVW60202212

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-12X50iMXWH61202303

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMXWH61202303

89467BSENSOR, AIR FUEL RATIO

main89467-12340iZVW60202212

main89467-47040iMXWH61202303

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-47050iMXWH61202303

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-47010iMXWH61,ZVW60202212

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-K0010iMXWH61202303

89491SENSOR, ENGINE OIL LEVEL

main89491-28091iZVW60202212

main89491-33052iMXWH61202303-202507

89615SENSOR, KNOCK CONTROL

main89615-20090iMXWH61,ZVW60202212

2571524020BRACKET, EMISSION CONTROL VALVE

main25715-24020

9011906A12

main90119-06A12

9011906A23

main90119-06A23

9017906274

main90179-06274

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9155281040

main91552-81040

91552F1040

main91552-F1040

9167180616

main91671-80616

9167380616

main91673-80616

9415180600

main94151-80600

22 parts on this diagram · 17 diagrams in section
