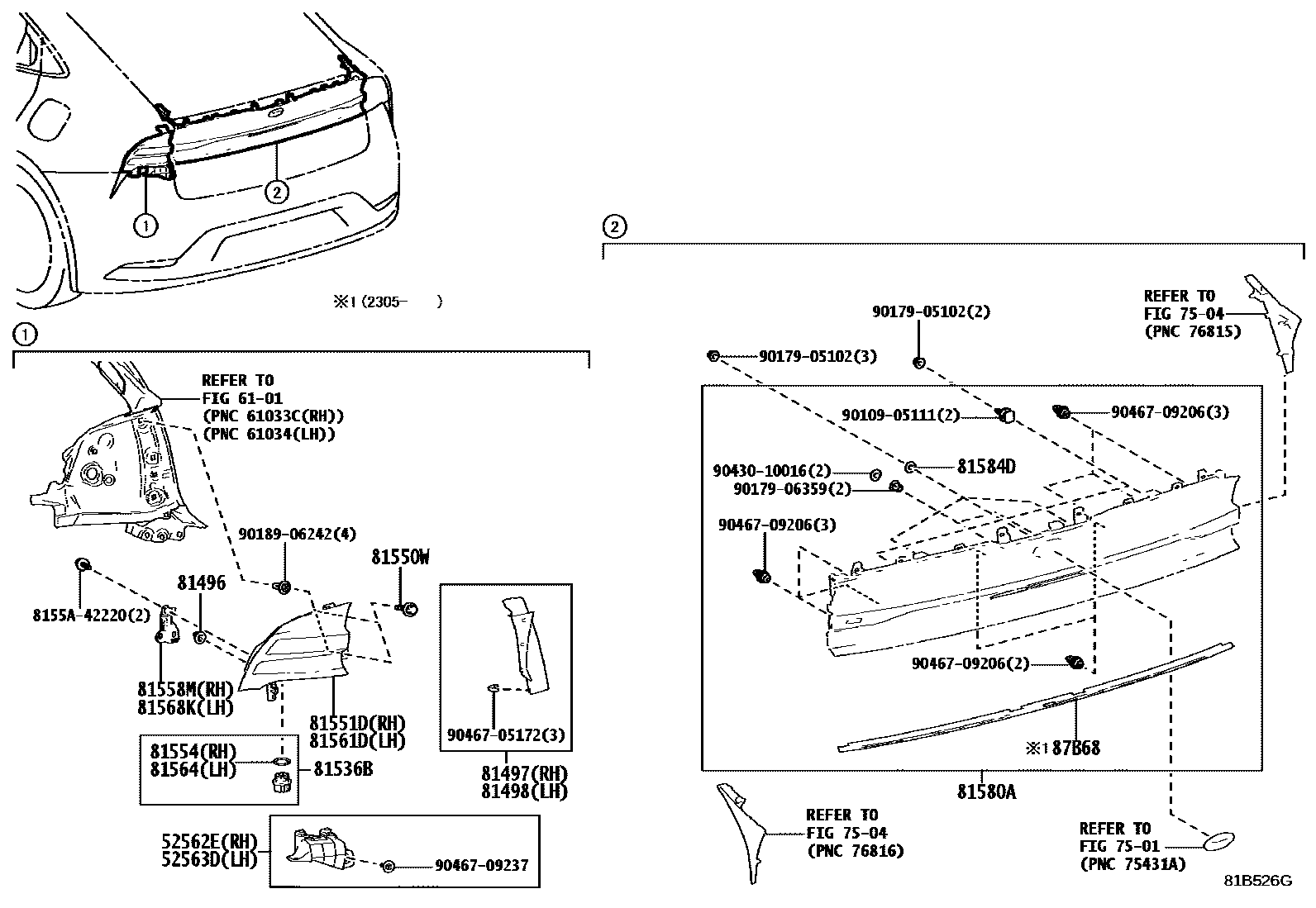

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-47030iMXWH61,ZVW60202212

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-47030iMXWH61,ZVW60202212

6101

7501

7504

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iMXWH61,ZVW60202212

81497COVER, REAR COMBINATION LAMP, RH

main81497-47050iMXWH61,ZVW60202212

81498COVER, REAR COMBINATION LAMP, LH

main81498-47050iMXWH61,ZVW60202212

81536BLED, REAR TURN SIGNAL LAMP

main81536-46120×2iMXWH61,ZVW60202212

81550WSCREW(FOR RR COMBINATION LAMP)

main90159-60621×4iMXWH61,ZVW60202212

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-47490iZVW60202212

main81551-47500iMXWH61202303

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81538-42200iMXWH61,ZVW60202212

81558MBRACKET, REAR COMBINATION LAMP, RH

main81558-47490iMXWH61,ZVW60202212

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-47490iZVW60202212

main81561-47500iMXWH61202303

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81538-42200iMXWH61,ZVW60202212

81568KBRACKET, REAR COMBINATION LAMP, LH

main81568-47490iMXWH61,ZVW60202212

81580ALAMP ASSY, REAR

main81580-47090iZVW60202212

main81580-47110iMXWH61..E202303

81584DGASKET, REAR LAMP

main81584-22040×3iMXWH61,ZVW60202212

87B68PROTECTOR

main87268-47050iMXWH61,ZVW60202305

8155A42220

main8155A-42220

9010905111

main90109-05111

9017905102

main90179-05102

9017906359

main90179-06359

9018906242

main90189-06242

9043010016

main90430-10016

9046705172

main90467-05172

9046709206

main90467-09206

9046709237

main90467-09237

28 parts on this diagram · 2 diagrams in section
